Monitor Suspension

Single-Monitor Suspension

• Material: High-strength aluminum alloy without splicing gaps. Standard cantilever length: 800mm, customizable.

• Spring arm length: 900mm, suitable for routing various regular signal cables.

• Applicable monitor size: 19–32 inches.

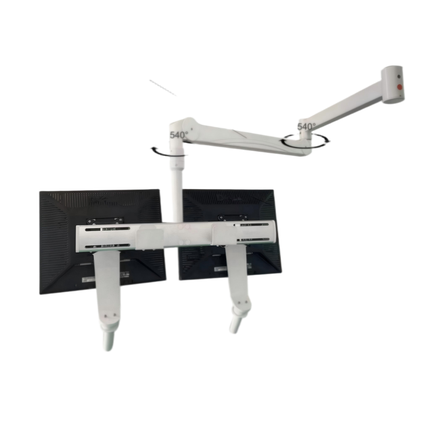

Dual-Monitor Suspension

• Spring Arm Model: AC3000, safe load: 3–28KG.

• Spring arm length: 900mm, suitable for routing various regular signal cables.

• Dual-monitor bracket can be customized according to monitor size, weight and arrangement (vertical / horizontal).

• Two monitors can be arranged vertically or horizontally.

General Introduction for Monitor Suspension

1. Application areas: Endoscopy room, operating room.

2. Material: High-strength aluminum alloy.

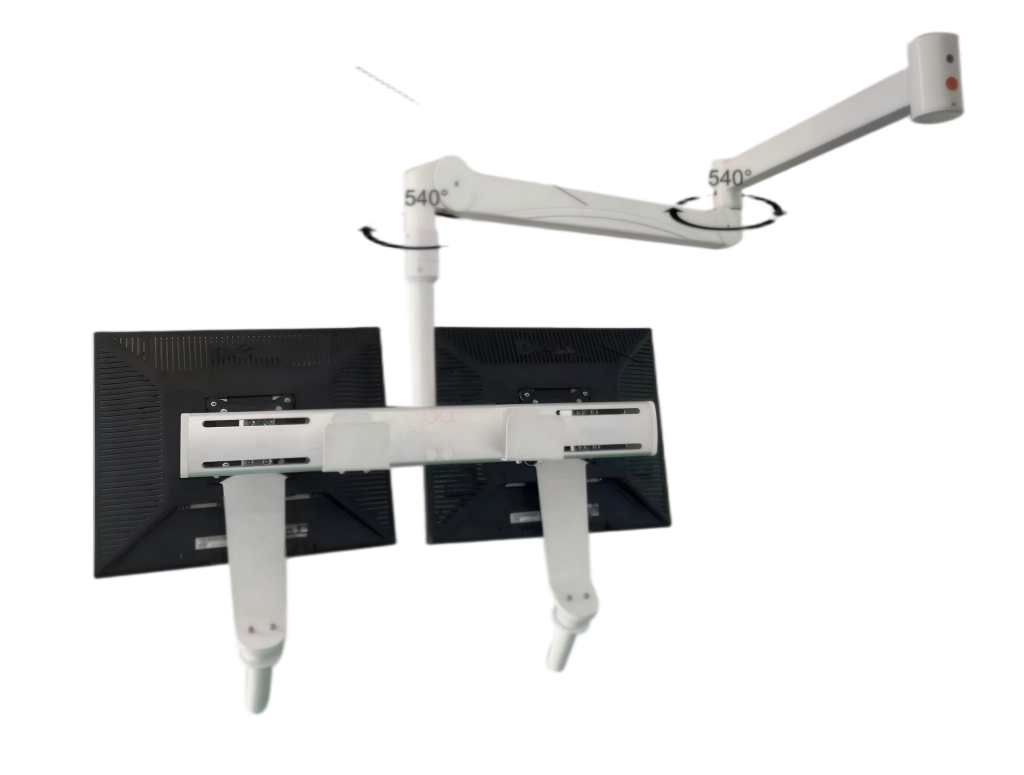

3. Equipped with 540° rotating arms and 340° rotatable monitor bracket, offering wide working range to improve staff efficiency.

4. Stable cantilever fixation ensures no drift during operation, convenient for on-site adjustment and application.

5. No splicing gaps. Safe load capacity of single cantilever: ≤80KG.

Technical Parameters & Configurations

• Basic embedded parts: National standard channel steel as main support; No.5 angle steel for diagonal support.

• Base flange: 300×300mm, thickness 14mm.

• Hanging pipe: Made of high-strength aluminum alloy; standard length 700mm, customizable to target operating room.

• Upper Rotating Arm: Standard length 800mm, customizable. Safe load: 80KG.

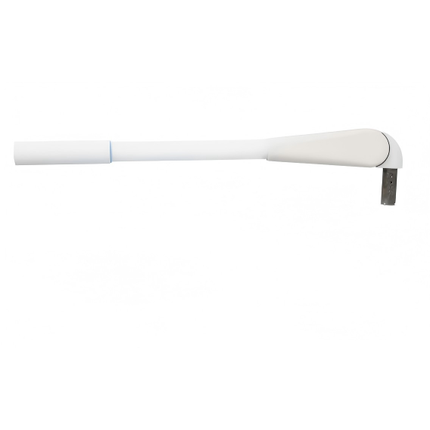

• Lower Spring Arm: Standard length 914mm, customizable.

  Safe Load: AC2000 3–19KG, AC2000U 2–26KG, AC3000 23–38KG.

• Monitor Bracket:

  Single monitor: VESA hole spacing: 100×100mm4; 140×140mm4.

  Dual monitors: Customized bracket based on monitor size, weight and preferred arrangement (vertical/horizontal).

• Handle: 2 pcs autoclavable handles.
