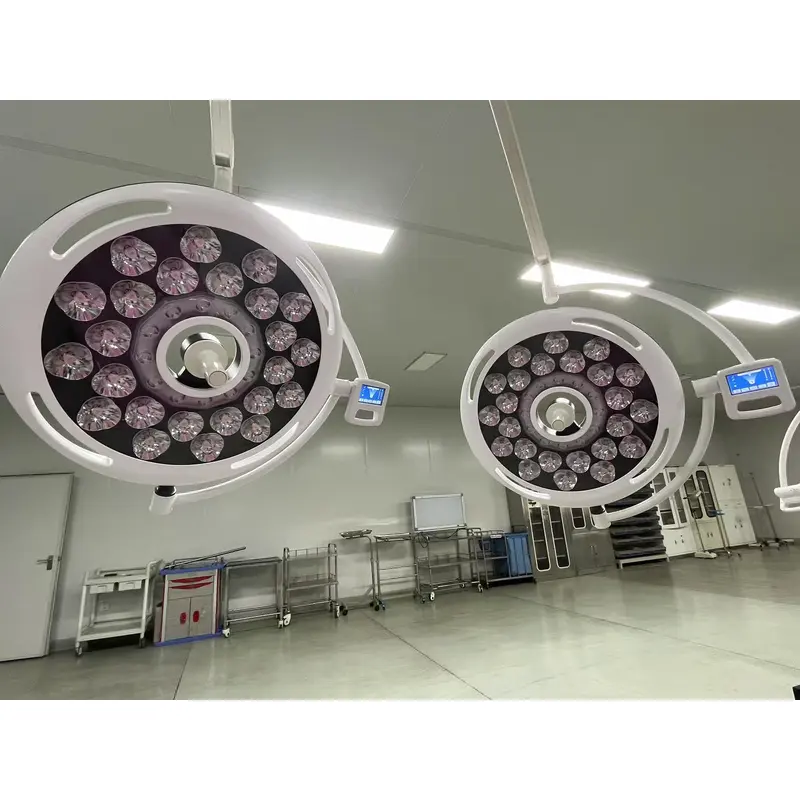

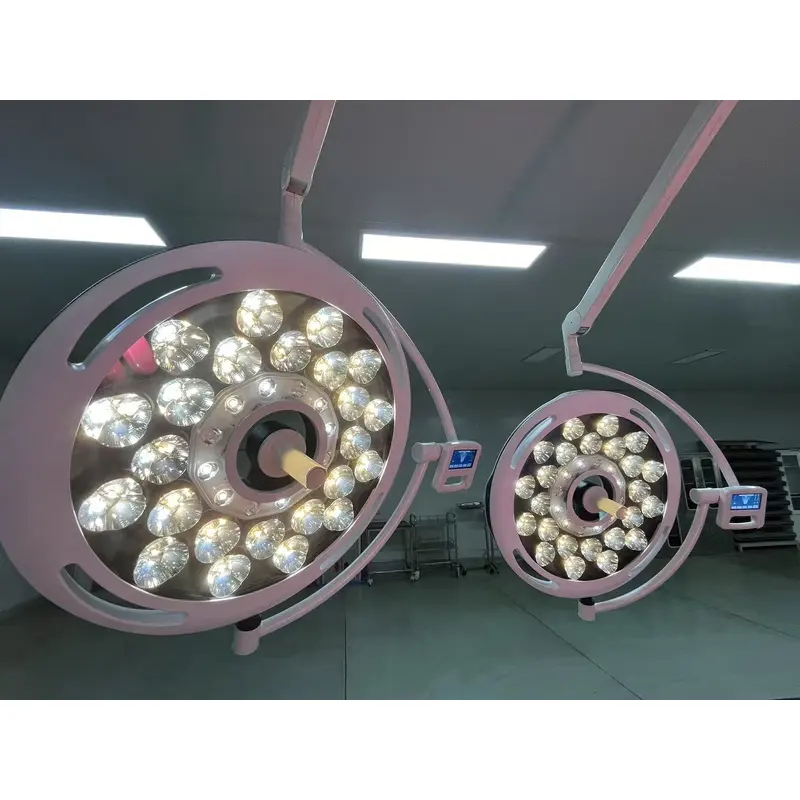

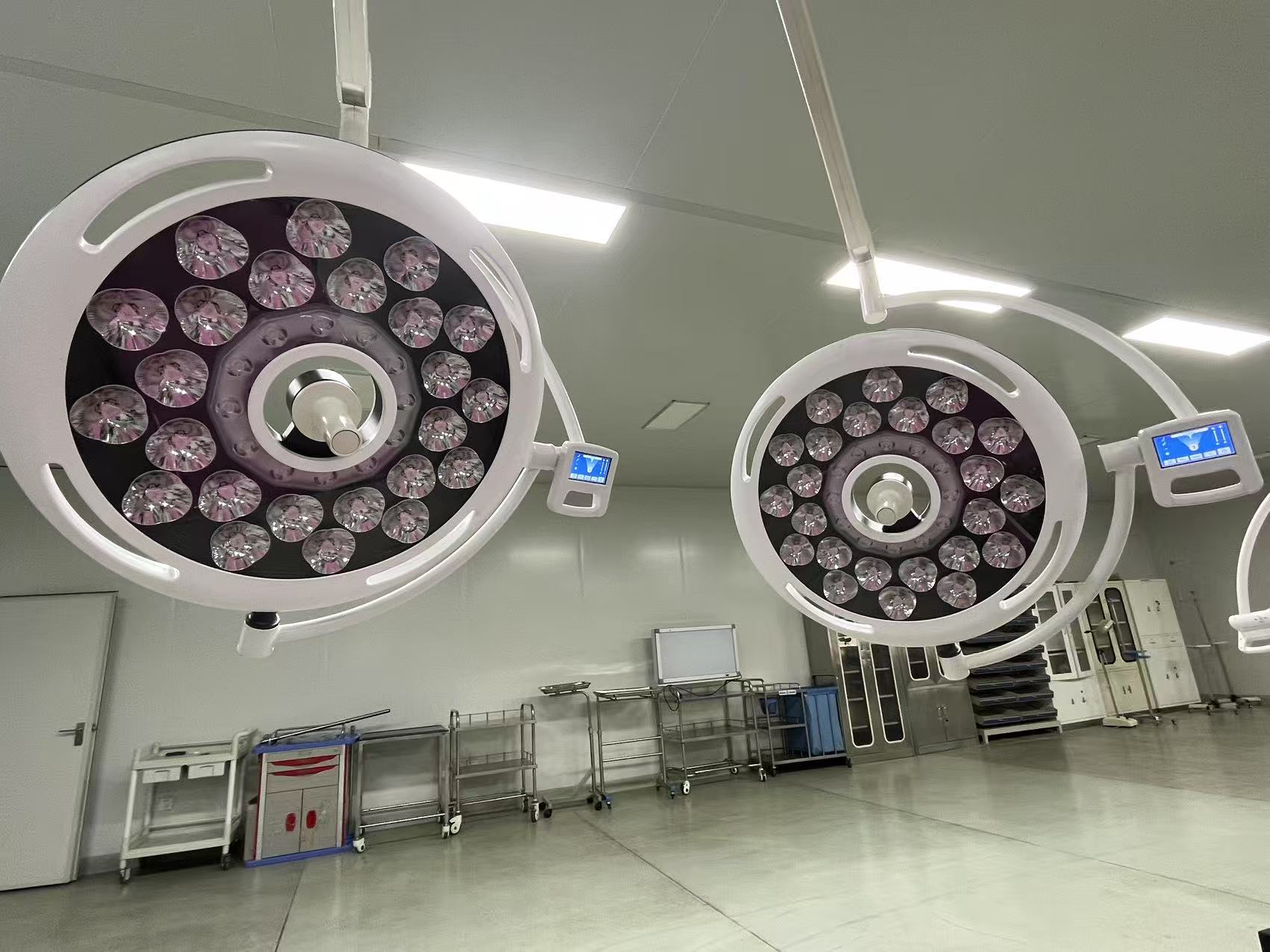

Product Features
⧫ It utilizes an imported LED cold light source, which has low energy consumption and a long service life.

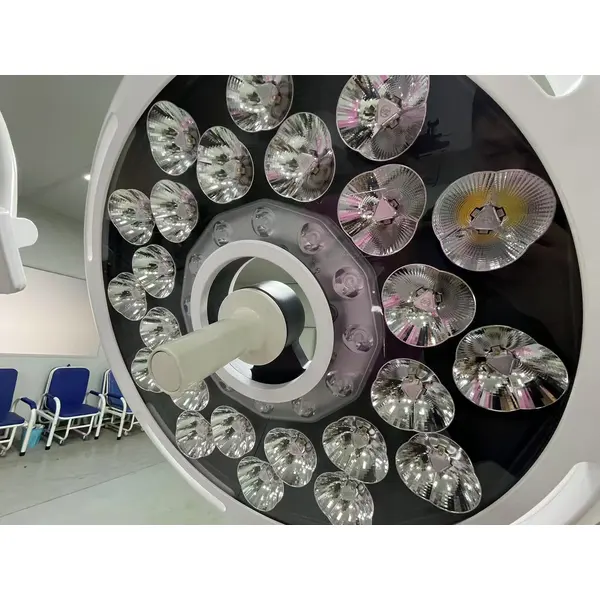

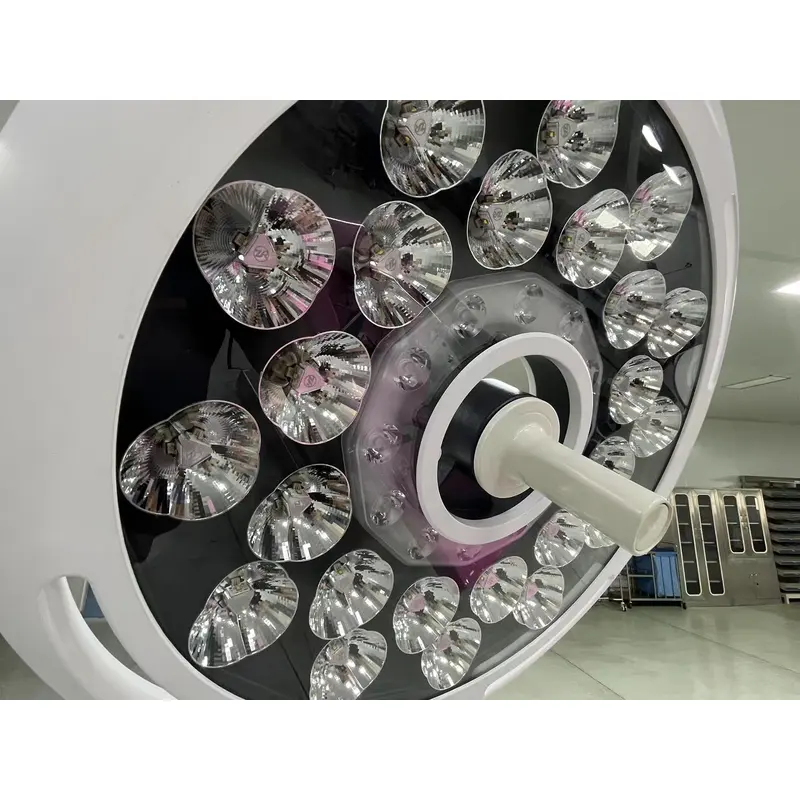

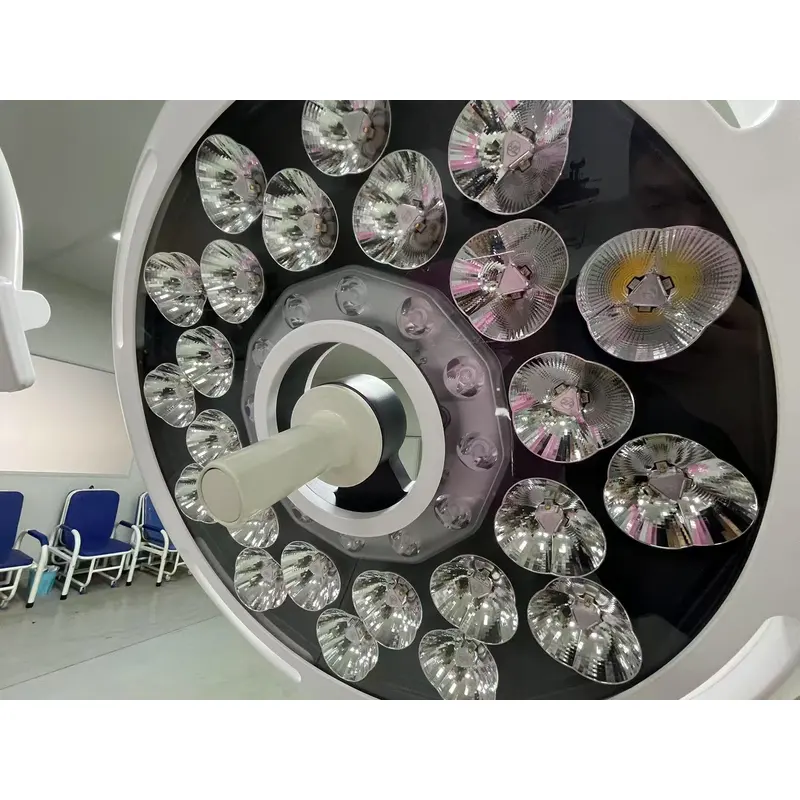

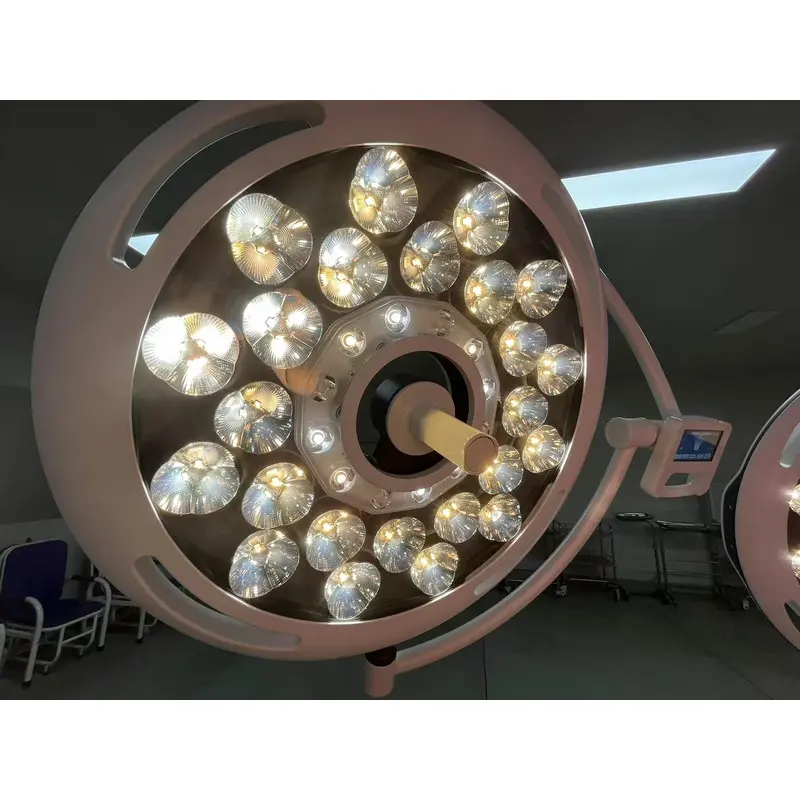

⧫ It features a unique multi-faceted mirror reflector, whose secondary reflection achieves excellent illumination.

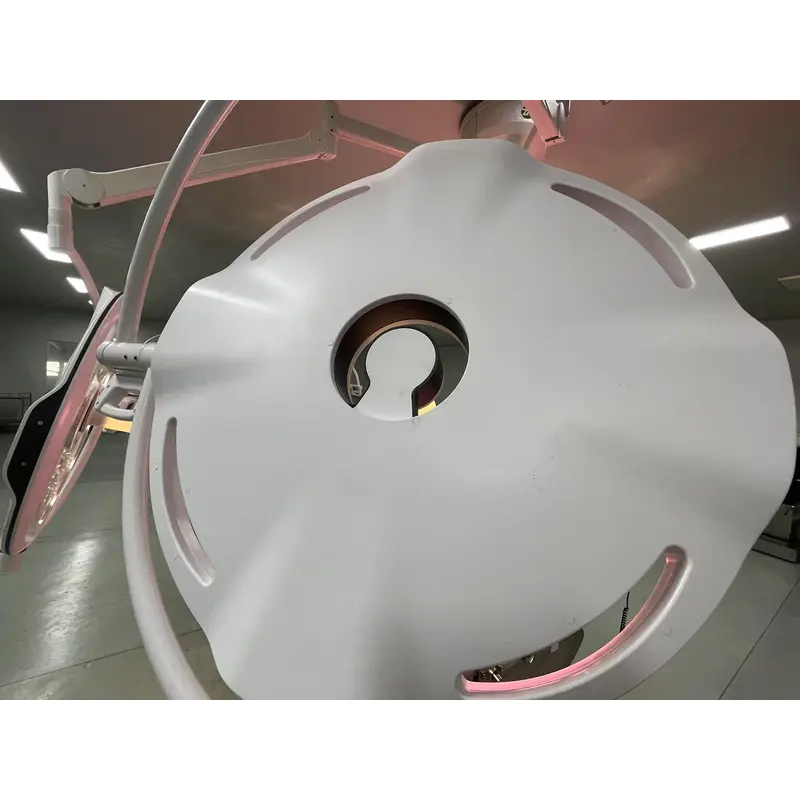

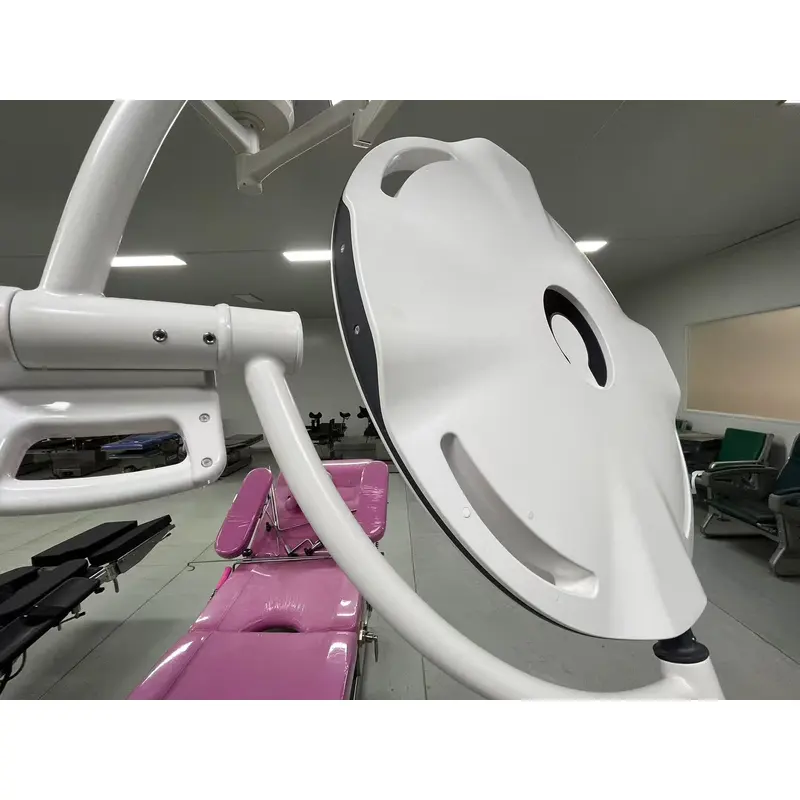

⧫ The center of the lamp head body is hollowed out and includes an integrated handle, achieving the best laminar flow effect.

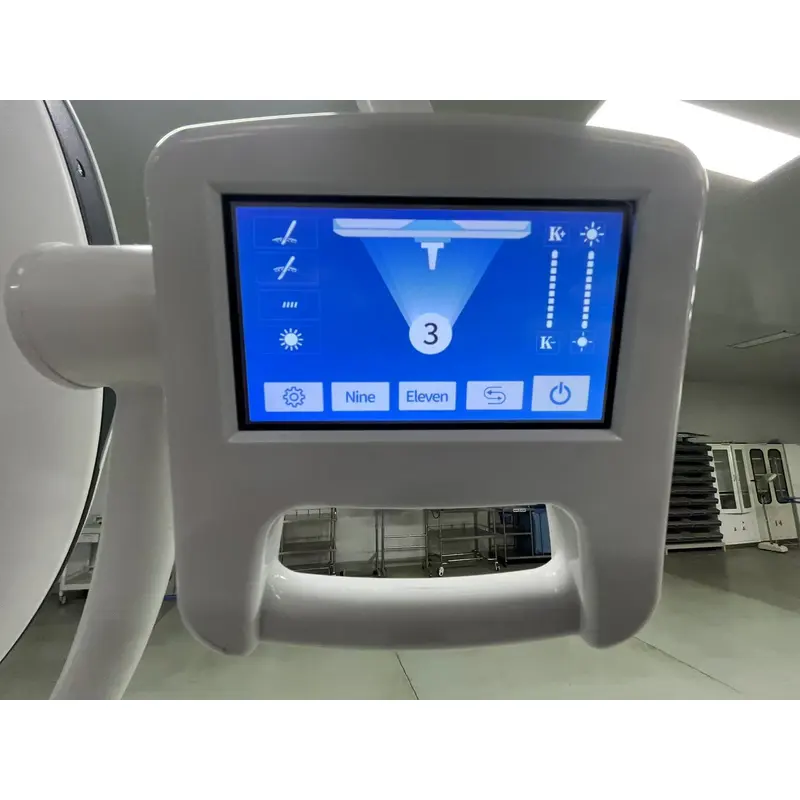

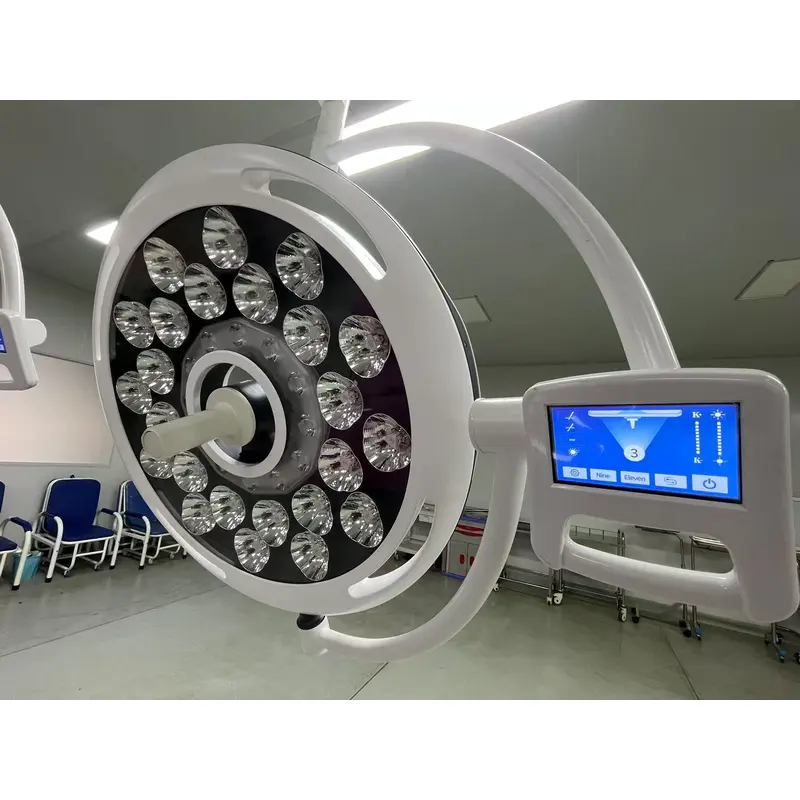

⧫ It utilizes an intelligent LCD touch control screen, with graphical illustrations, which is simple to operate.
⧫ It has a detachable handle for easy cleaning and disinfection.

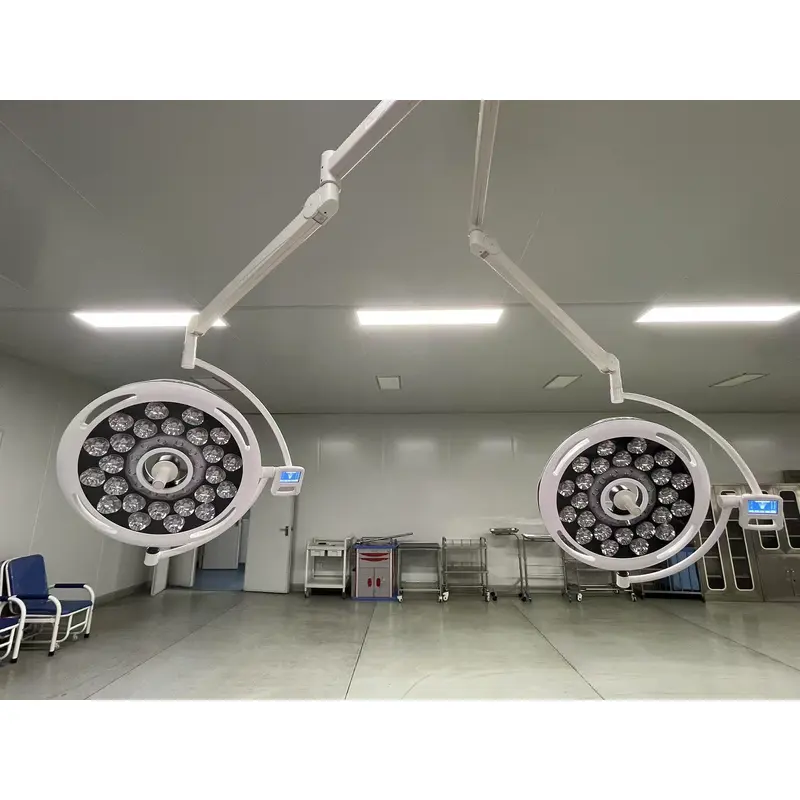

⧫ It has lightweight and flexible balance suspension system, along with integrated suspension technology, enabling precise and
stable positioning.
⧫ Independent control of multiple surgical lighting modes such as normal, superficial, deep cavity, and dim light.
⧫ Both color temperature and brightness are adjustable, with separate controls for R9 and R11 functions.
⧫ The electronic spot adjustment offers 3 levels, allowing the spot size to be changed without changing the illumination
intensity.
⧫ Optional features include lamp cap mutual control, automatic lighting compensation, and wireless remote control.
Lamp holder model | 760 |
Number of LED beads | 84 |
Illuminance | 40,000-160,000 (Lx) |
Color temperature | 3000-6000K |
Light spot diameter | D10 ≥209mm |
Light spot distribution diameter | D50 ≥118mm |
Light beam depth | ≥930mm |
Brightness adjustment | 1-100% |
Color rendering index Ra | ≥95 |
Maximum irradiance | ≤457W/m² |
Head temperature rise of the operator | ≤1℃ |
Temperature rise in the surgical field work area | ≤2℃ |
Operating radius | ≥2200mm |
Working radius | 1600-1800mm |
LED bead power | 3W/3V |
Average service life of LED beads | >60,000h |
