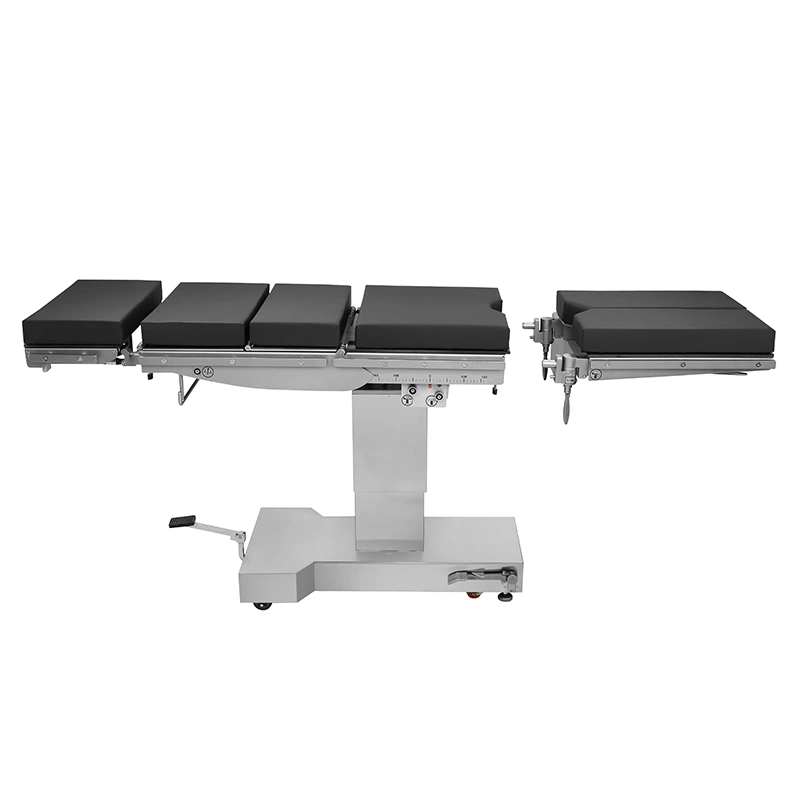

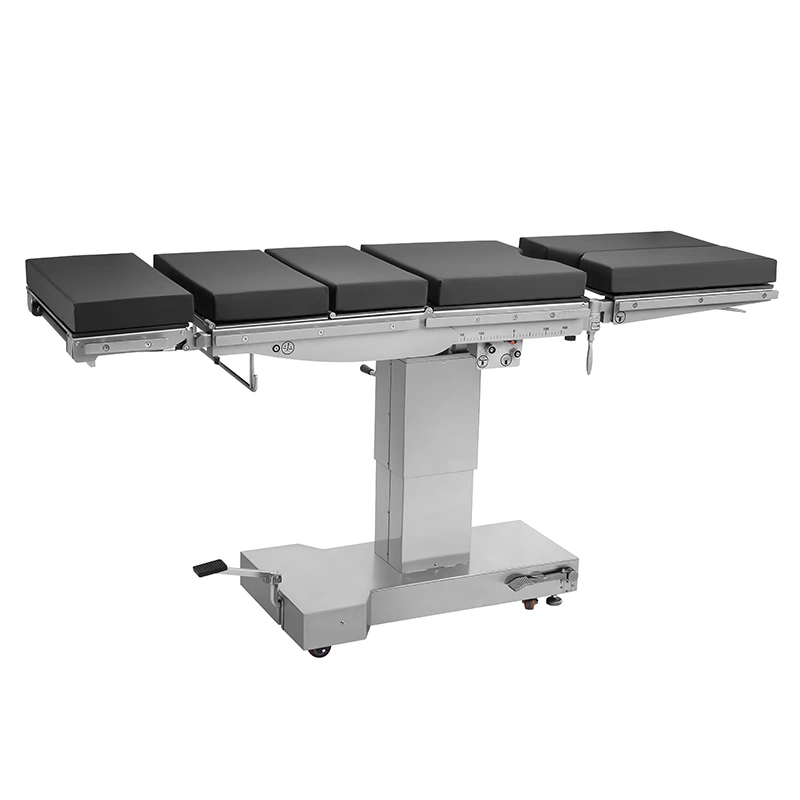

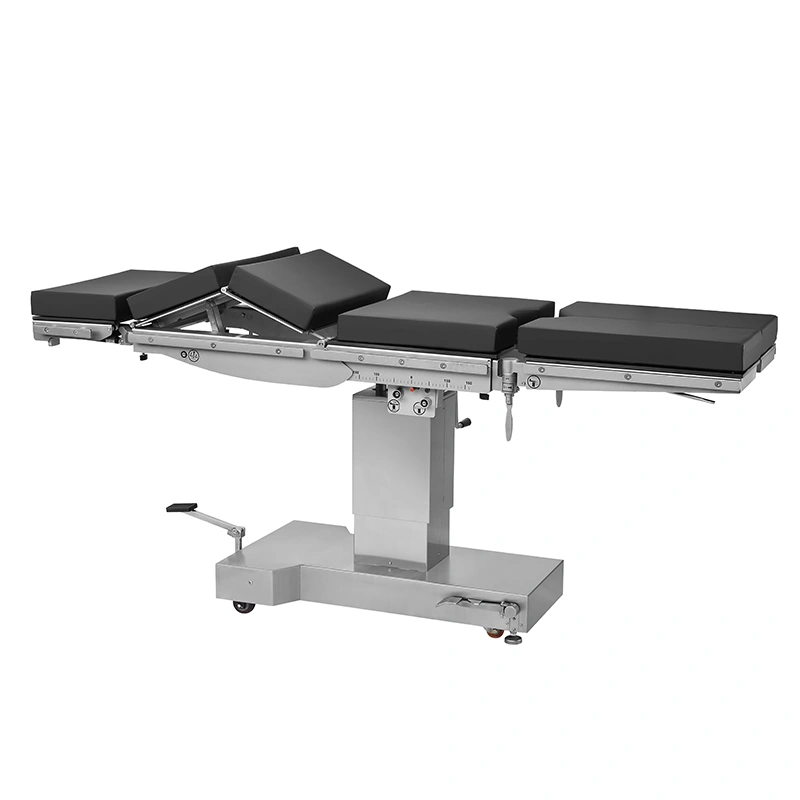

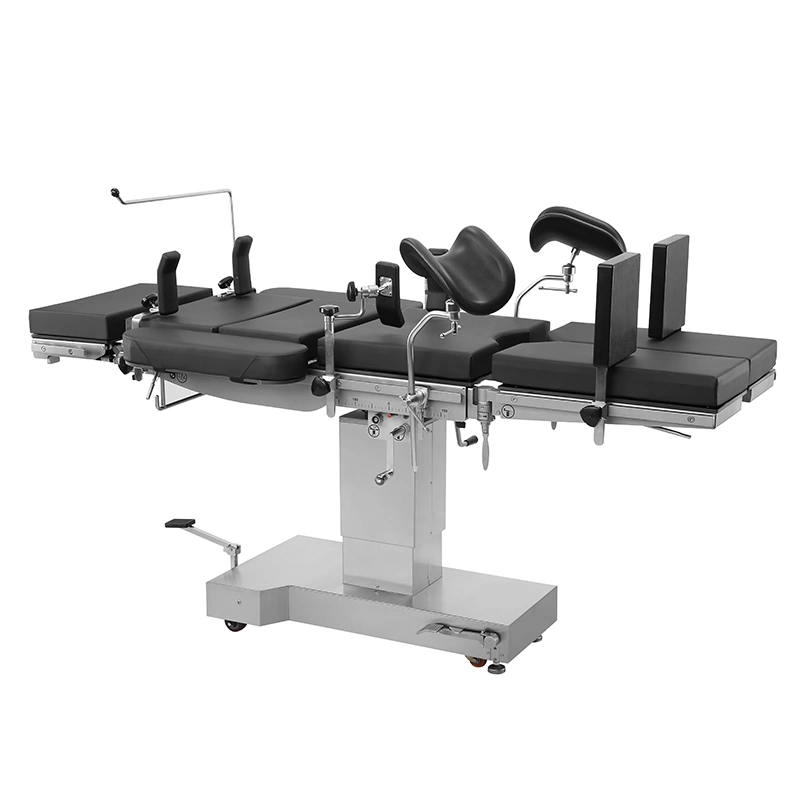

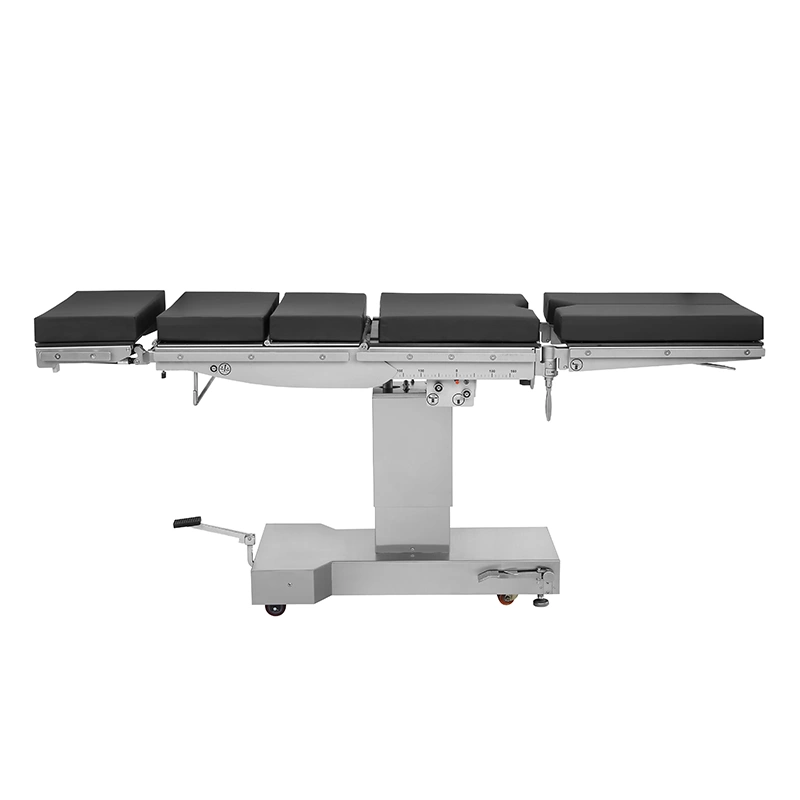

FY700 Manual Hydraulic Operating Table

Manual Hydraulic Operating Table

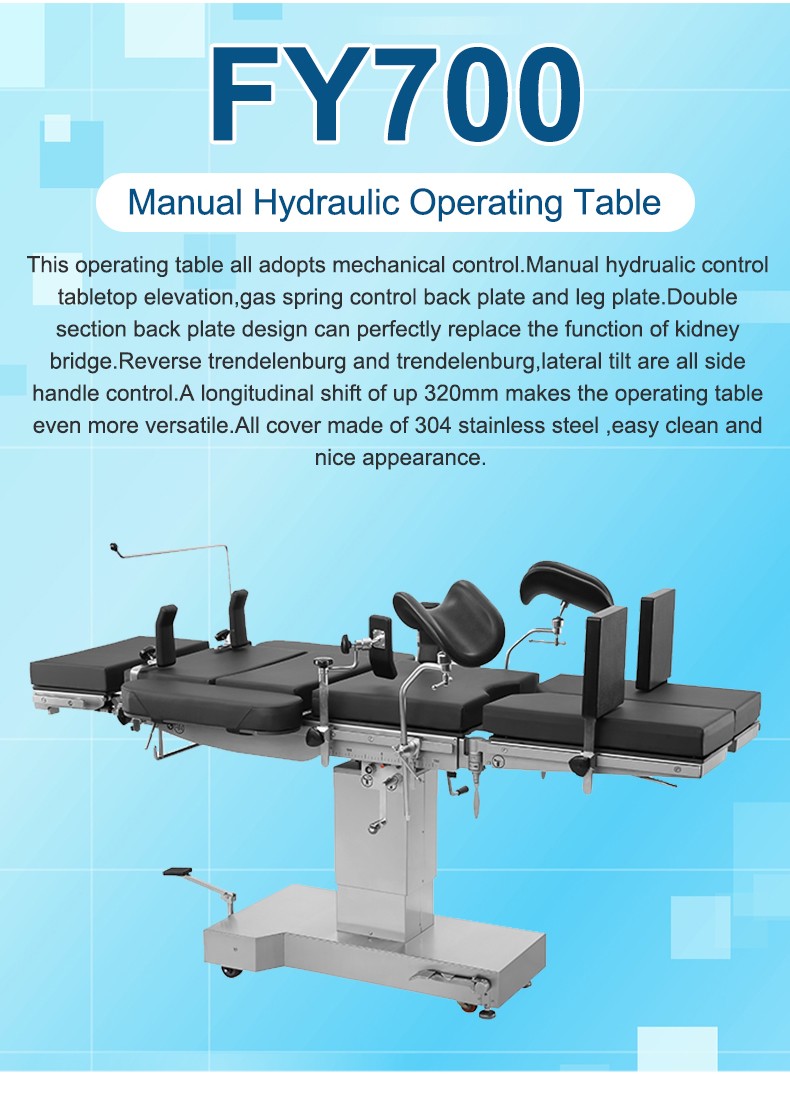

This operating table all adopts mechanical control.Manual hydrualic control tabletop elevation,gas spring control back plate and leg plate.Double section back plate design can perfectly replace the function of kidney bridge.Reverse trendelenburg and trendelenburg,lateral tilt are all side handle control.A longitudinal shift of up 320mm makes the operating table even more versatile.All cover made of 304 stainless steel ,easy clean and nice appearance.

Description

FY700 Prodcut Parameters

1. Table length/width:≥2050/≥520mm
2. Table top minimum/lifting stroke:≤690/≥280mm

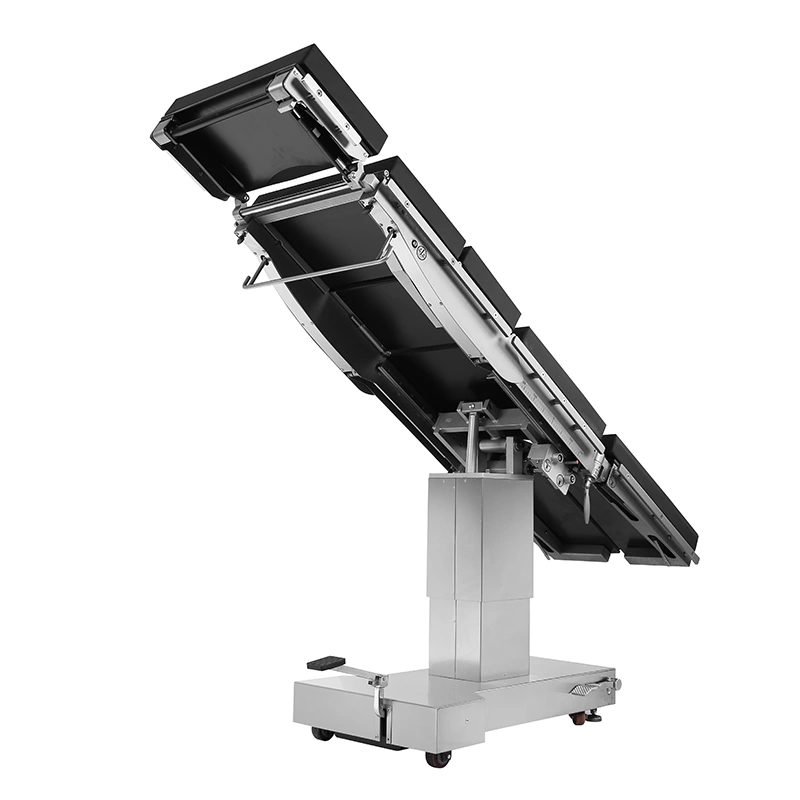

3. Table tilt forward/backward angle:≥32°/≥32°
4. Table tilt left/right angle:≥22°/≥22°

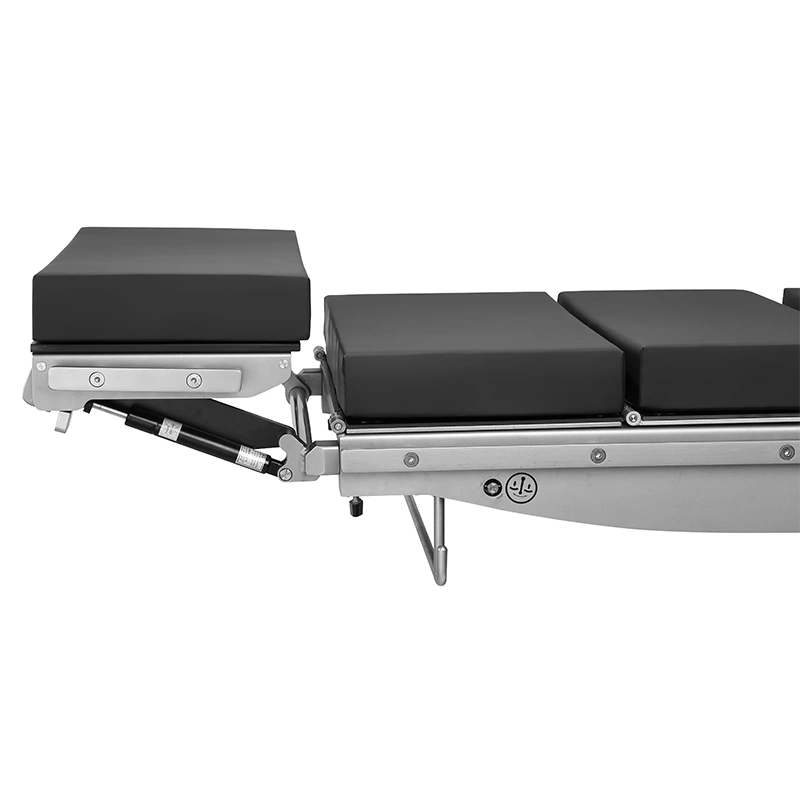

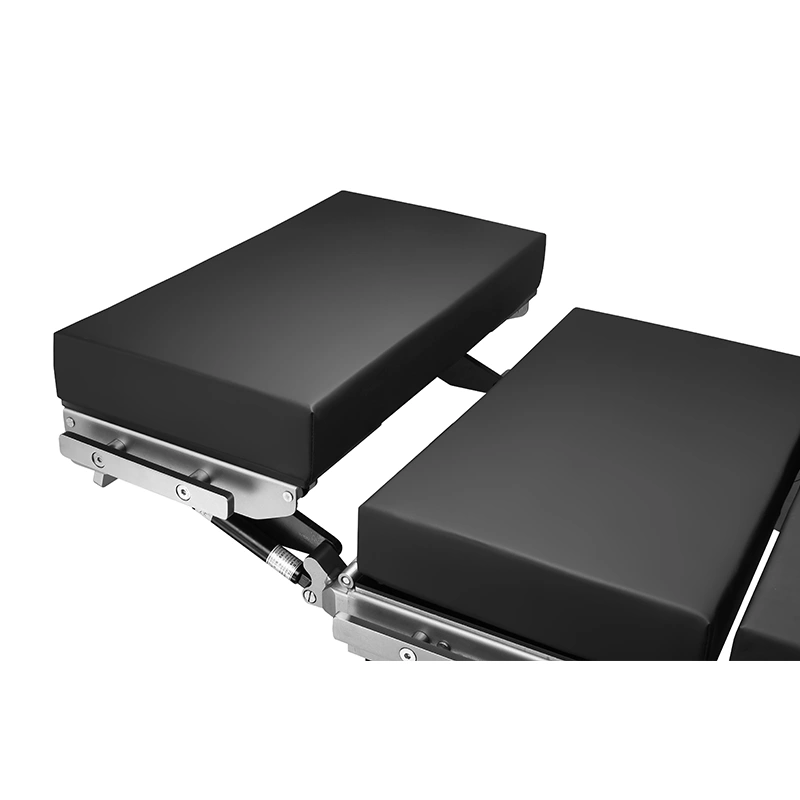

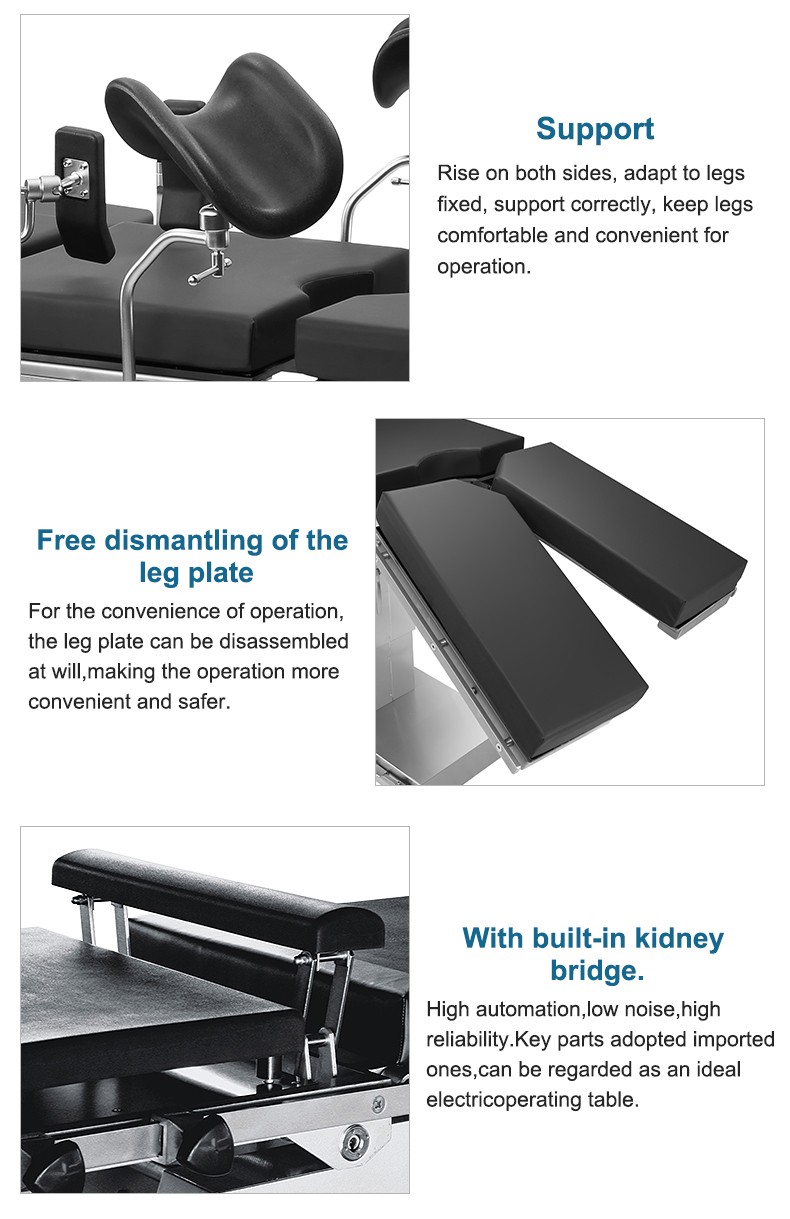

5. Headboard folding up/down/back angle:≥50°/≥60°/≥50°

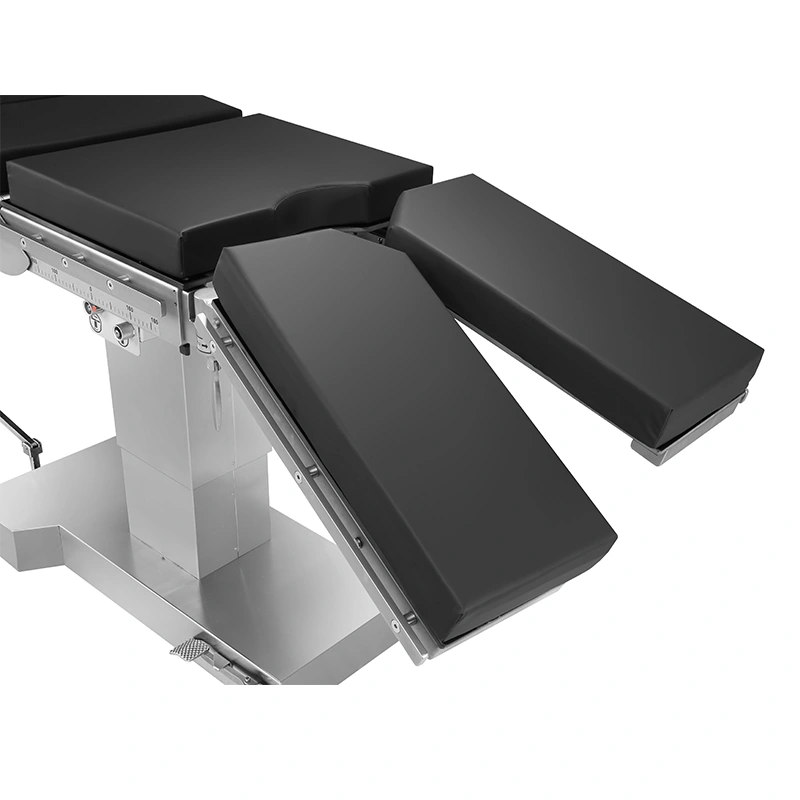

6. Leg board folding up/leg board folding down/ external folding angle:≥20°/≥90°/≥90°
7. Fold back up/fold back down:≥85°/≥28°
8. Waist bridge lift:≥130mm
9. Translation distance:320mm
