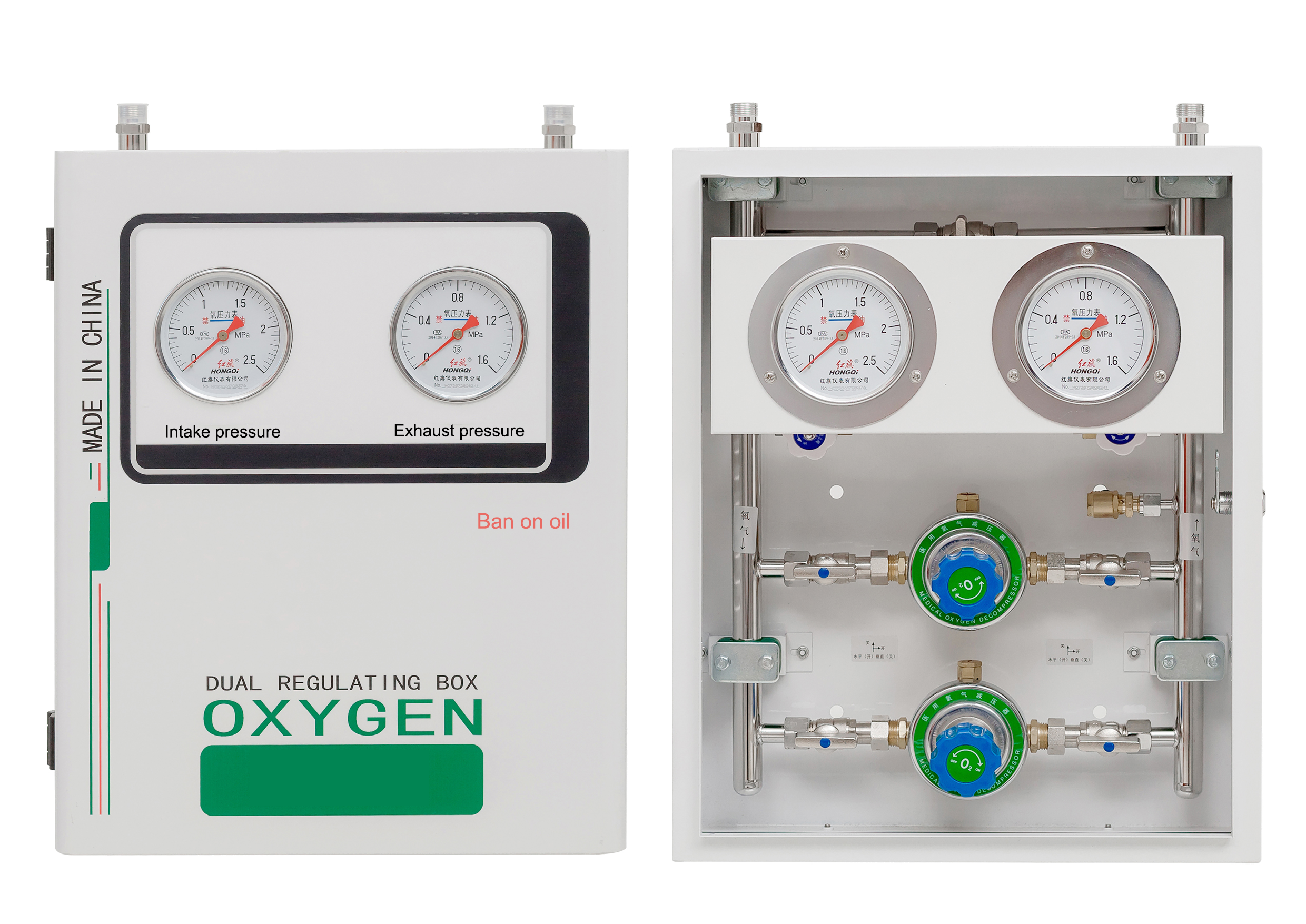

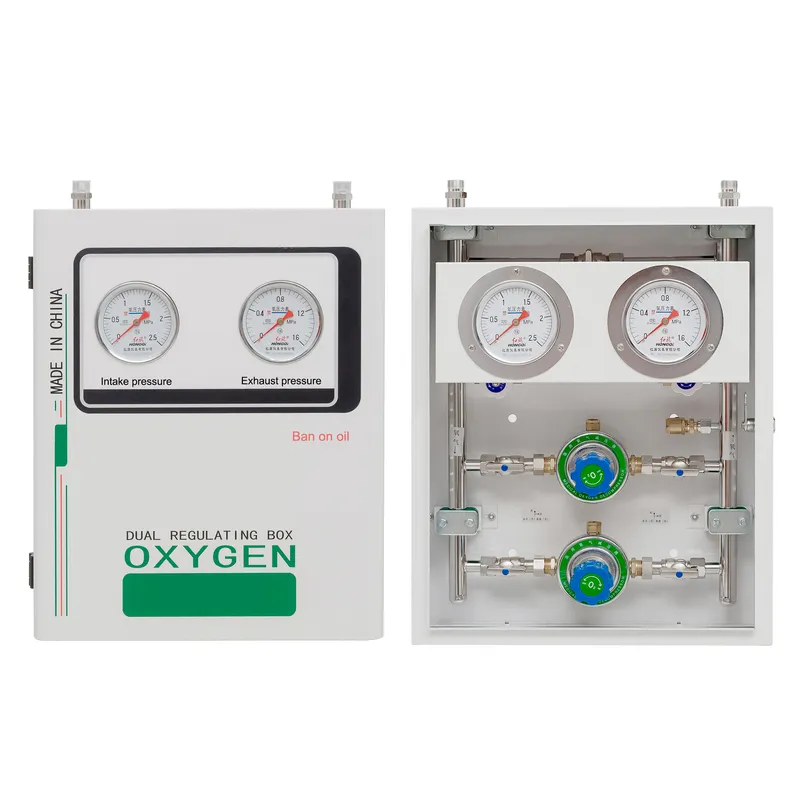

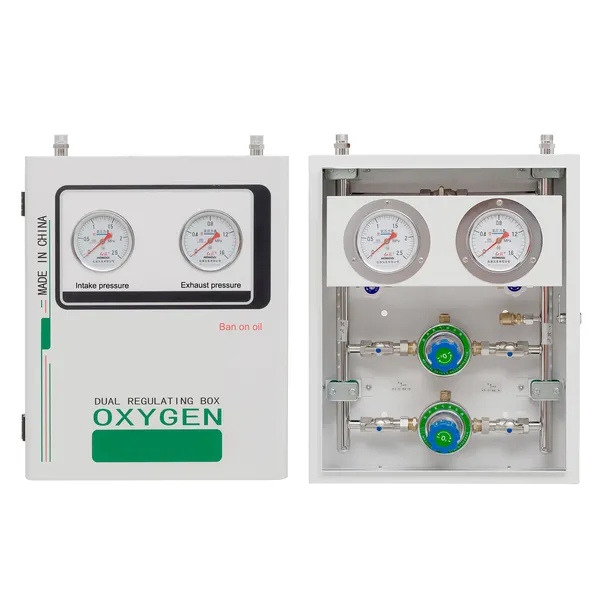

Oxygen Secondary Pressure Reducing Box Dual Circuit Degreasing Seamless Stainless Steel 304 Pipeline

Oxygen Secondary Pressure Reducing Box Dual Circuit Degreasing Seamless Stainless Steel 304 Pipeline

Adopting a dual circuit design, when one circuit fails, it can be switched to the other circuit; It can achieve non-stop gas maintenance without affecting pressure, meeting the requirement of "continuous gas supply under a single fault" stipulated in GB 50751-2013 "Technical Specification for Medical Gas Engineering". And provide the testing report of GB 50751-2012 "Technical Specification for Medical Gas Engineering"

Description

The pipeline adopts a design of one backup and one use, which is convenient for maintenance;
Box size
420mm * 450mm * 170mm
Import pressure P1
0.6~0.8MPa
Export pressure P2
0.35~0.6MPa (adjustable)
Precision pressure gauge with safety valve
Medium
Air; Flow rate ≥ 300L/min
Static characteristics
P2 pressure increased by 0.06MPa
Brass pressure regulator, brass maintenance valve
Degreasing seamless stainless steel 304 pipeline
