TECHNICAL PARAMETER

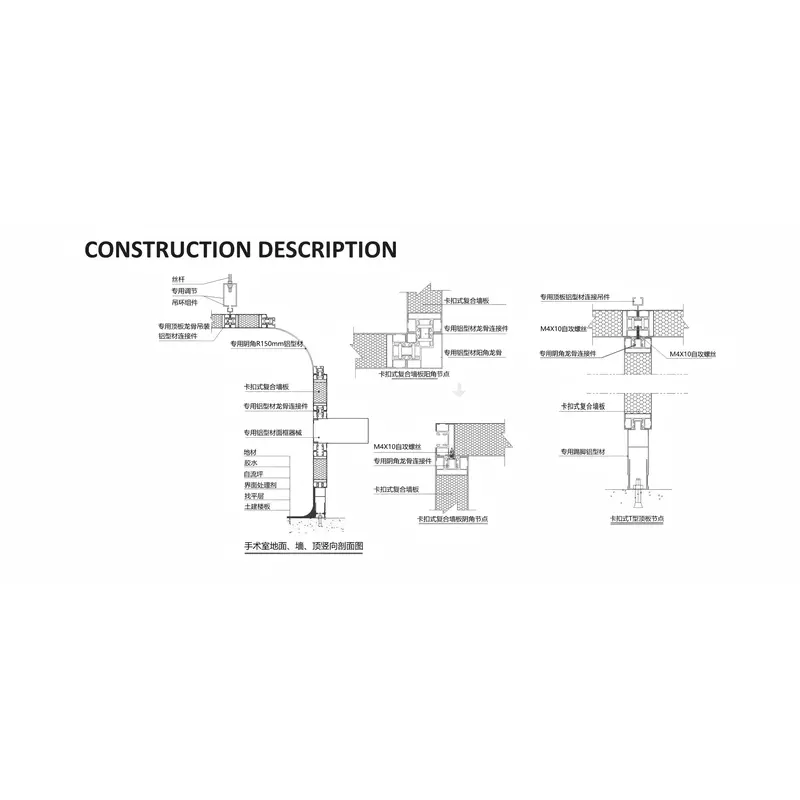

01 The walls and walls,as well as the walls andtop surfaces,are designed with R150mmaluminum alloy profiles with circular arcs02 1.0mm thick electrolytic steel plate isselected for the wall surface layer03 The overall surface layer is flat,and theflatness between the walls is within 1mm04 The gap between the wall and the wallshould be controlled within 1mm05 The joints between walls and corners aresealed with mold proof sealant,filled withpolyurethane foam,which has good airtightness,sound insulation,and thermalinsulation performance06National fire protection level A
07Environmentally friendly free formaldehydecontent less than or equal to 0.02g/1000g
08The surface materials of the wall panelstructure can be selected:various metalplates,PET plates,inorganic pre coatedplates,glass,stone,etc
09The core materials of the wall panel structurecan be selected:aluminum honeycomb,paper honeycomb,rock wool,glassmagnesium board,gypsum board,etc
10High structural strength,allowing peopleto walk on the suspended ceiling withoutsuspension reinforcement or support
11The suspended ceiling adopts H-shaped andT-shaped buckles to achieve self-locking,andthe structure is fastened to form a wholeoperating room with high seismic strength
WALL PANEL CHARACTERISTICS
01High integration:The overall design concept makes theoperating room like a washing machine,powered onand ready to use,breaking the inherent concept of longconstruction cycles and complex processes in traditionaloperating rooms
02Modular design:industrial production ensures quality,installation standardization,and avoids installationproblems caused by the construction party
03Quick installation:On a flat ground,it can be installedwithout welding or keel splicing,and can be assembledseparately without the need for auxiliary structures
04Good flatness:The overall surface layer is flat,and thefilling material is hot pressed and solidified.The flatnessbetween walls is better than other walls within 1mm
05Small gap:The gap between the wall and the wall shouldbe controlled within 1mm
06Airtight sound insulation:The joints between walls andcorners are sealed with mold proof sealant,filled withpolyurethane foam,which has good air tightness,soundinsulation,and thermal insulation performance
07A-level fire prevention:with a national A-level fireprevention test report
08Variety of surface materials:The surface materials of thebuckle type wall panel structure can be:various metalplates,PET plates,inorganic pre coated plates,glass,stone,etc
09High structural strength:The buckle type wall panelstructure has high strength,and the suspended ceilingcan be used for walking without hanging bars or support,making it easy for maintenance and repair
10High seismic strength:The suspended ceiling adoptsH-shaped and T-shaped buckles to achieve self-locking,and the structure is fastened to form a whole operatingroom,with high seismic strength
