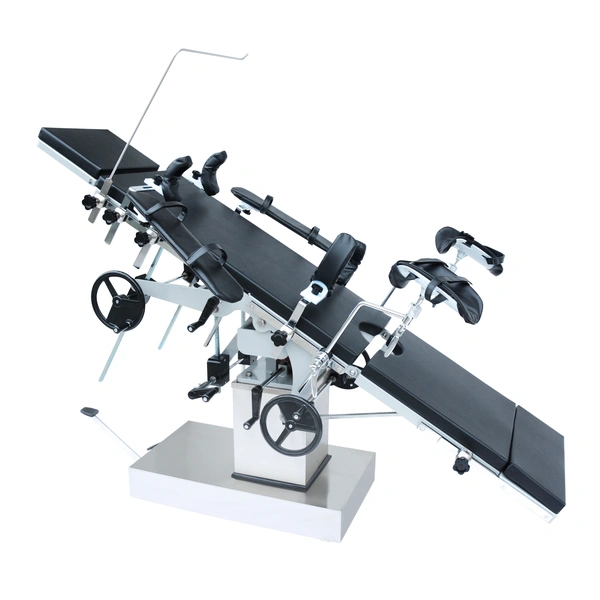

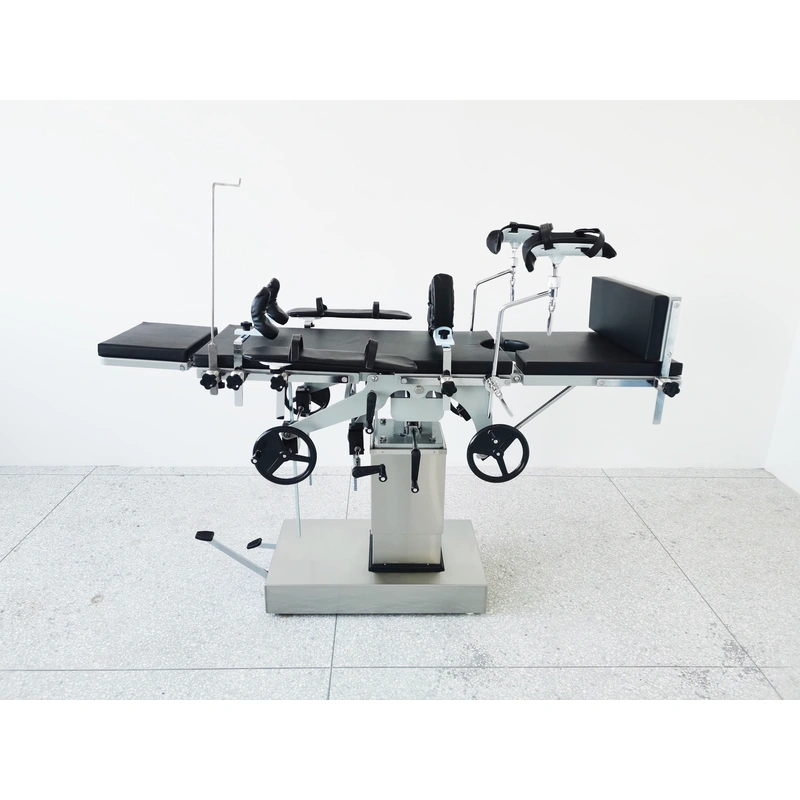

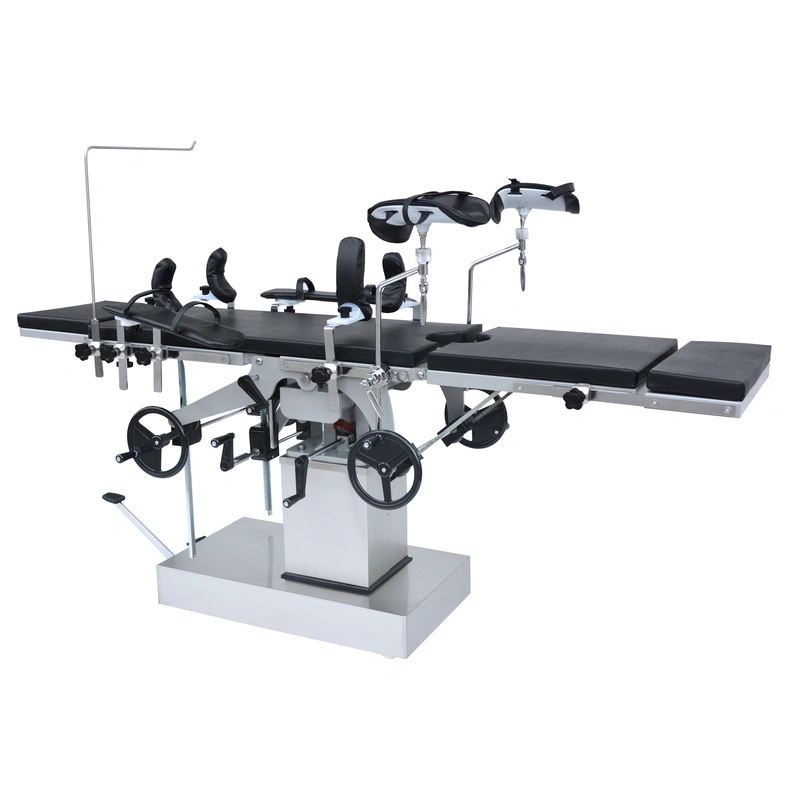

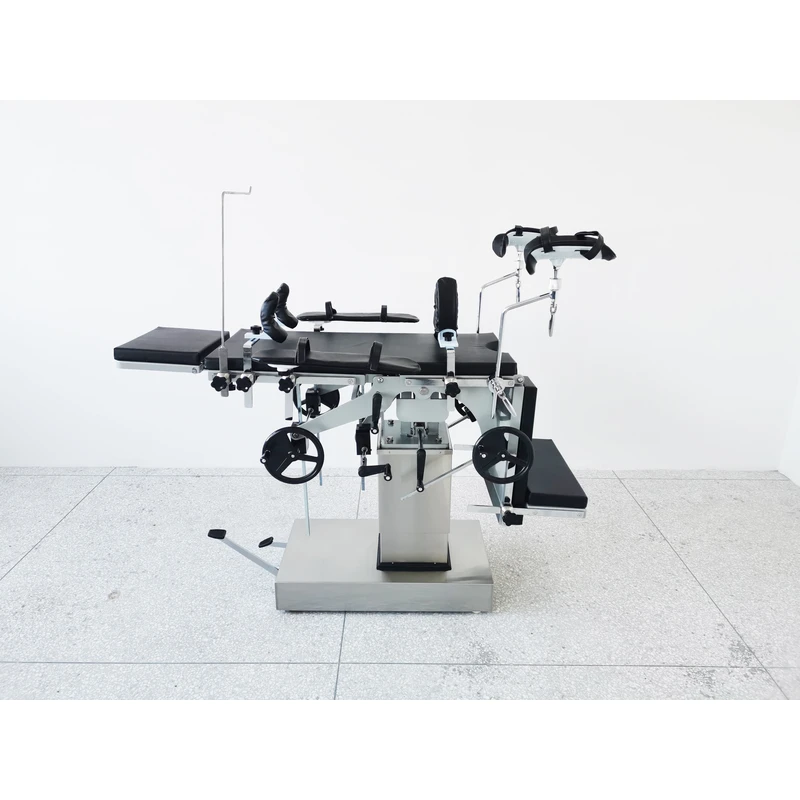

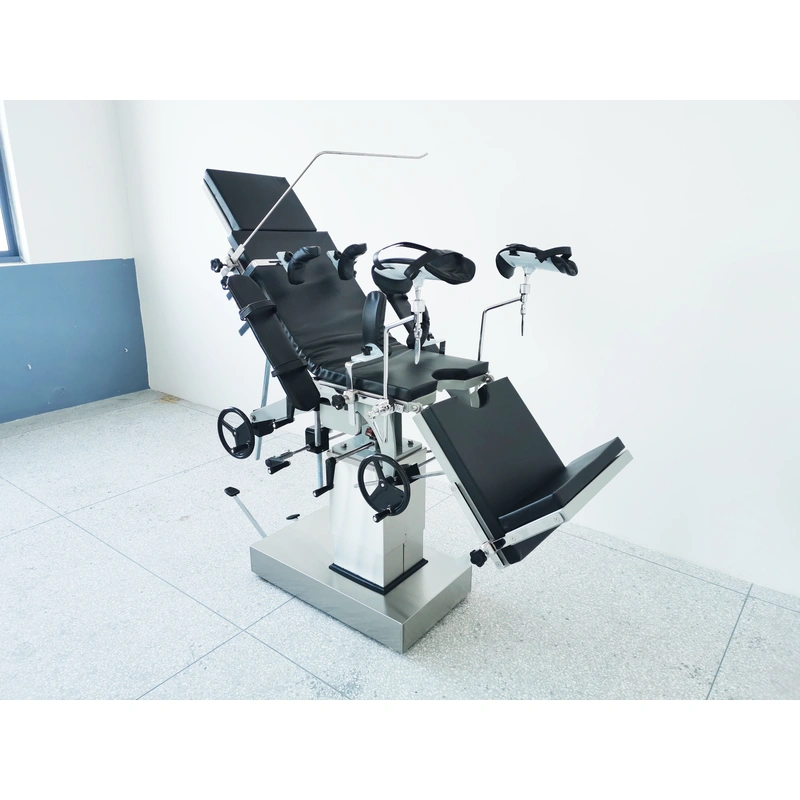

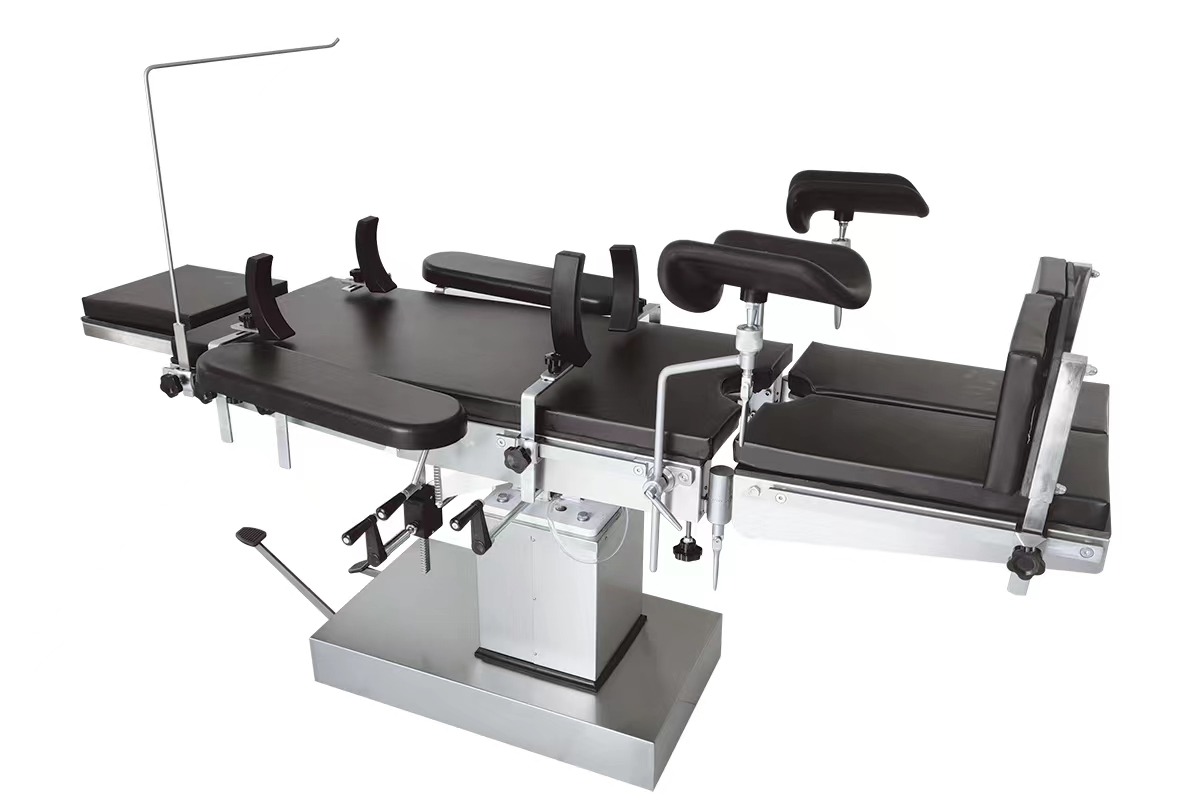

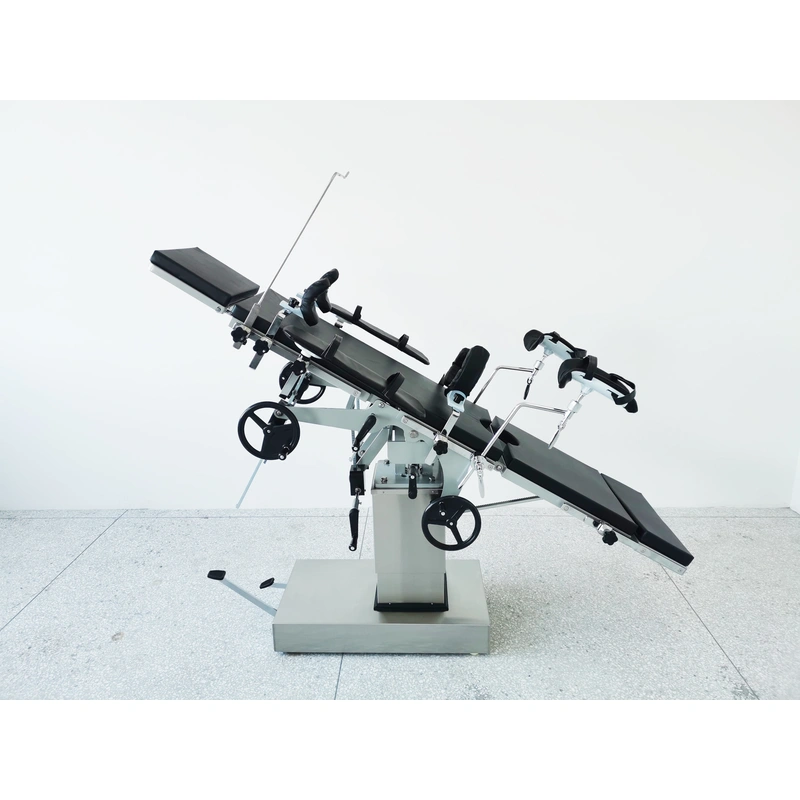

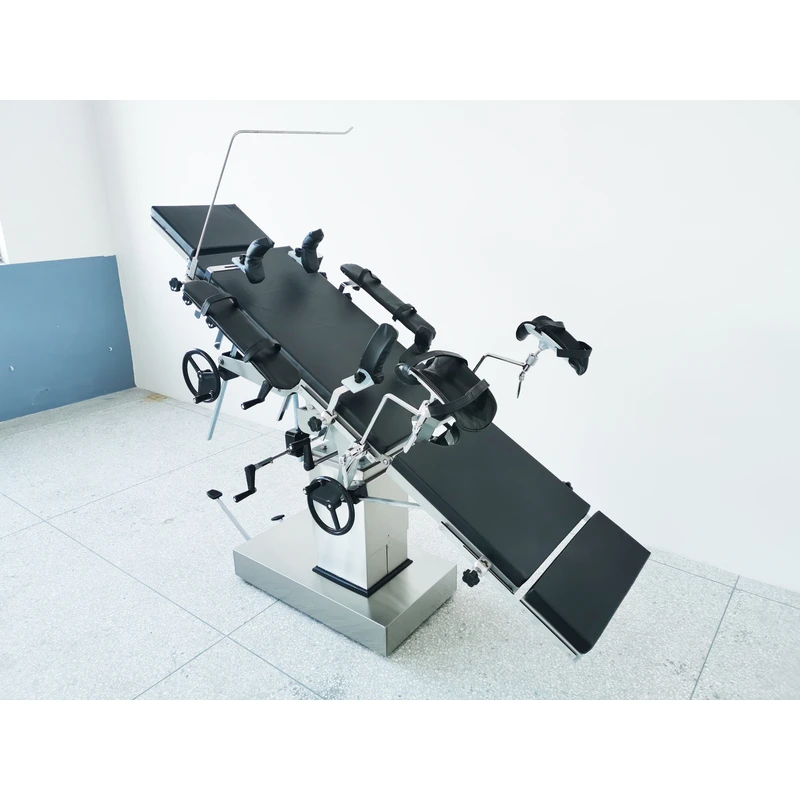

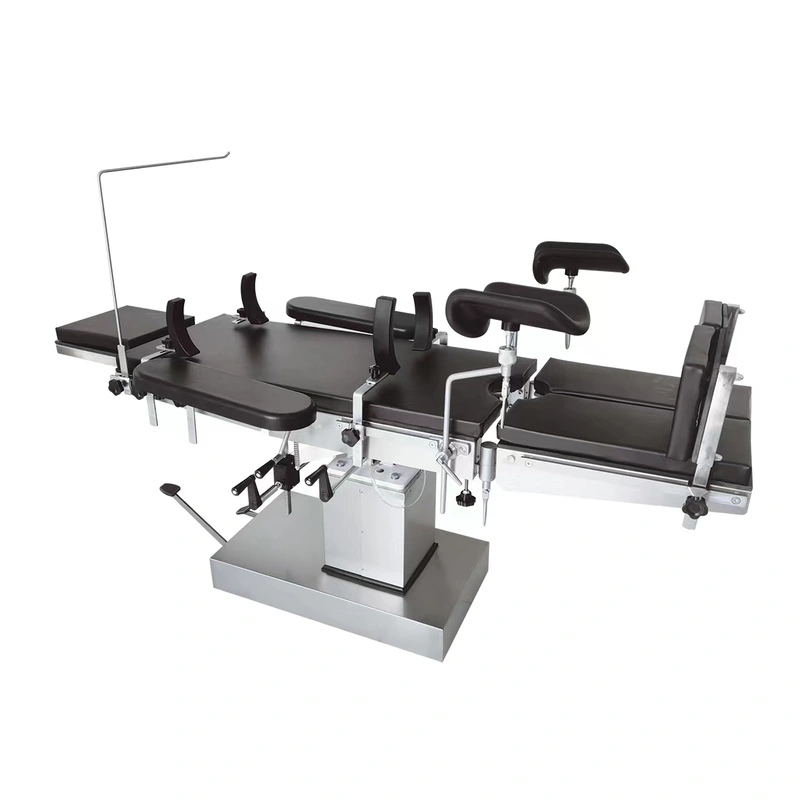

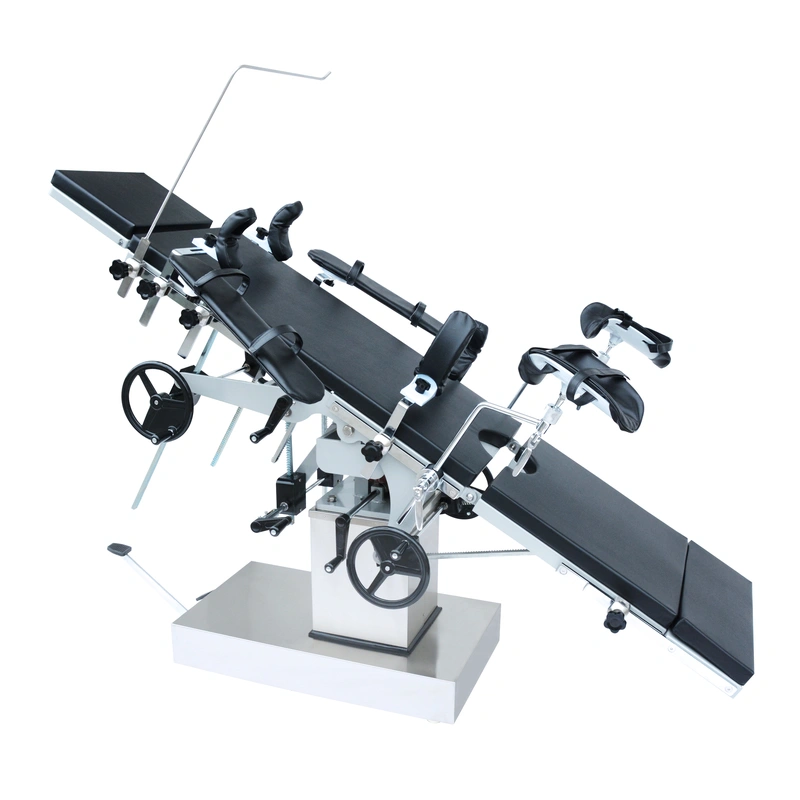

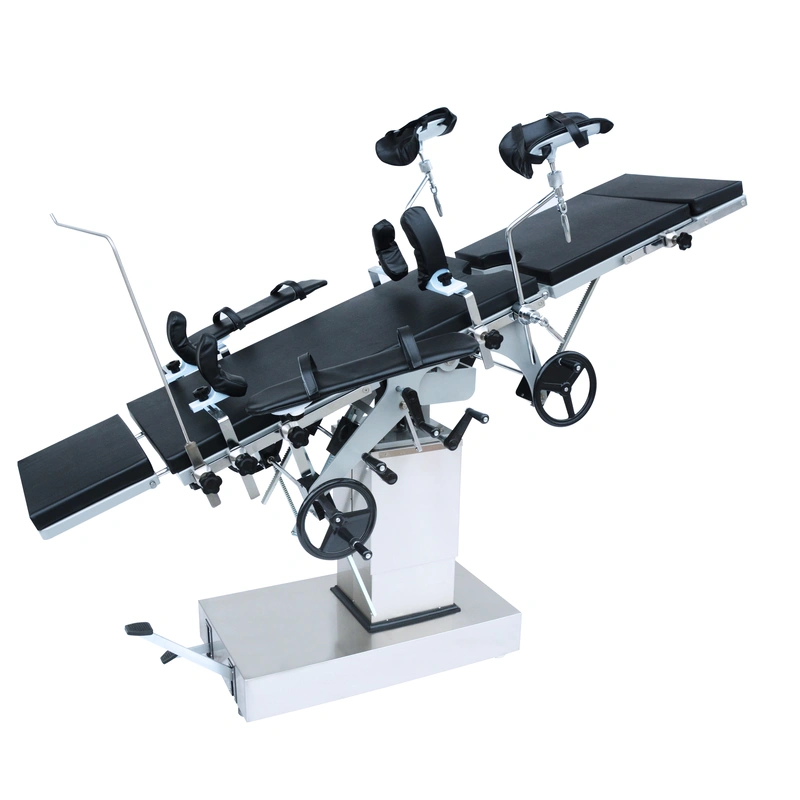

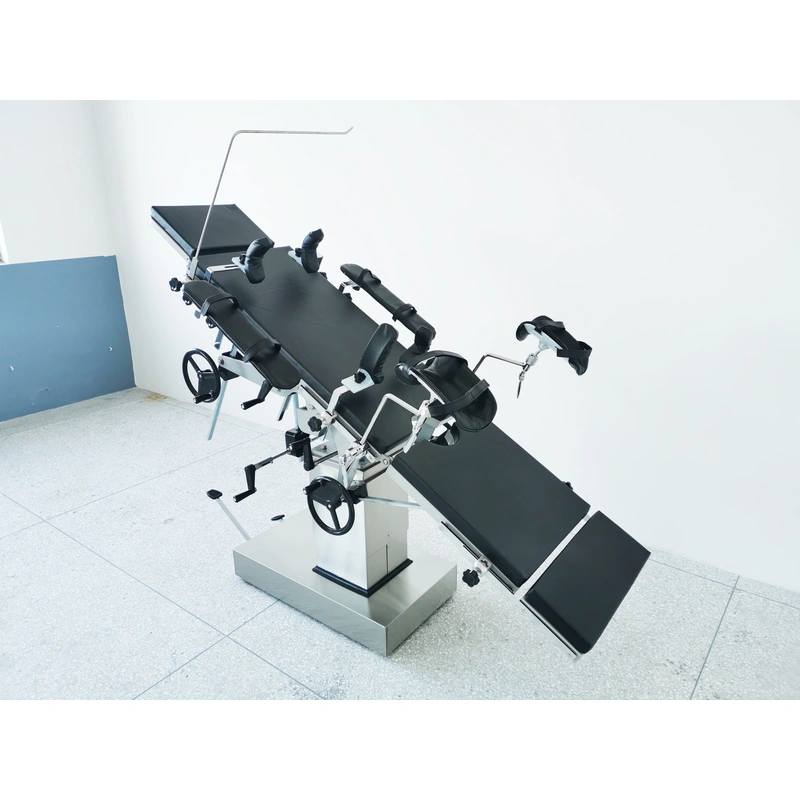

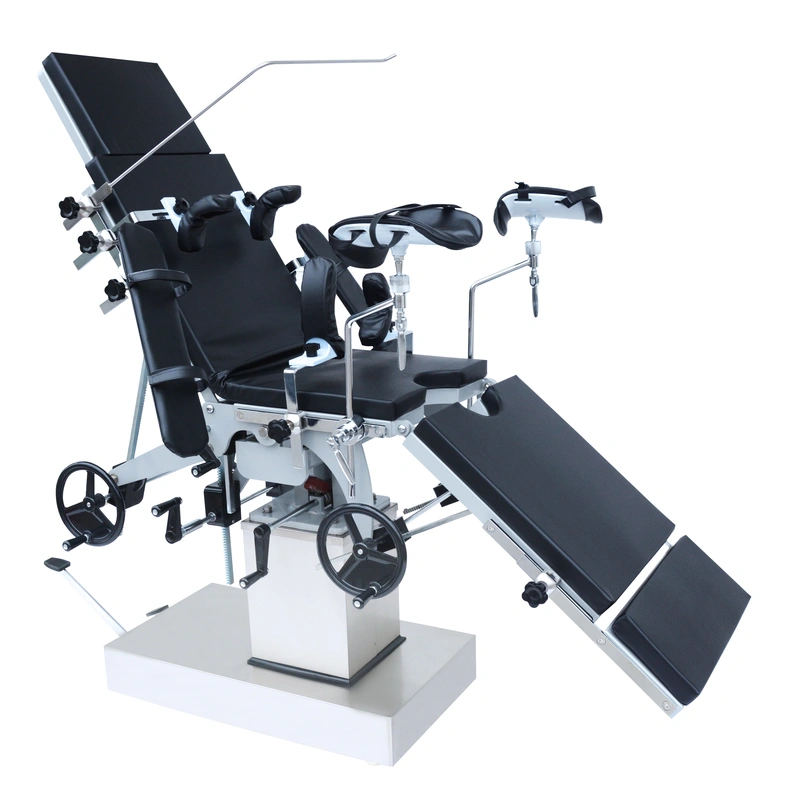

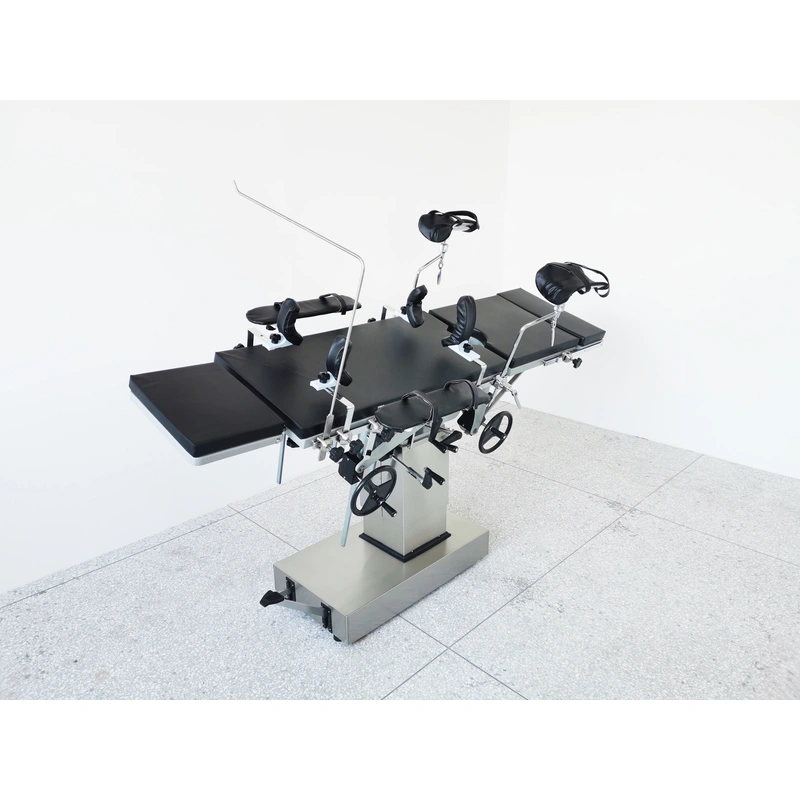

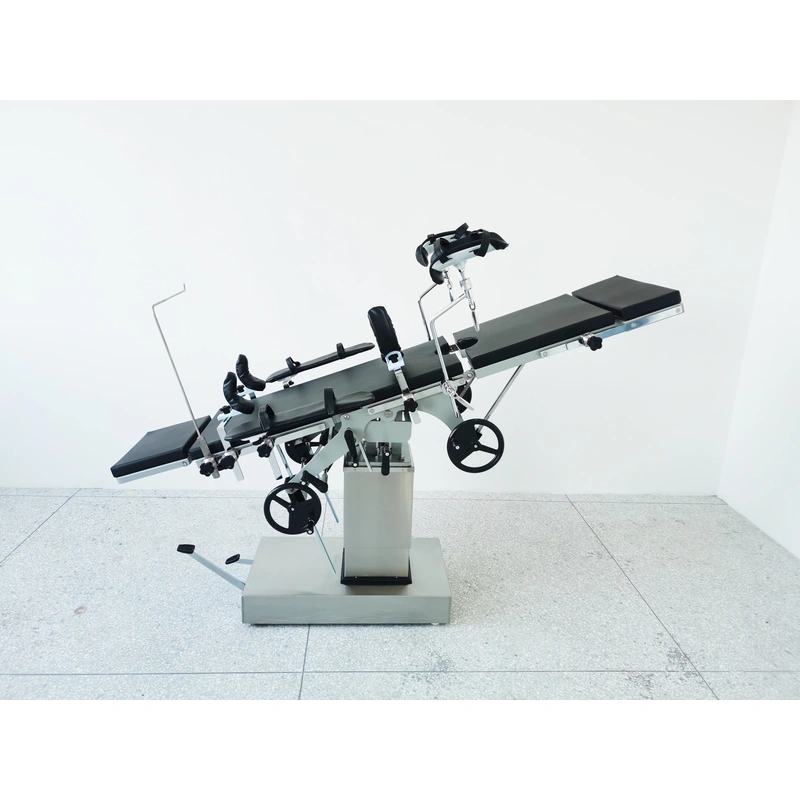

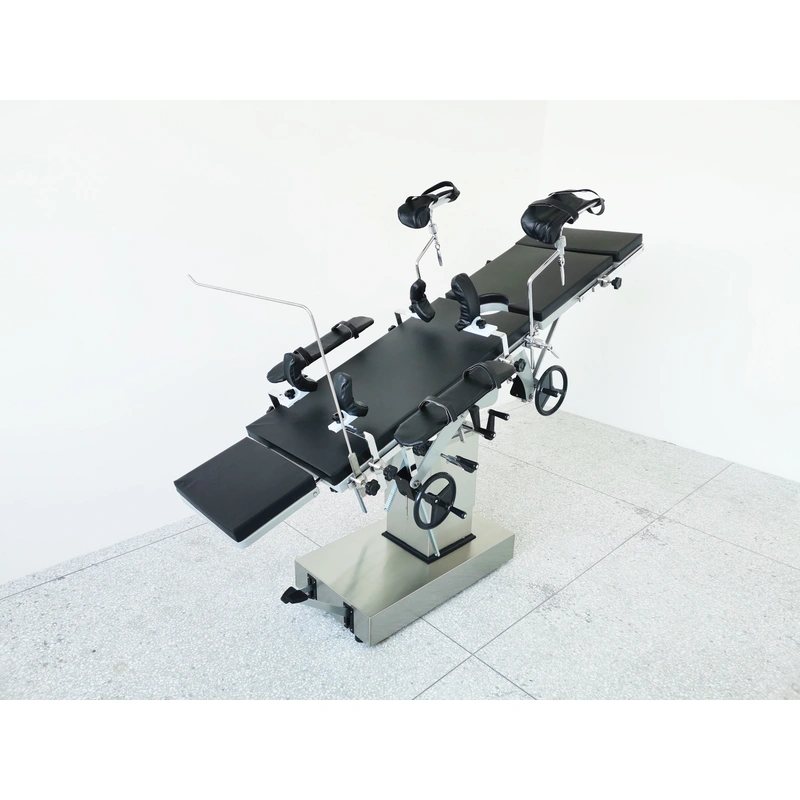

S3001D is widely used in chest, Abdominal surgery, ENT, gynaecology and obstetrics, urology and orthopedics etc. Hydraulic lift by foot pedal, Position adjustments are needed on both sides of the operating table during surgery. The use of hand-screw drive table longitudinal movement, can be used with C-arm supporting the use of X-ray checkups and facilitate the film, the back and the legs folded plates are used servo-assisted gas spring, The base and column cover all made by premium 304 stainless steel. Good performance on anti-rust and easy to clean.
Length | Width | Tabletop lowest height | Elevation range | ||
≥2050mm | 500mm | ≤750mm | 250mm | ||
Parameter | |||||
Movements | Model:S3001D | ||||
Tabletop trendelenburg | Reverse Trendelenburg | ≥25° | |||
Trendelenburg | ≥20° | ||||
Lateral Tilt (Left And Right) | ≥18° | ||||
Head plate | Up | ≥90° | |||
Down | ≥90° | ||||
Back plate | Up | ≥65° | |||
Down | ≥15° | ||||
Leg plate | Up | ≥15° | |||
Down | ≥90° | ||||
Outward | ≥90° | ||||
Kidney Bridge Elevation | ≥120mm | ||||
Horizontal Sliding Range | ≥300mm | ||||
Disposition | |||||
Anaesthesia screen | 1 piece | Shoulder support (cushion) | 2 piece | Arm support(cushion) | 2 piece |
Body support(cushion) | 2 piece | Leg support(cushion) | 2 piece | Foot plate(cushion) | 2 piece |
Long Fixing Clamp | 2 piece | Fixing Clamp | 9 piece | Mattress | 1 piece |
Packaging and delivery | |||||
Packaging | Wooden case | ||||
Size | 133*72*96 cm | ||||
G./N.W. | 210/175 kg | ||||
