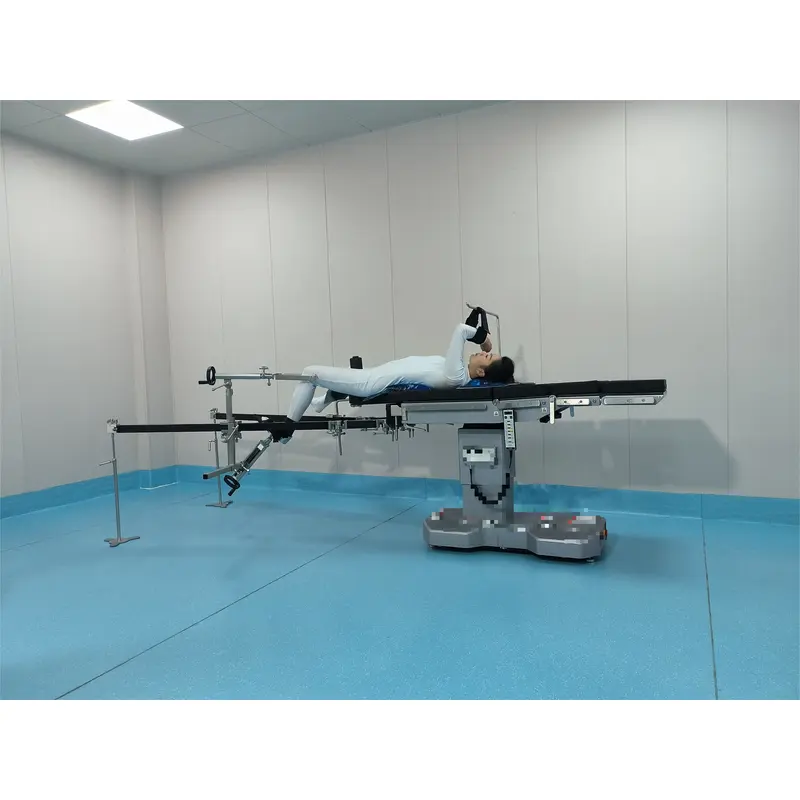

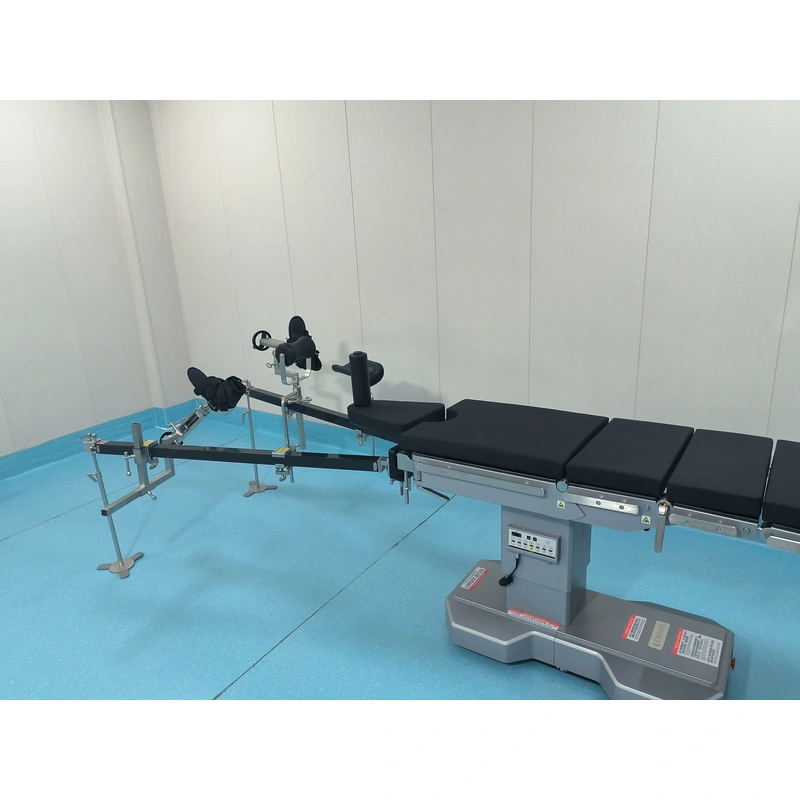

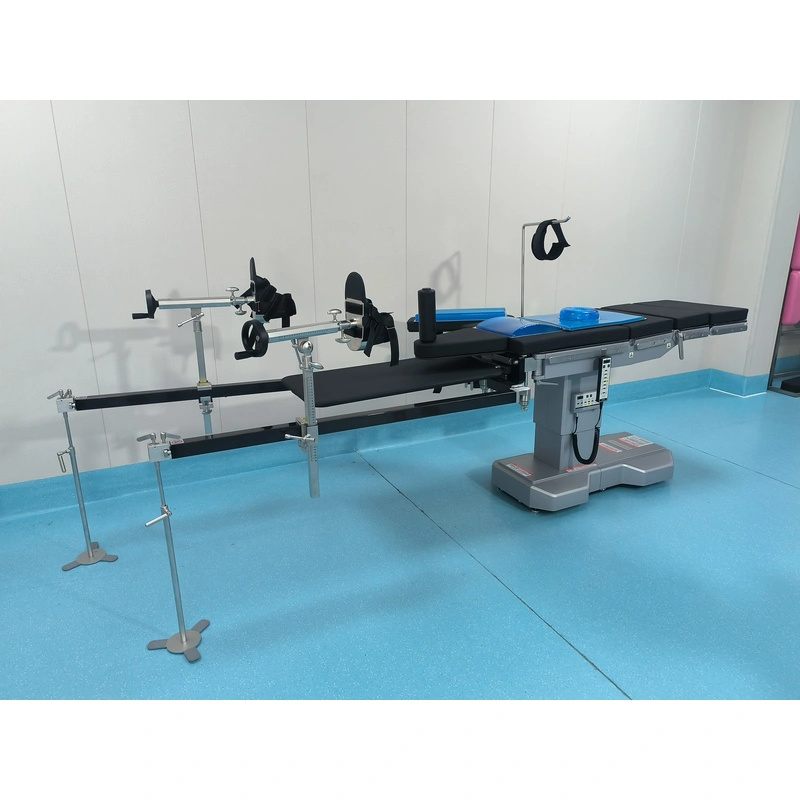

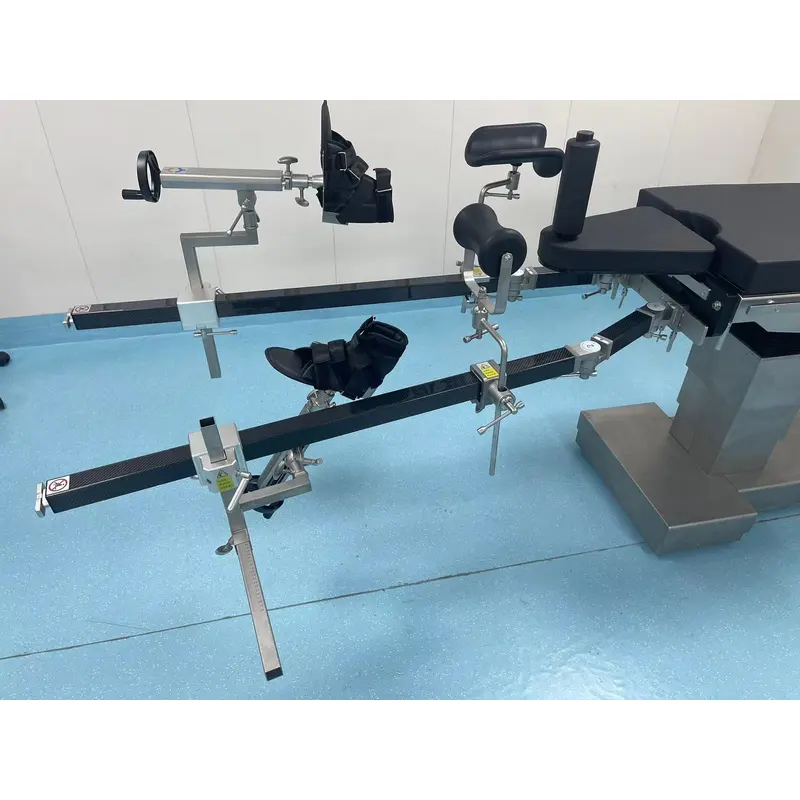

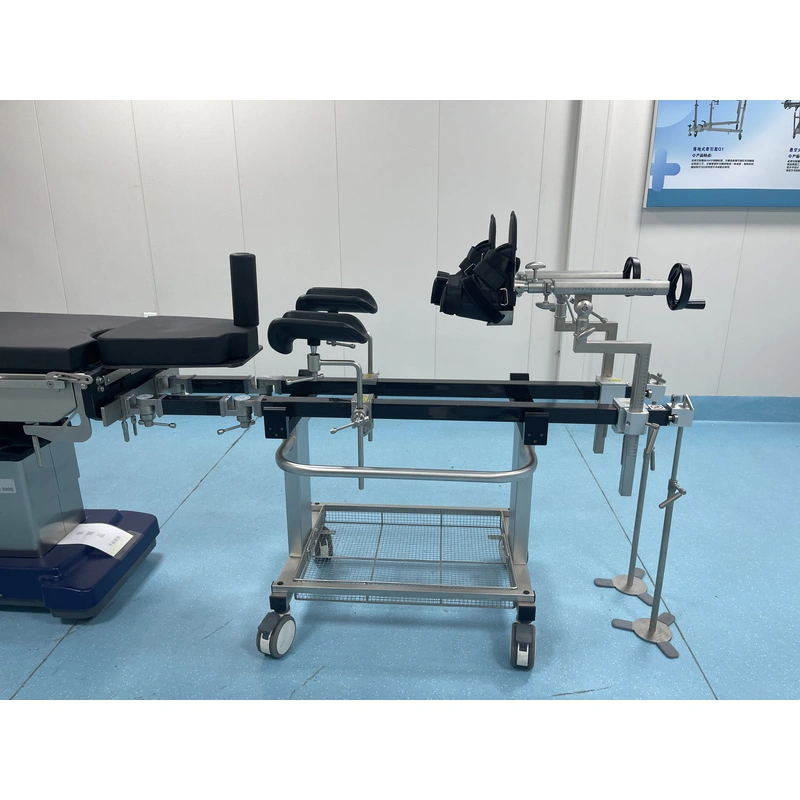

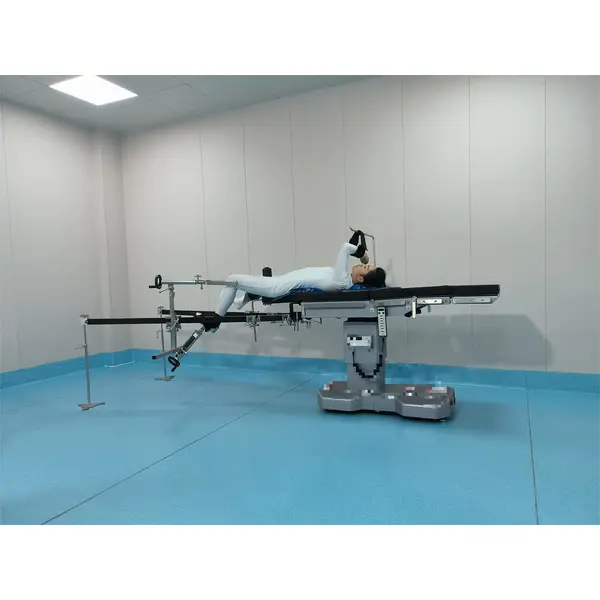

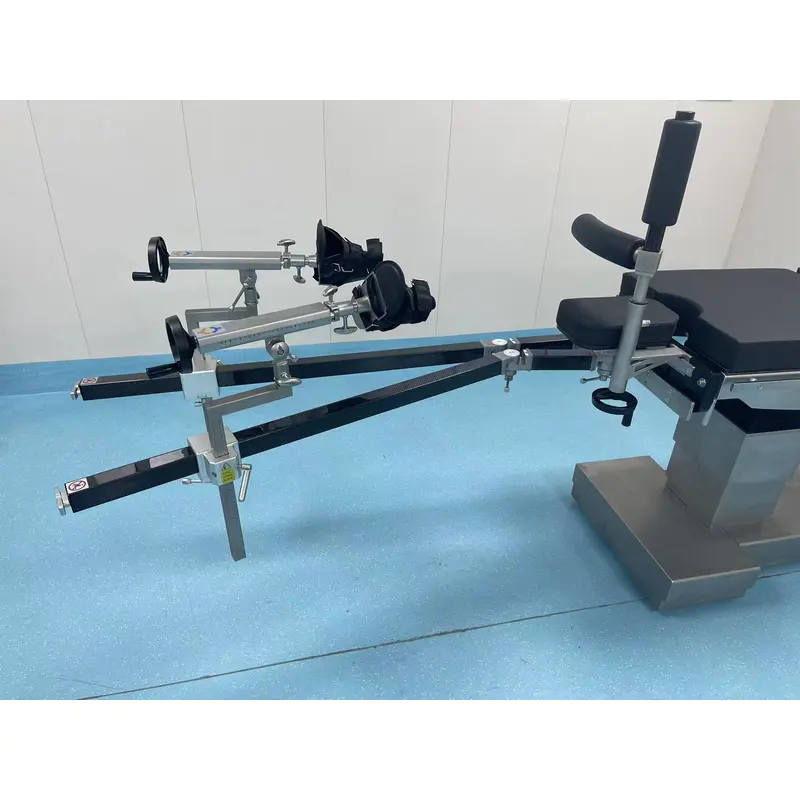

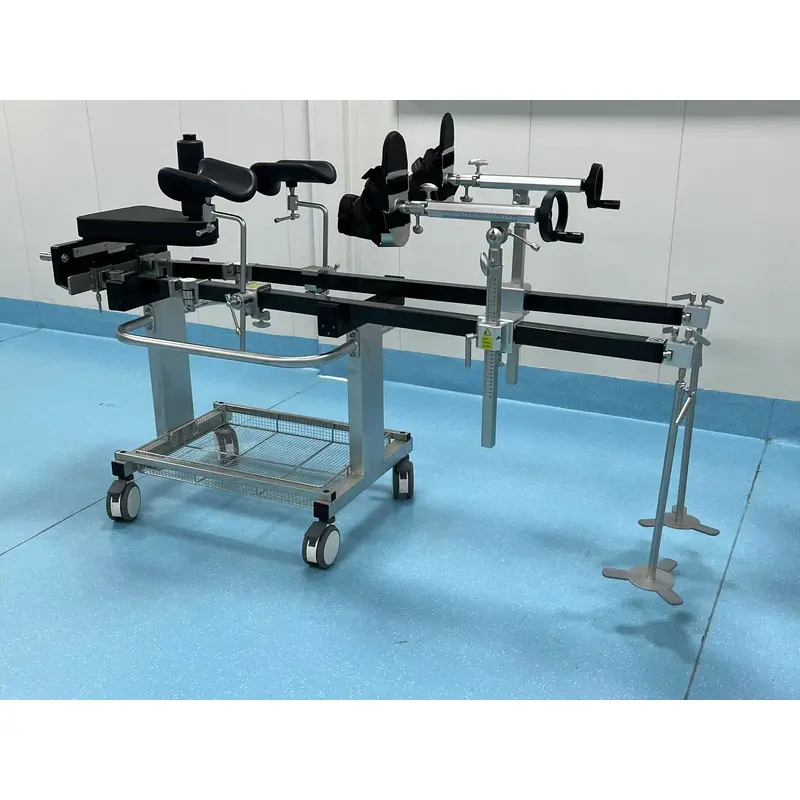

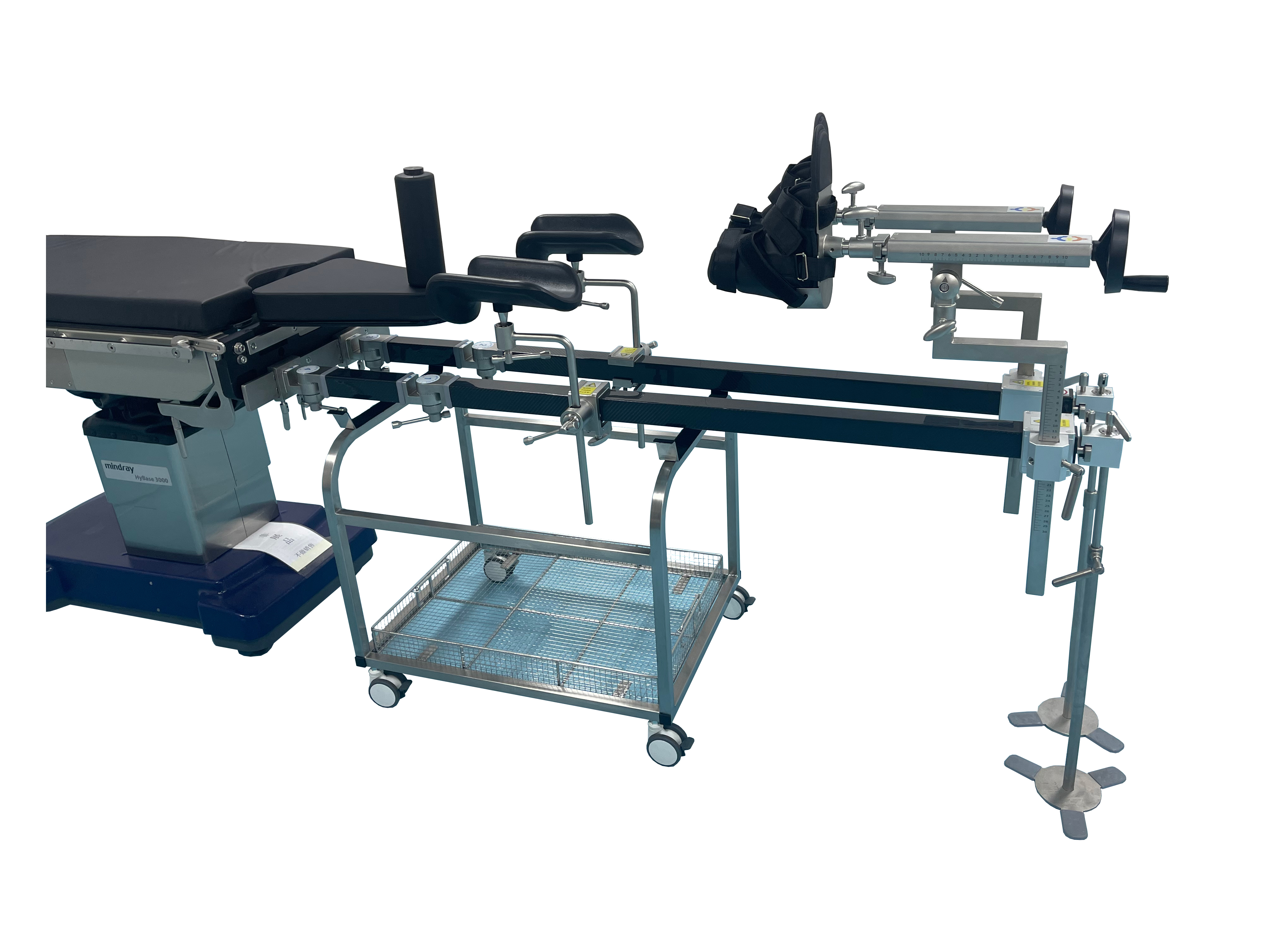

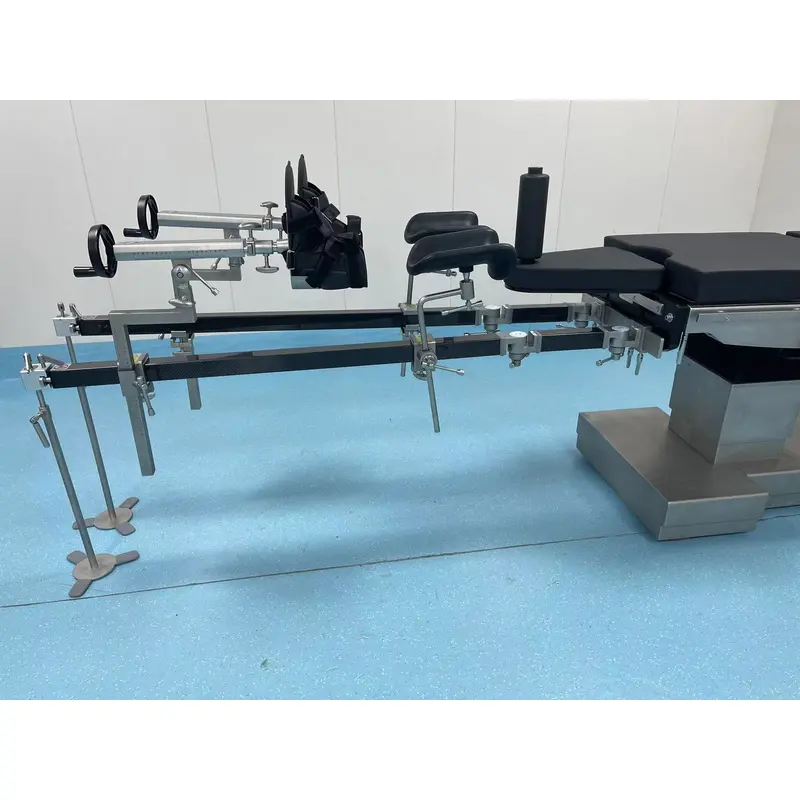

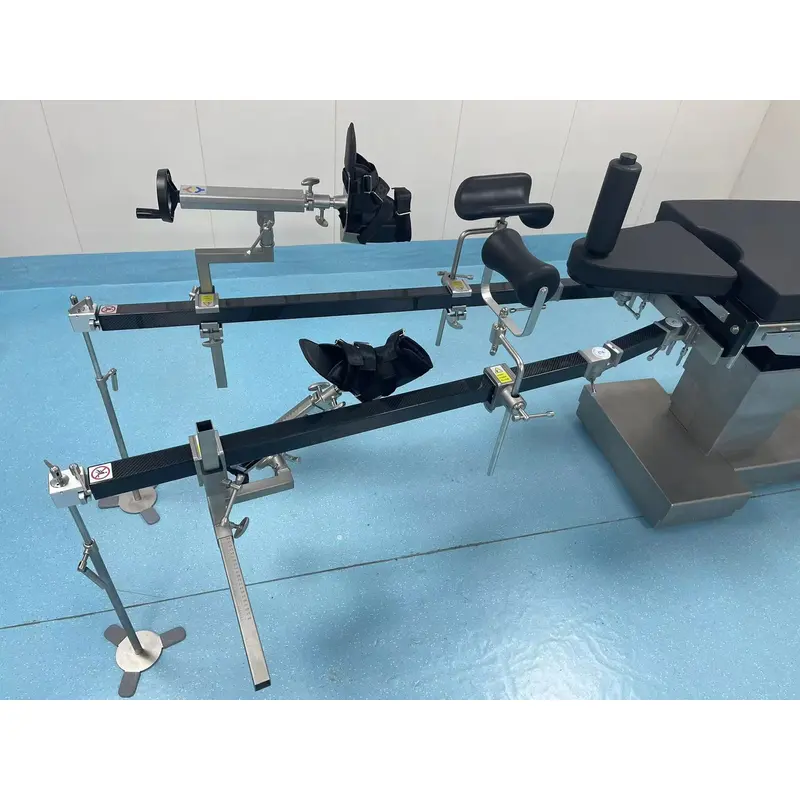

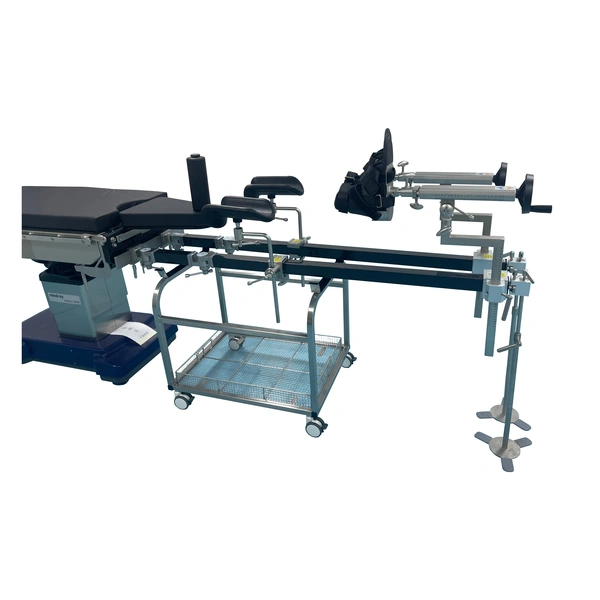

Carbonfiber Orthopedic Traction Frame Q3 (doublesegment)

Specifications:

Extension rod (short)abduction   ≥180°

Extension rod (short)length   250mm

Extension rod (long)abduction   ≥300°

Extension rod(long)length   1200mm

Horizontal displacement of traction mechanism   ≥1000mm

Vertical displacement of traction mechanism   ≥380mm

Horizontal rotation Angle of traction mechanism   360°

Vertical rotation Angle of traction mechanism   180°

Traction shoes rotation Angle   360°

Traction stroke   ≥190mm

Leg support displacement   ≥1000mm

Lateral decubitus bracket lifting   ≥120mm

Length of perineal column   ≥230mm

External diameter of the perineal column   ≥80mm

Length of traction frame   1720mm

The following are optional:

Traction bow   Lateral decubitus sitting board/bracket    Tbial scaffold

Transfer pad   Tibial traction attachment scaffold
