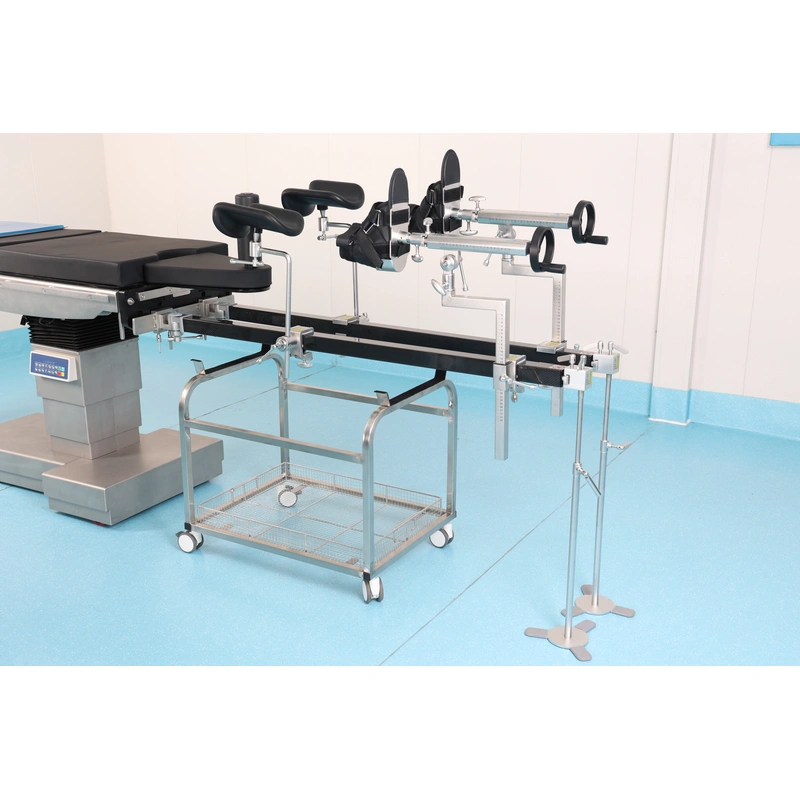

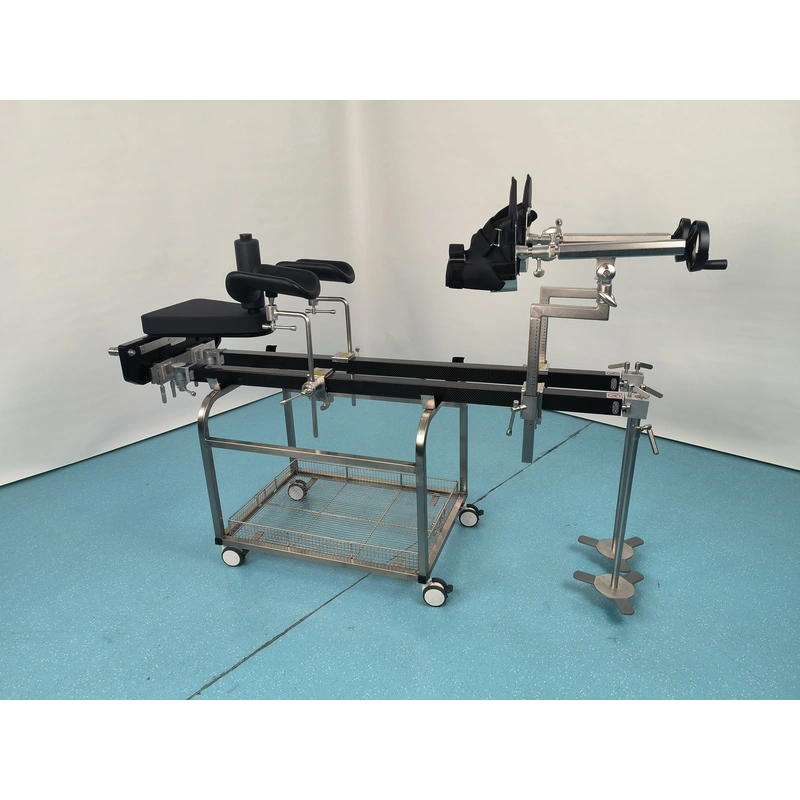

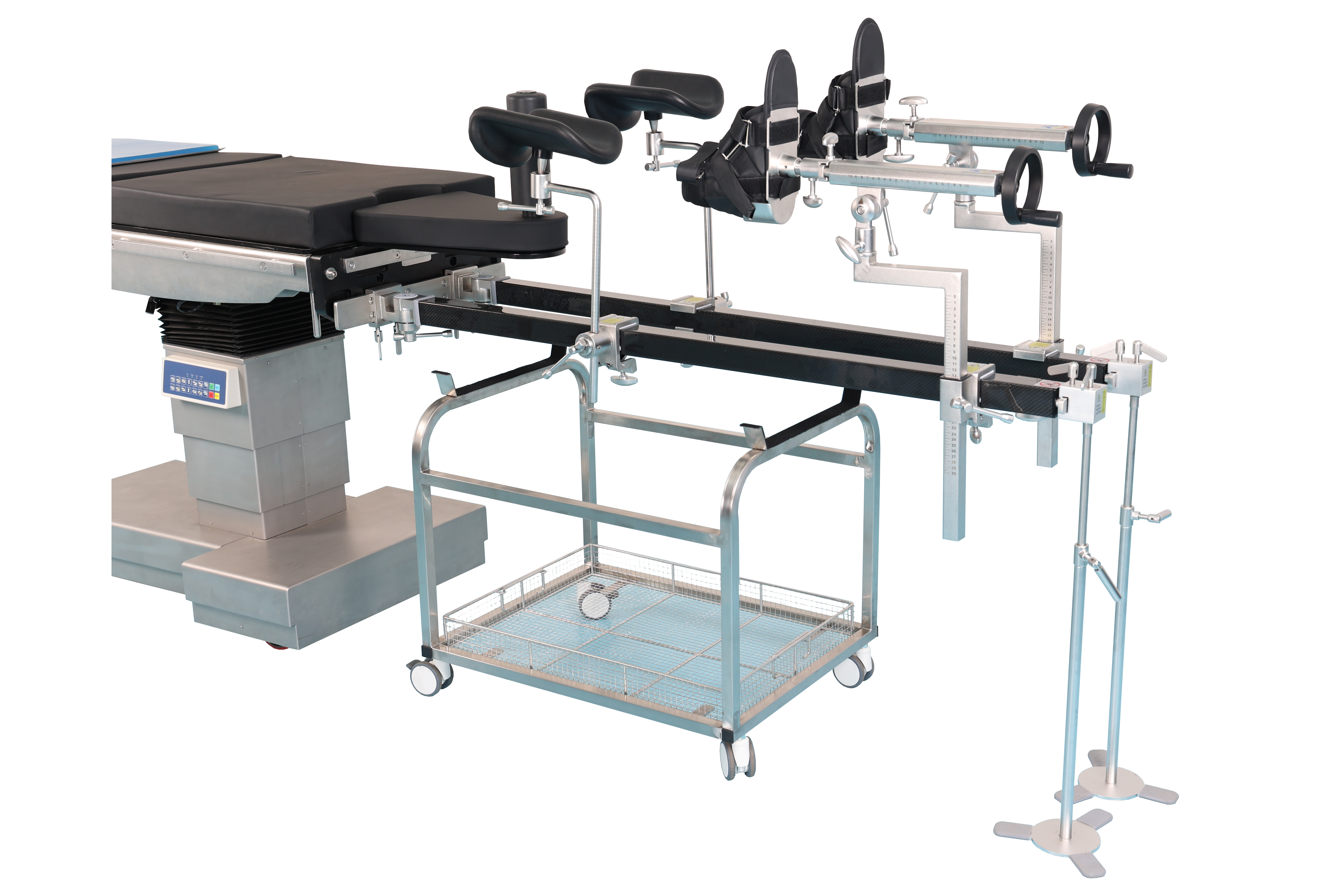

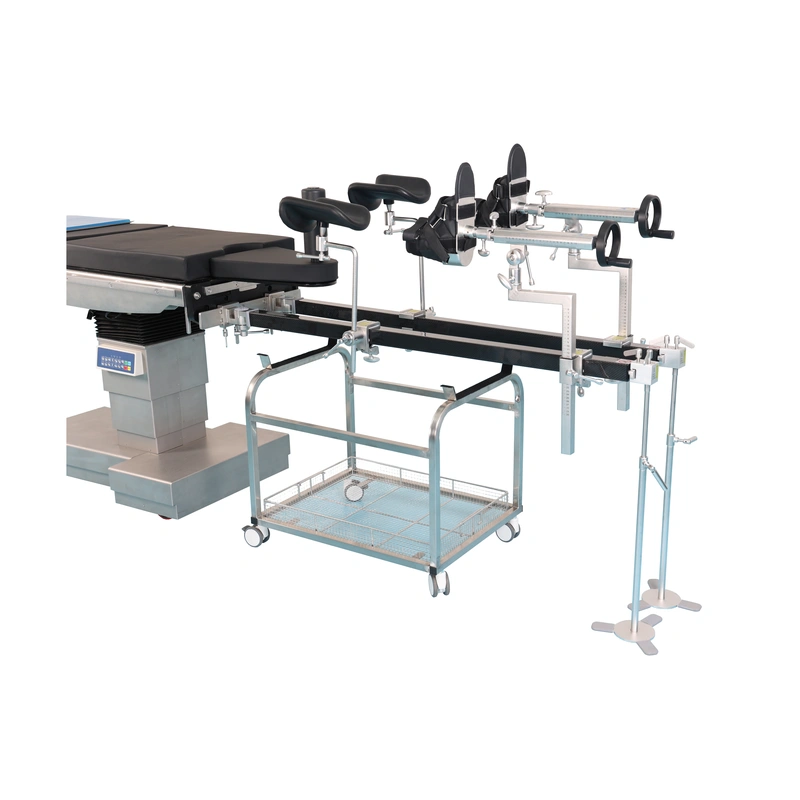

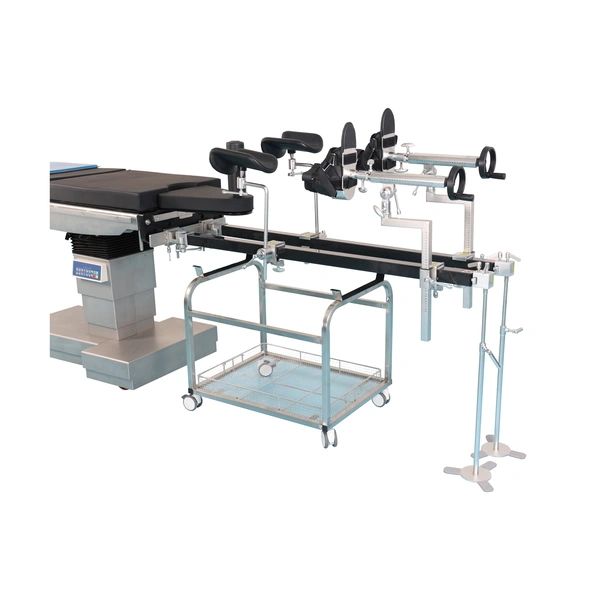

Carbonfiber Orthopedic Traction Frame Q3 (single segment)

Specifications:

Extension rod abduction   ≥180°

Length of extension rod   1400mm

Horizontal displacement of traction mechanism   ≥1200mm

Vertical displacement of traction mechanism   ≥380mm

Horizontal rotation Angle of traction mechanism   360°

Vertical rotation Angle of traction mechanism   180°

Traction shoes rotation Angle   360°

Traction stroke   ≥190mm

Leg support displacement   ≥1200mm

Lateral decubitus bracket lifting   ≥120mm

Length of perineal column   ≥230mm

Externa diameter of the perineal column   ≥80mm

Length of traction frame   1620mm

Width of traction frame   515/535mm

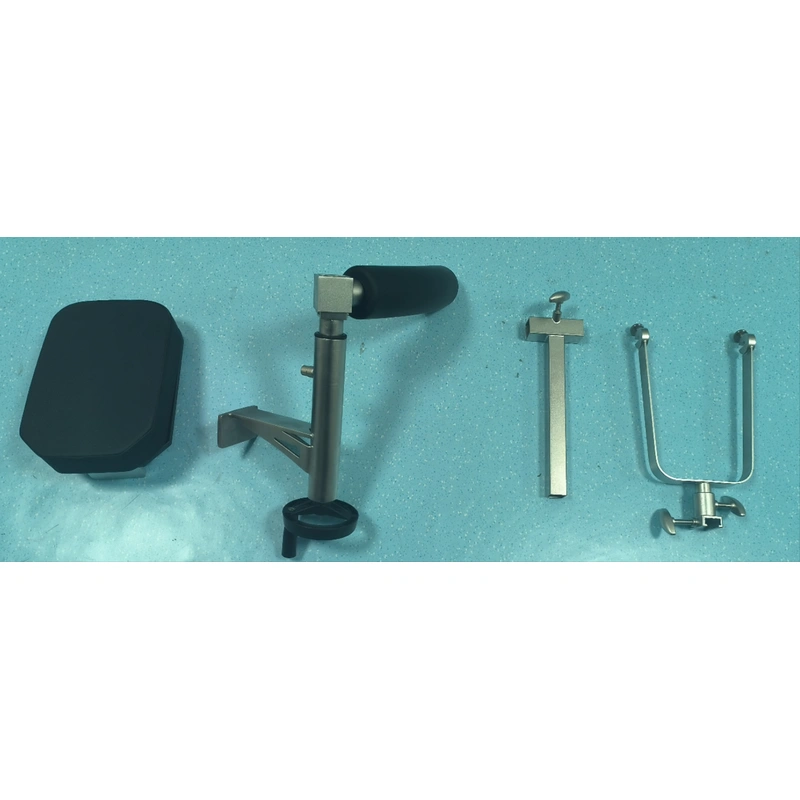

The following are optional:

Traction bow   Lateral decubitus sitting board/bracket    Tibial scaffold

Transfer pad   Tibial traction attachment scaffold
