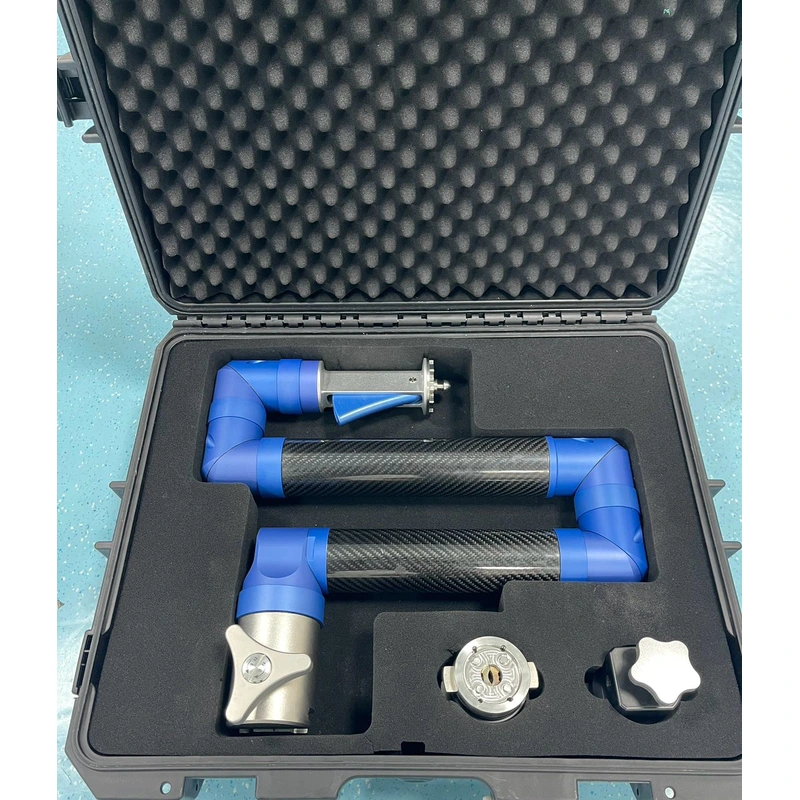

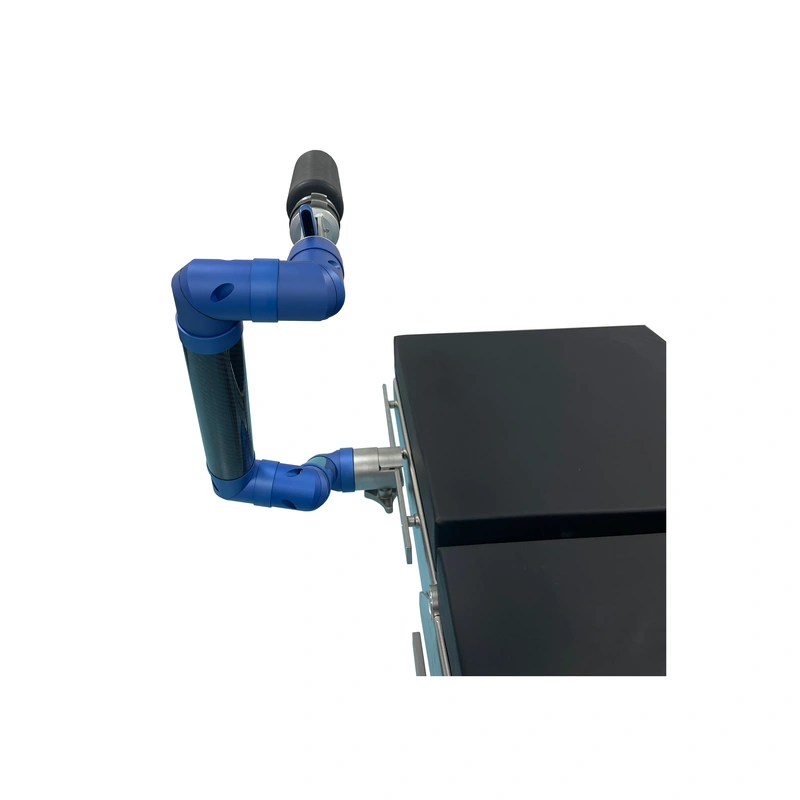

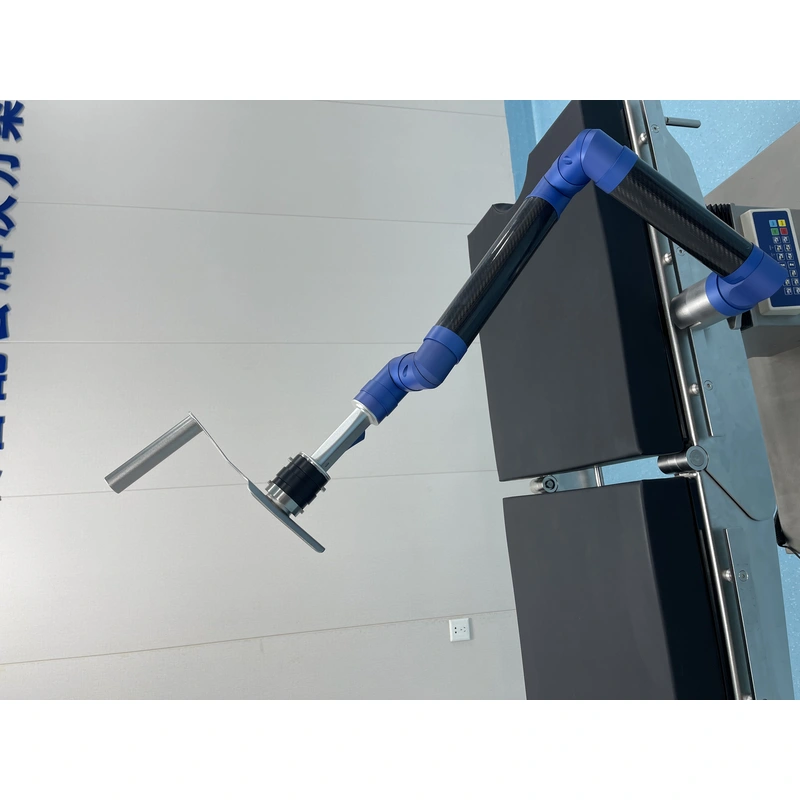

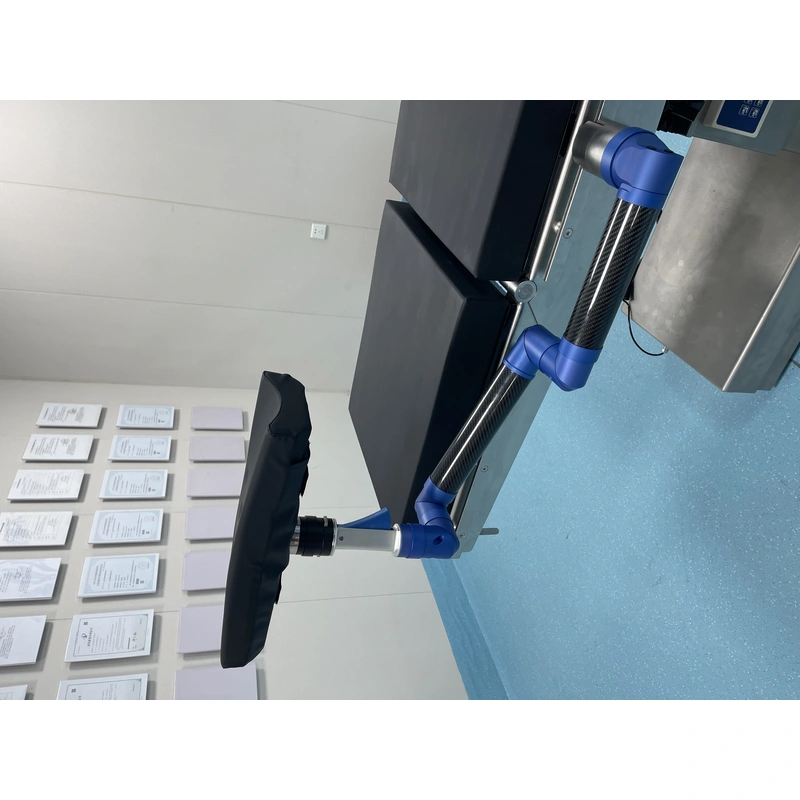

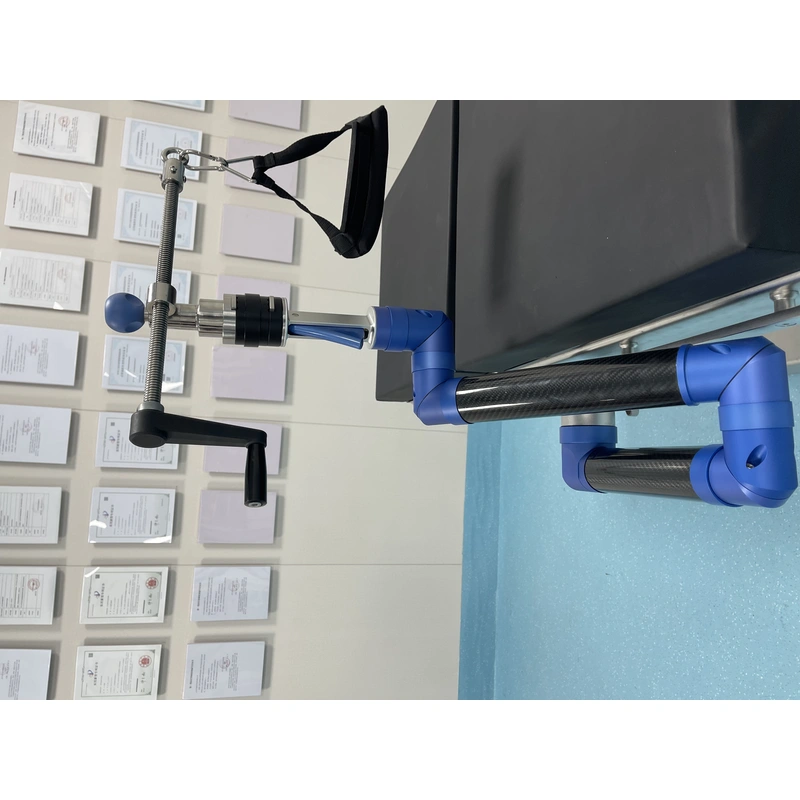

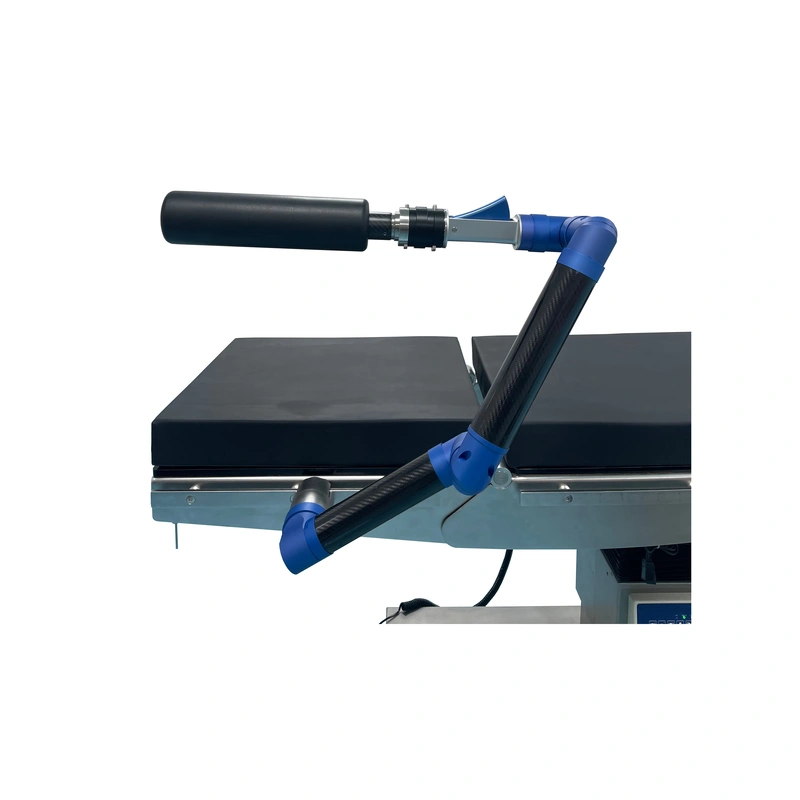

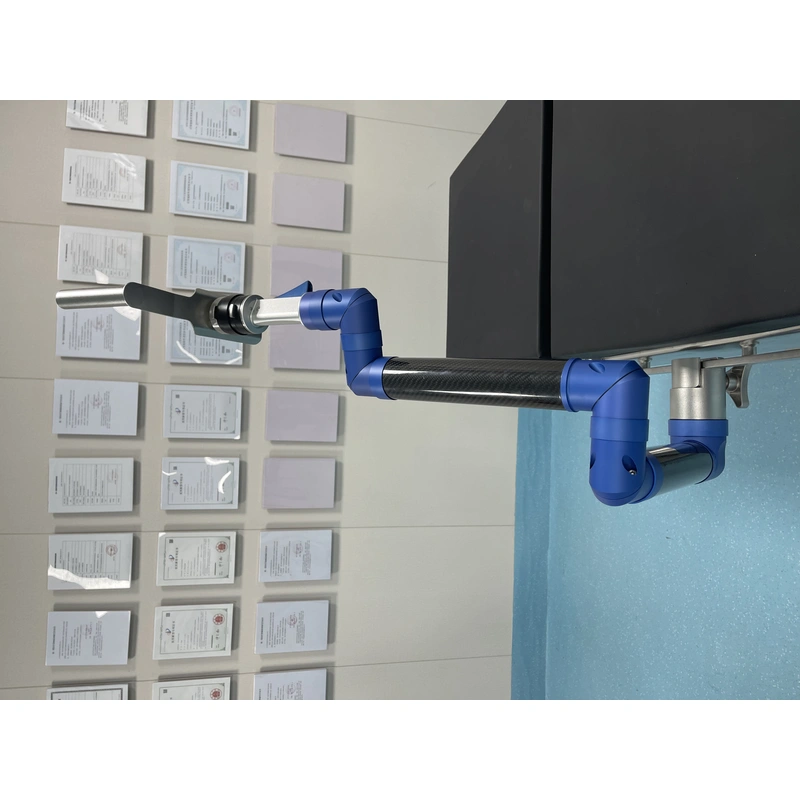

Mechanical spider arm

Main purpose:

Suitable for shoulder joint,elbow joint,palm finger traction,knee joint,anklejoint,neurosurgery,with good traction function

Product description:

1.Fast fixed booth with universal interface design,suitable for any brandof operating bed.

2.The converter adopts petal design,and the self-locking mechanism isautomatically fixed.It can meet all surgical use of bone and joint.

3.Switch one-button press operation,can be adjusted 360°,release thebutton can be locked positioning.

4.All accessories on surgical fixtures can be disinfected and reused.

5.The 6 joints are independently and freely adjusted in operation anduse,which is not easy to collide,and can carry lateral external forcesgreater than 15kg after locking.

6.The body of the fuselage is made of aviation aluminum and carbonfiber to meet the intraoperative perspective and is light and easy to carry.

Description

Specifications:

Device size length,width and height   950mm*380mm*75mm

Plant weight   ≤7.1kg

Maximum patient load   220kg

Length and diameter of the first joint   210mm/58mm

Length and diameter of the second joint   130mm/58mm

Length and diameter of the third joint   390mm/58mm

Length and diameter of the fourth joint   130mm/58mm

The length and diameter of the fifth joint   270mm/58mm

Length and diameter of the sixth joint   150mm/75mm
