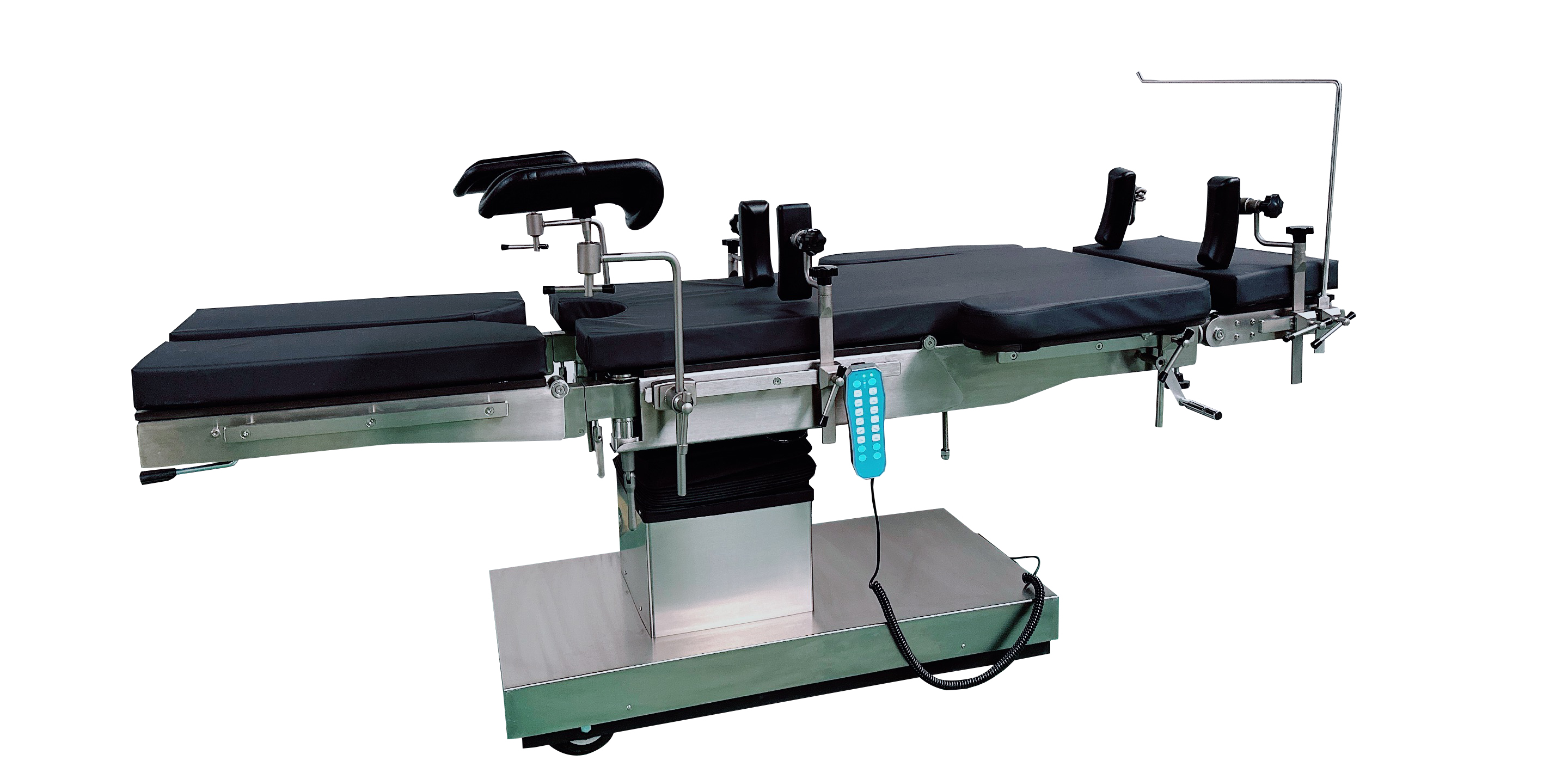

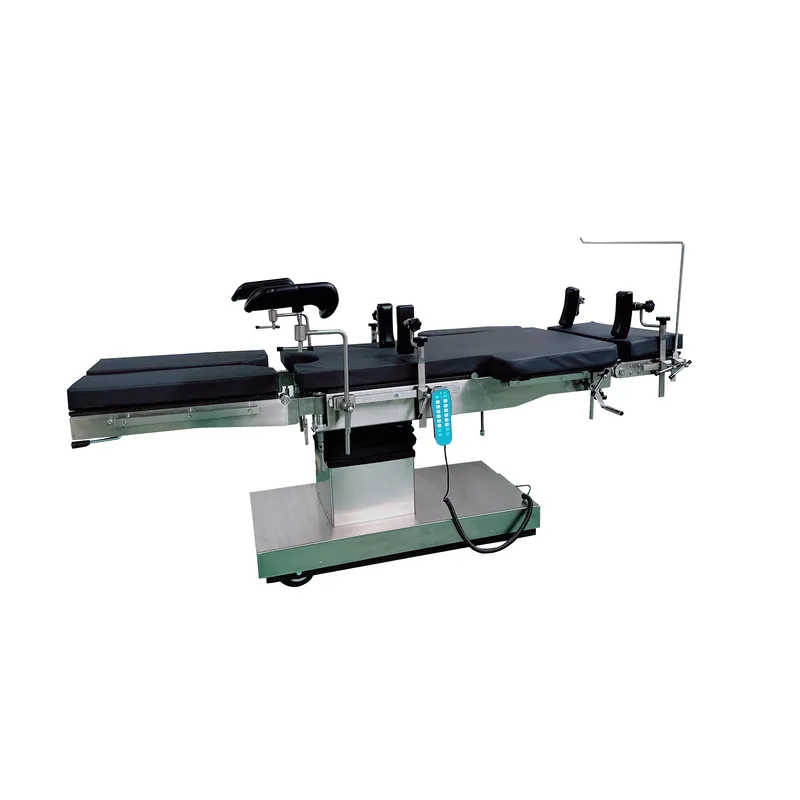

FY-505-D(IV) Electric hydraulic 5-Function Operating Table

Features:

●This table is suitable for general and orthopaedic operation.

●It has longitudinal moving 300mm function, very conveniment for X-ray examination and C-arm photograph on diffierent parts of body.

●It adopts hydraulic system, smooth and slient operation.

●The leg section is air spring adjustment.

●Made of full premium 304 stainless steel.

Specification:

Demensions:	2100*550mm
Height Adjustment(electric)：	700-1000mm
Trendelenburg(electric)：	±30°
Lateral Tilt(electric)：	±20°
Back Section (electric)：	+75°/-35°
Head Board (manual)：	+60°/-90°
Leg Board (manual)：	+15°/-90°
Table Top Longitudinal Moving(electric):	300mm
Build-in Kidney Elevator(manual)：	0-120mm
