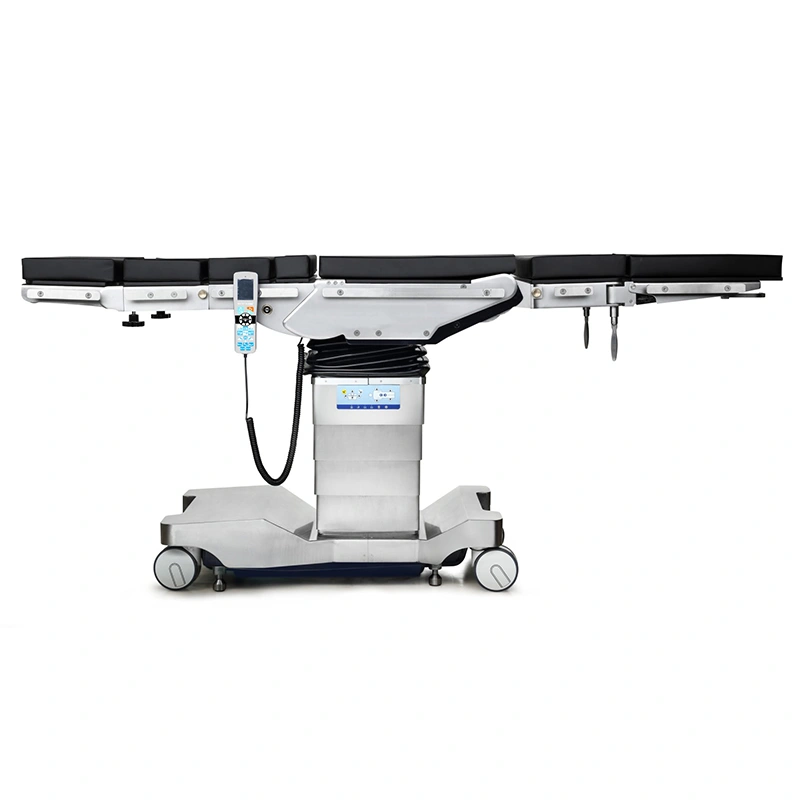

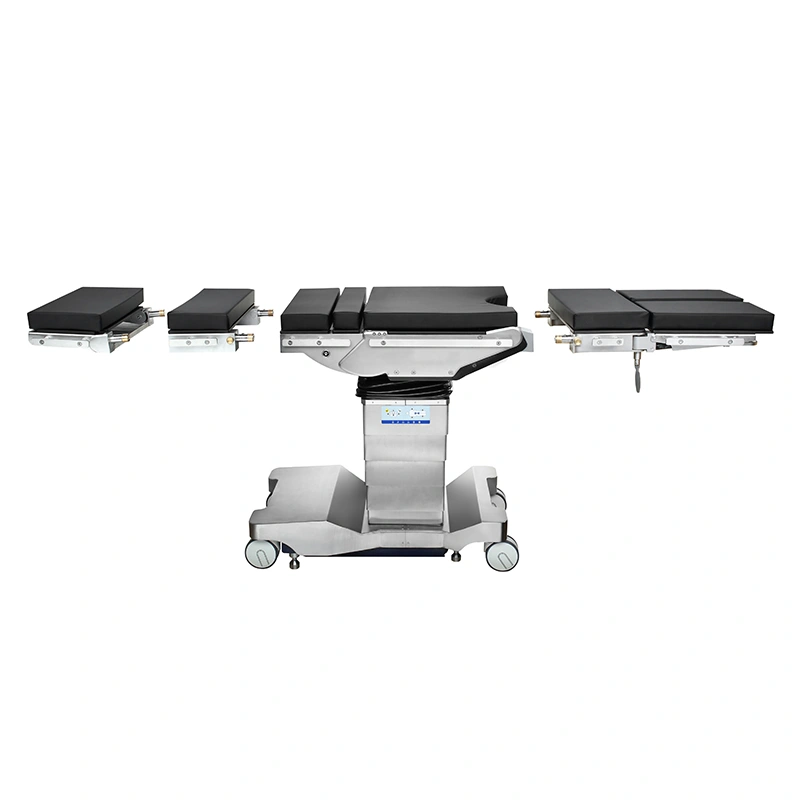

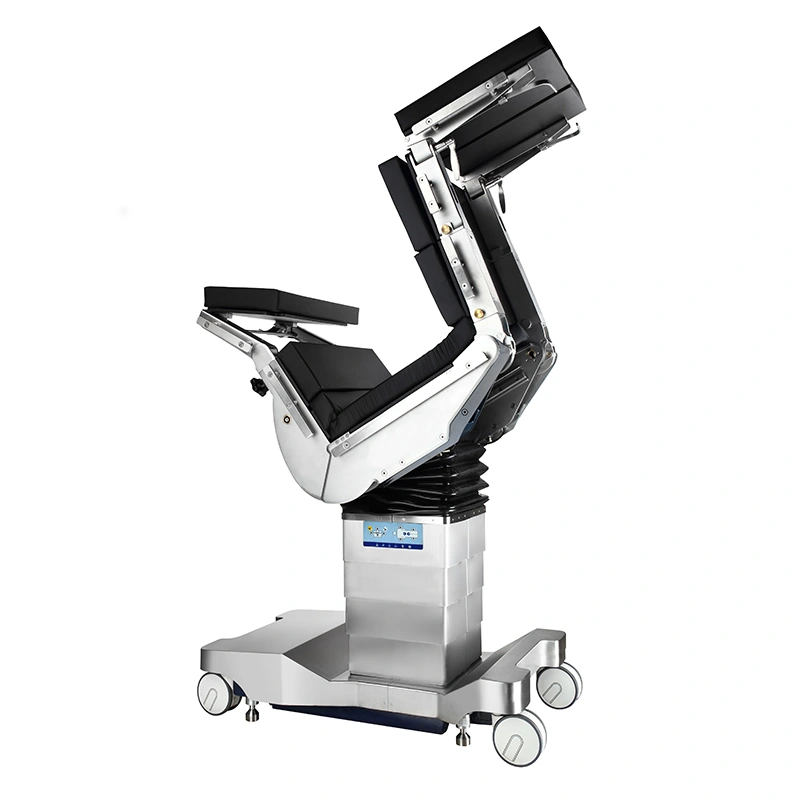

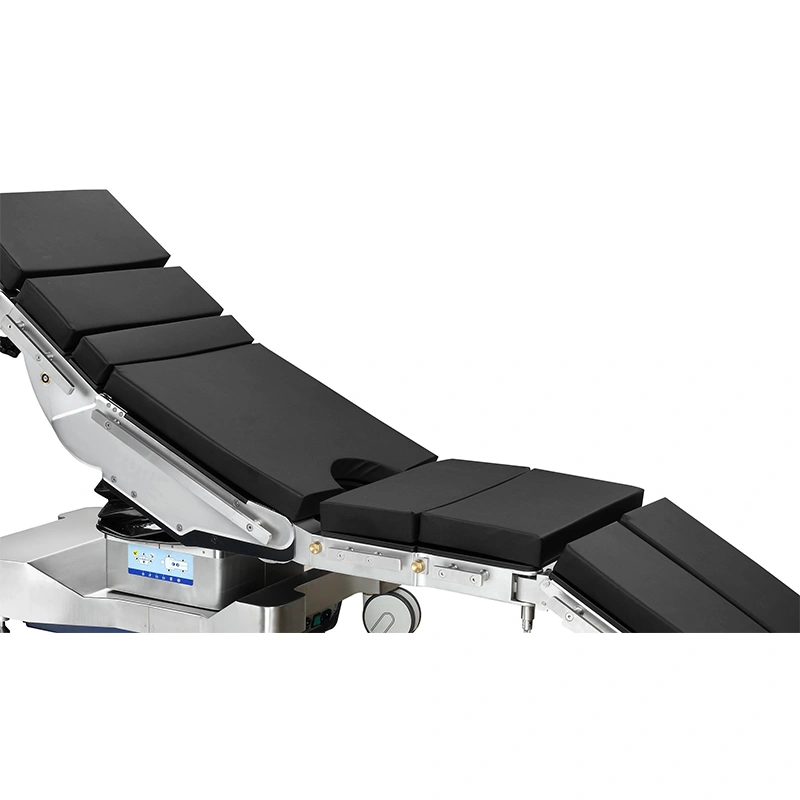

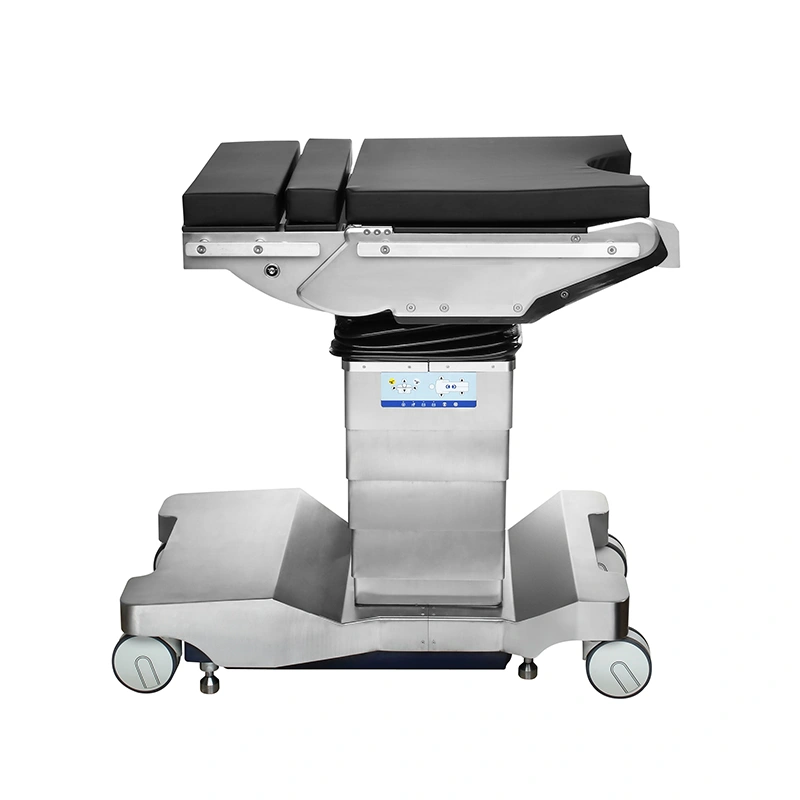

FYE800 Electro-Hydraulic Operating Table

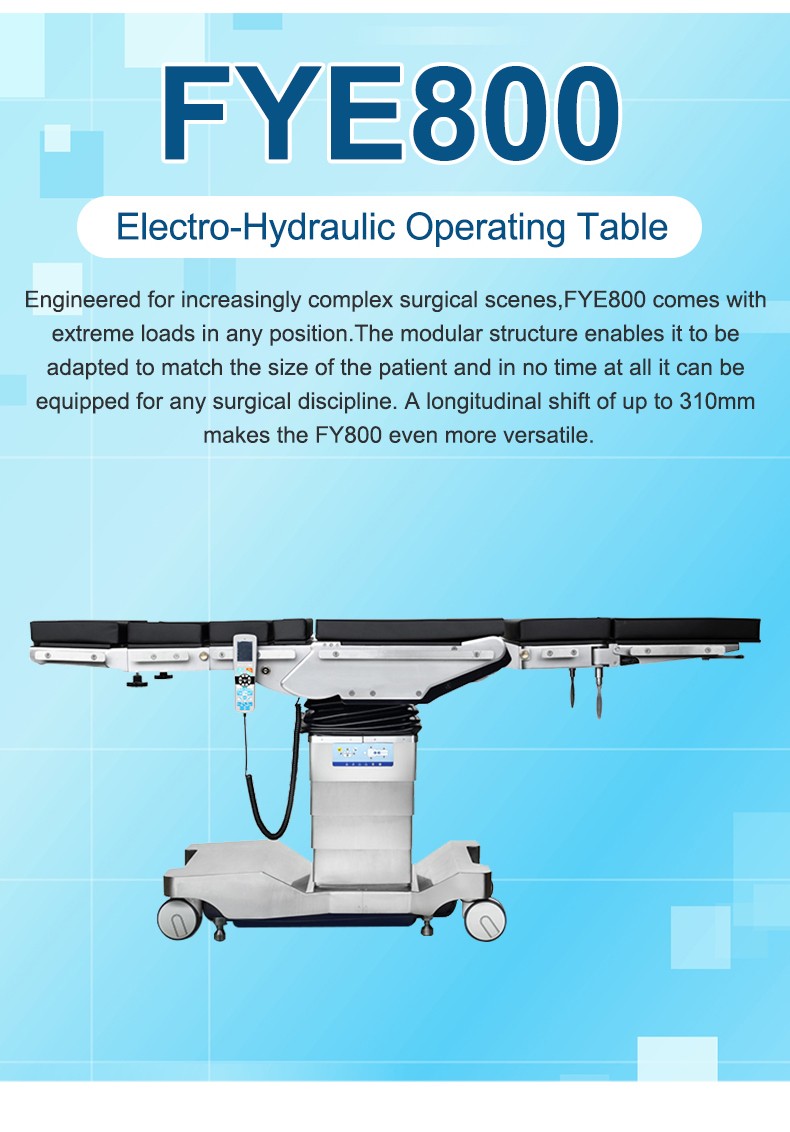

Engineered for increasingly complex surgical scenes,FYE800 comes with extreme loads in any position.The modular structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. A longitudinal shift of up to 310mm makes the FY800 even more versatile.

inquiry

Description

FYE800 Product Parameters

1. Table length/width:	≥2100/≥550mm
2. Table top minimum/lifting stroke:	≤550/≥500mm

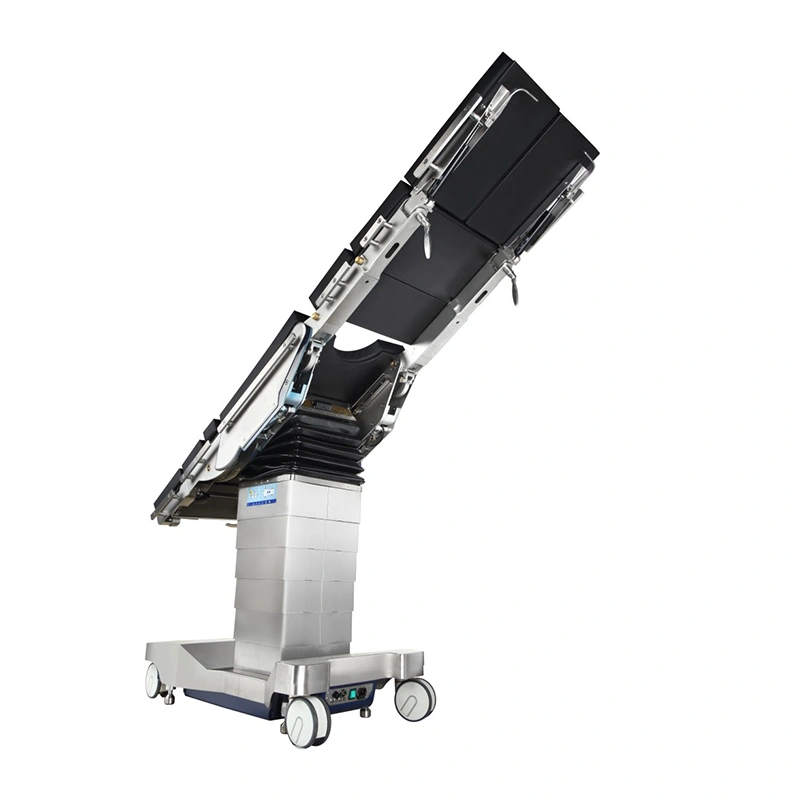

3. Table tilt forward/backward angle:	≥35°/≥35°
4. Table tilt left/right angle:	≥25°/≥25°

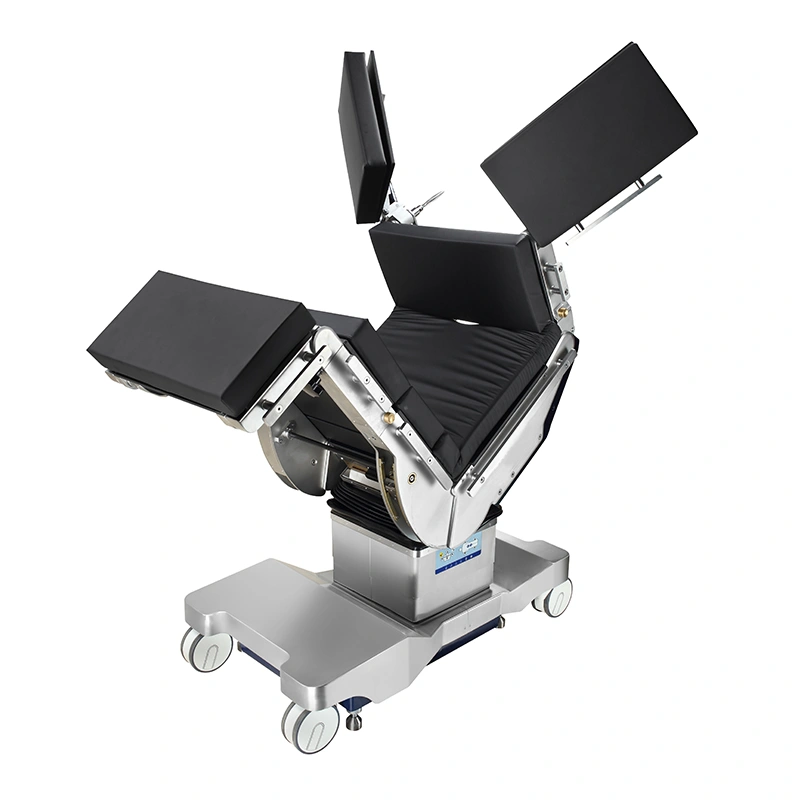

5. Headboard folding up/down angle/reverse folding:	≥40°/≥90°/≥40°
6. Electric leg board folding up/down:	≥80°/≥90°
7. Mechanical push plate folding down/out:	≥90°/≥90°
8. Fold up/down angle of the back panel:	≥90°/≥40°
9. Waist bridge lift:	≥120mm
10. Pan：	≥310mm
11. One click buckling/anti buckling angle:	≥220°/≤100°
12. Power voltage, power frequency, power capacity	220V,50Hz,1.0 kW
