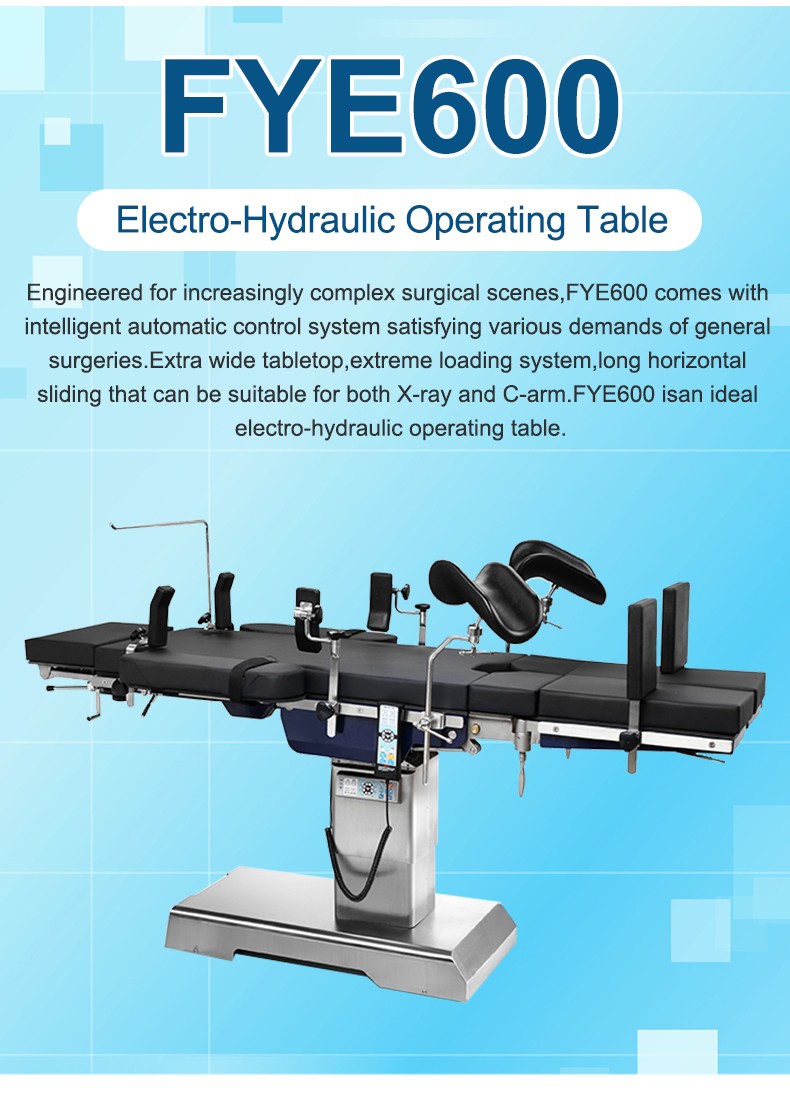

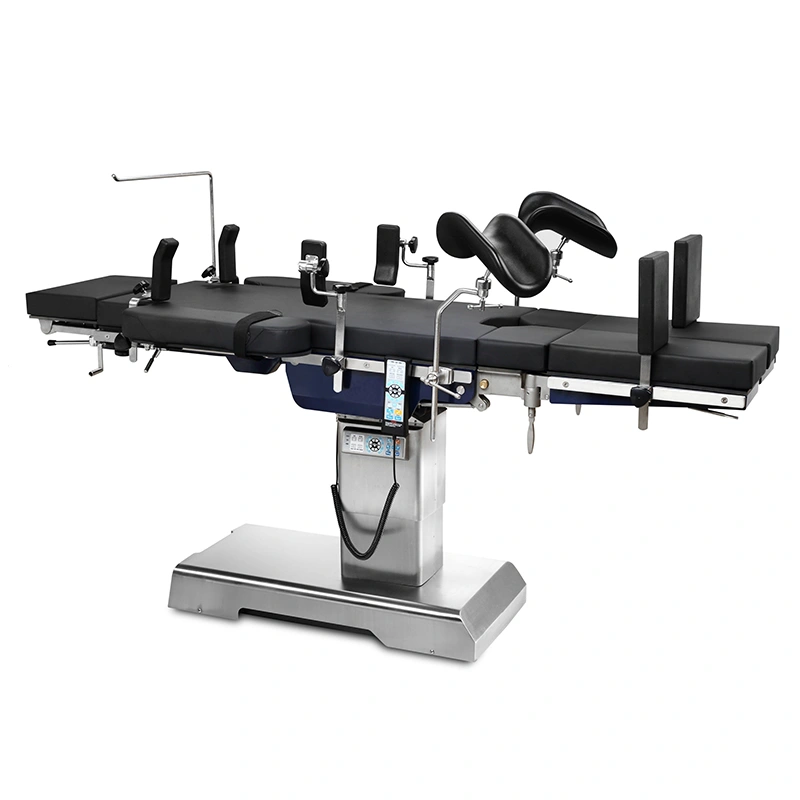

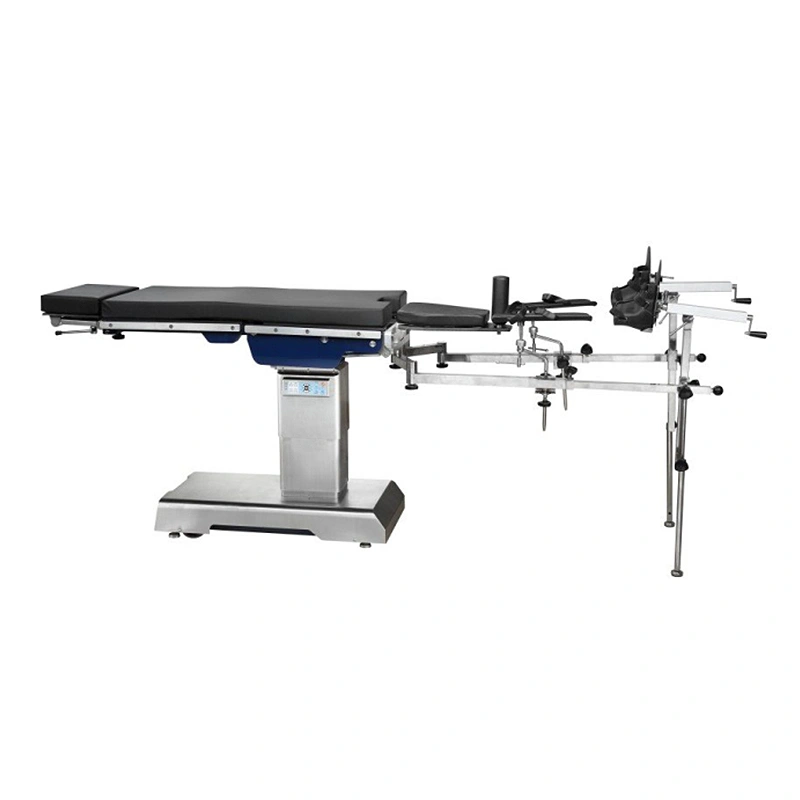

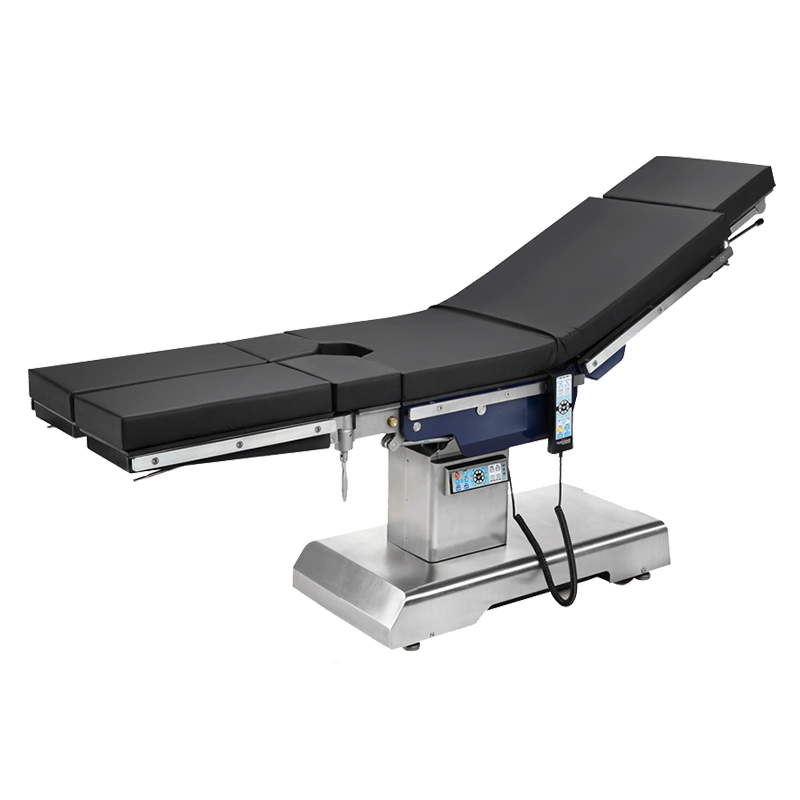

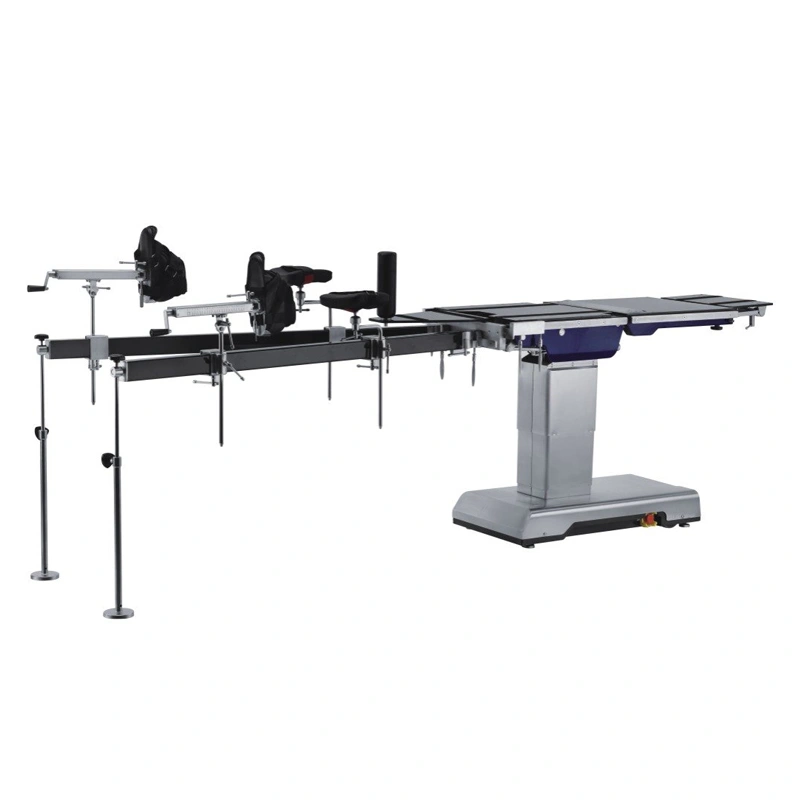

FYE600 Electro-Hydraulic Operating Table

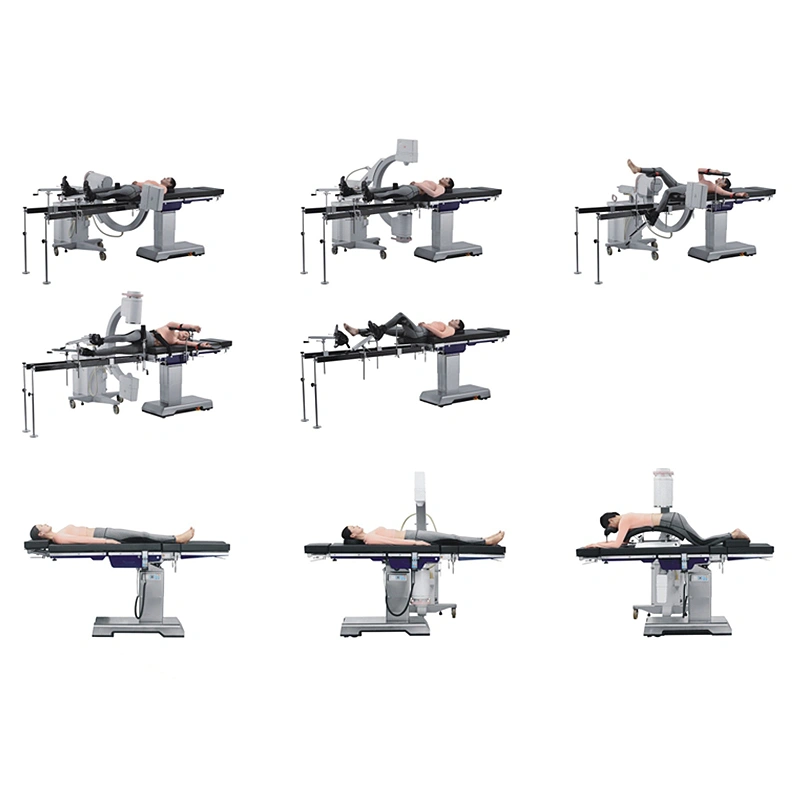

Engineered for increasingly complex surgical scenes,FYE600 comes with intelligent automatic control system satisfying various demands of general surgeries.Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.FYE600 isan ideal electro-hydraulic operating table.

inquiry

Description

FYE600 Product Parameters

1. Table length/width:	≥2170/≥550mm
2. Table top minimum/lifting stroke:	≤690/≥410mm
3. Table tilt forward/backward angle:	≥30°/≥30°
4. Table tilt left/right angle:	≥20°/≥20°
5. Head plate folding up/down angle:	≥40°/≥90°

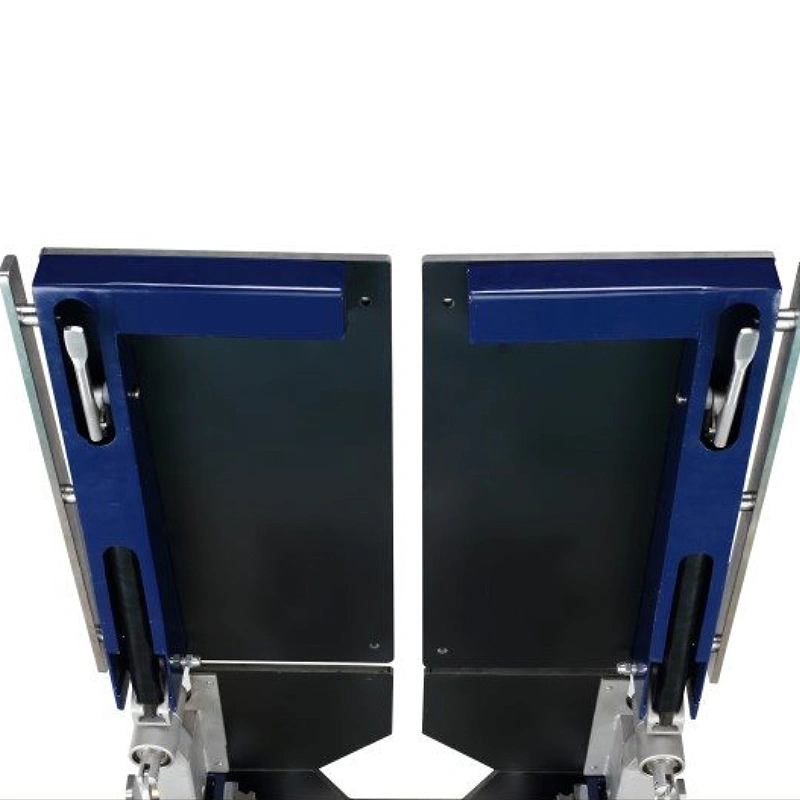

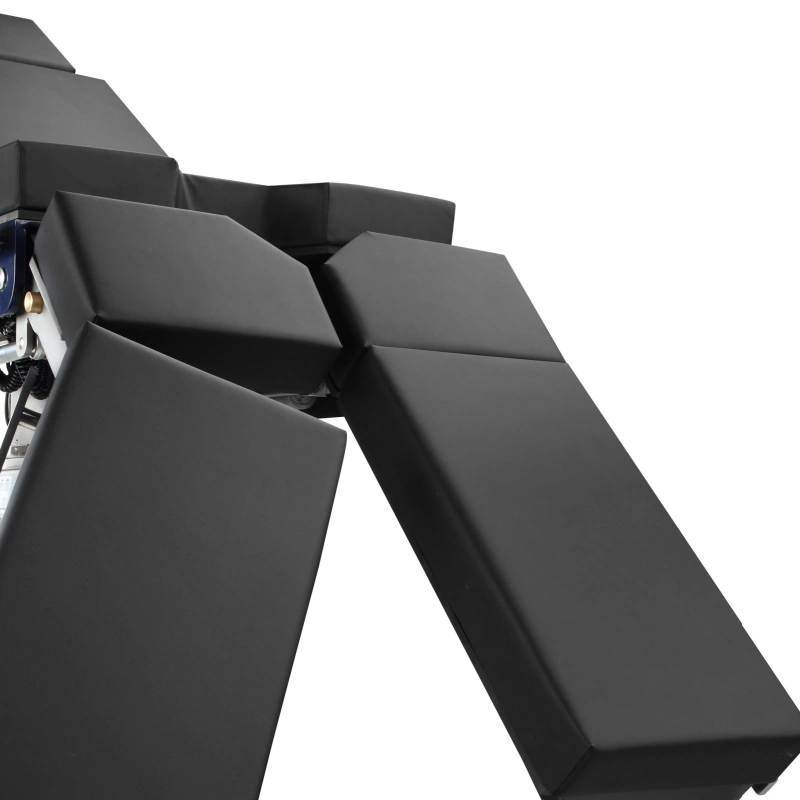

6. Leg board folding up/leg board folding down/external folding angle:	≥15°/≥90°/≥90°
7. Fold up/down angle of the back panel:	≥90°/≥40°

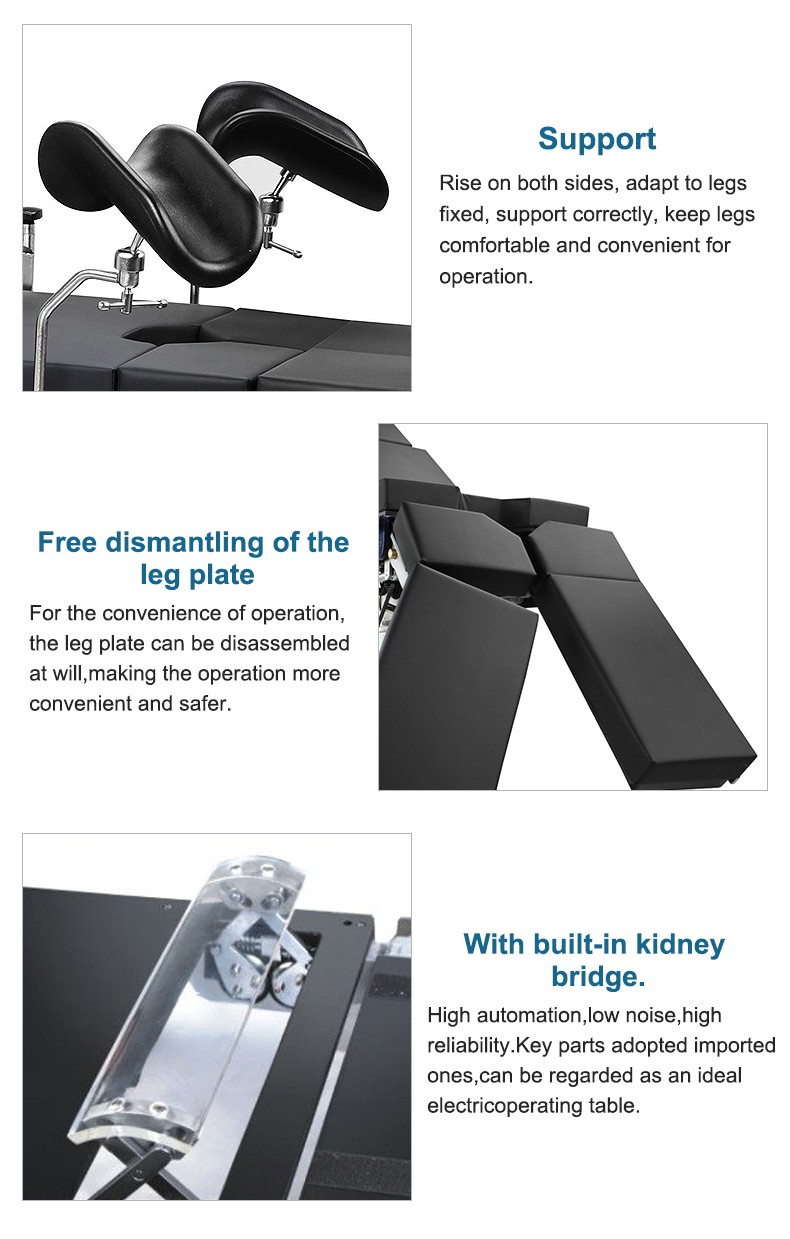

8. Waist bridge lift:	≥110mm
9. Pan:	≥350mm
10. Power voltage, power frequency, power capacity	220V, 50Hz, 1.0kW
