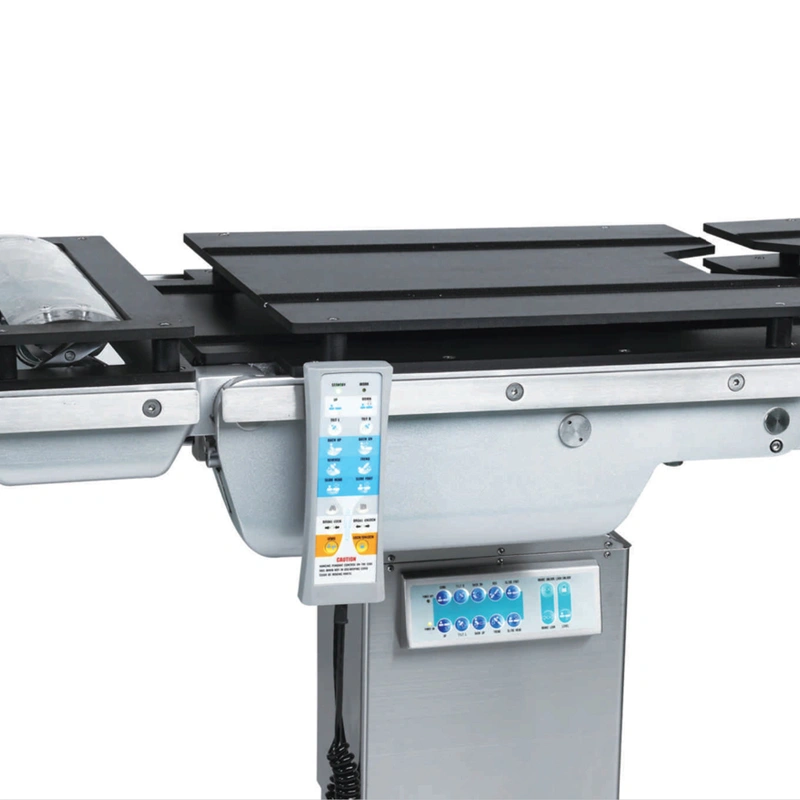

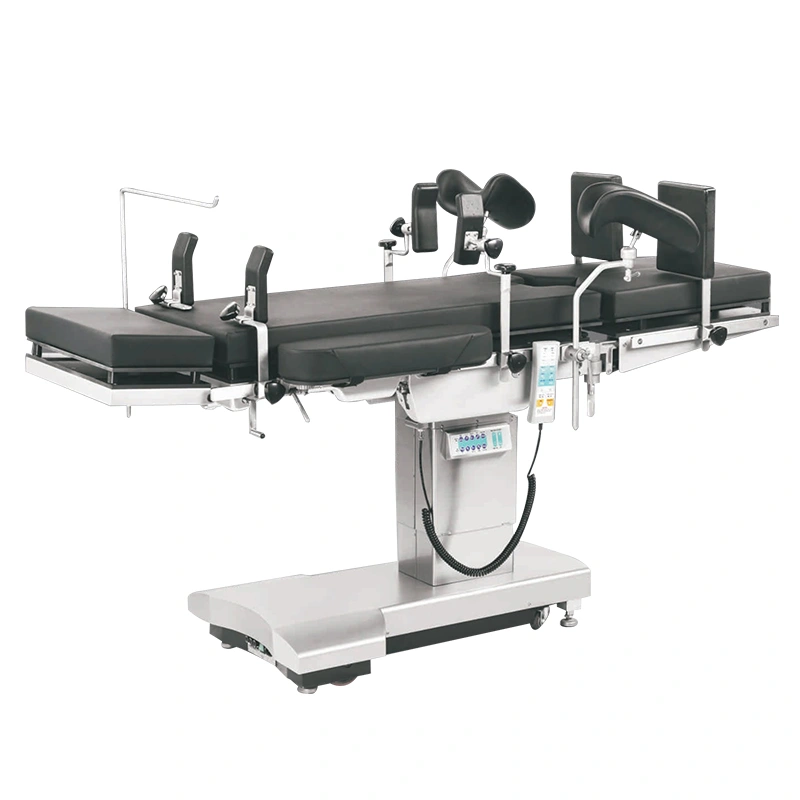

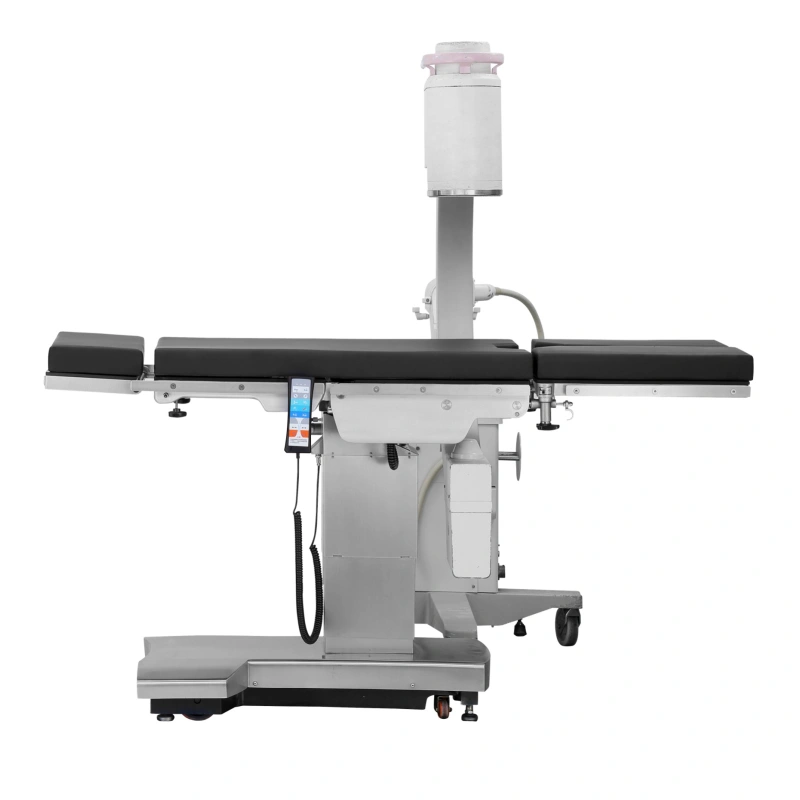

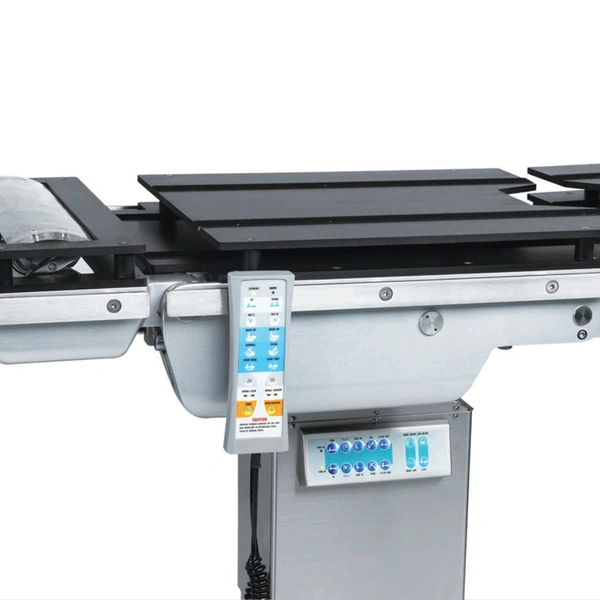

FYE700 Electro-Hydraulic Operating Table

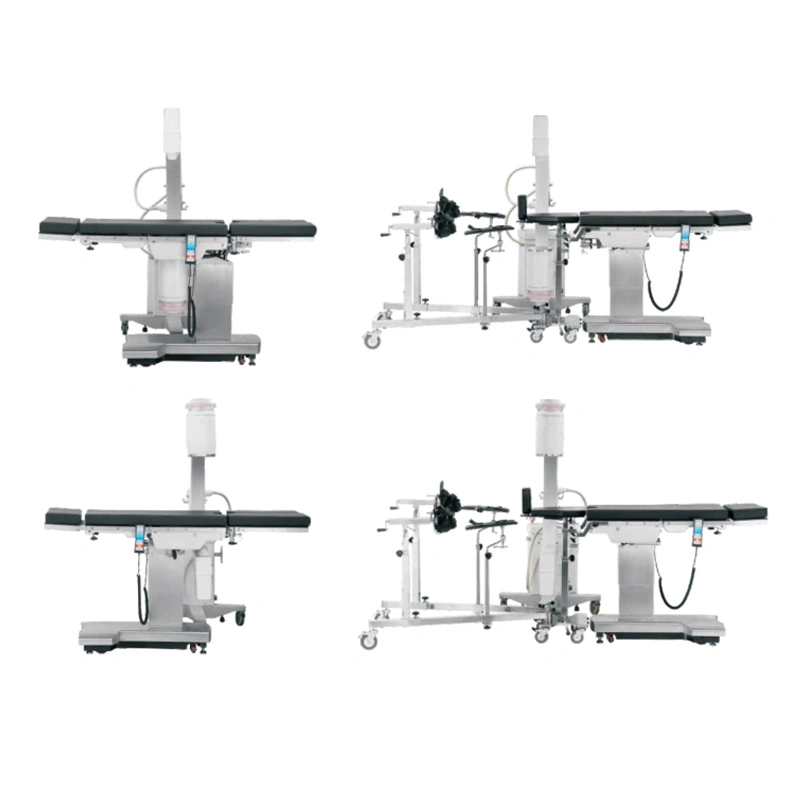

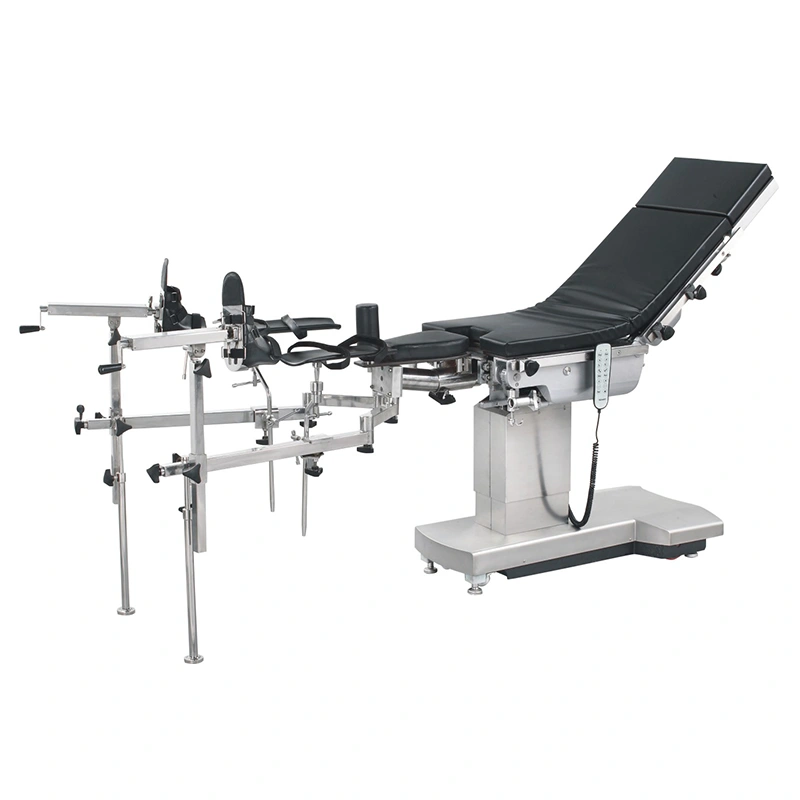

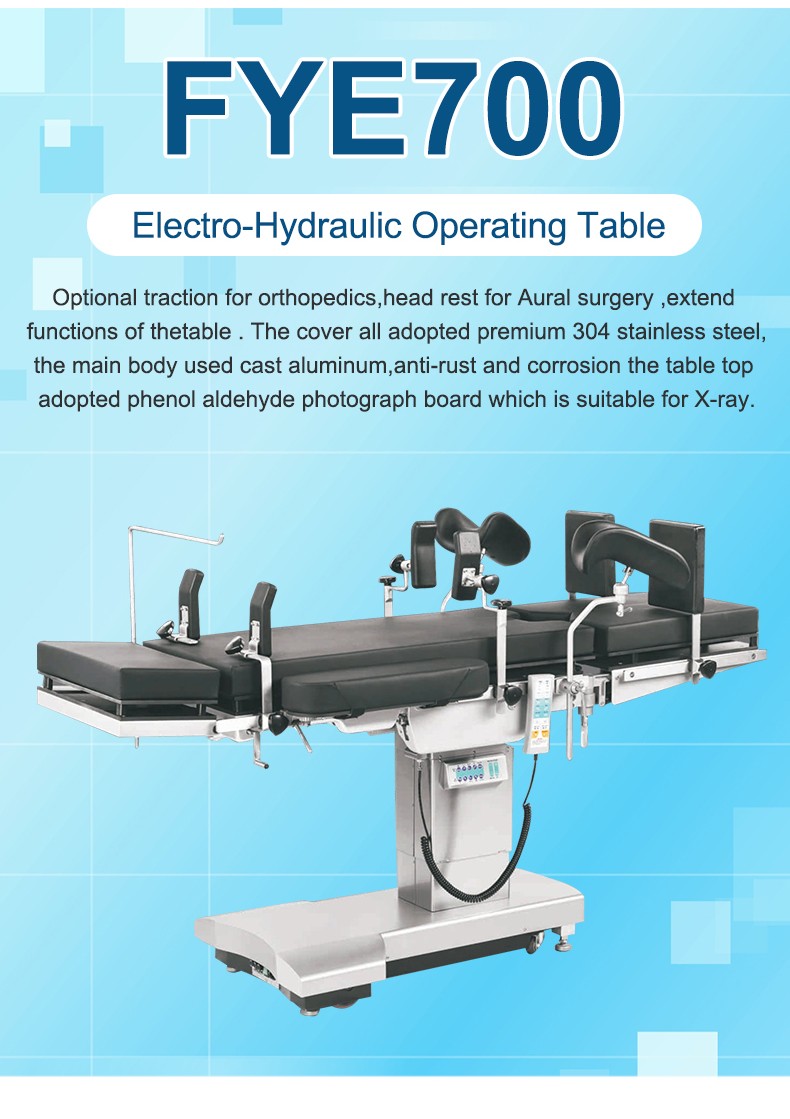

Optional traction for orthopedics,head rest for Aural surgery ,extend functions of thetable. The cover all adopted premium 304 stainless steel, the main body used cast aluminum,anti-rust and corrosion the table top adopted phenol aldehyde photograph board which is suitable for X-ray.

inquiry

Description

FYE700 Product Parameters

1. Table length/width:	≥1960/≥500mm
2. Table top minimum/lifting stroke:	≤690/≥410mm
3. Table tilt forward/backward angle:	≥30°/≥30°
4. Table tilt left/right angle:	≥18°/≥18°
5. Head plate folding up/down angle:	≥40°/≥90°
6. Leg board folding up/leg board folding down/external folding angle:	≥15°/≥90°/≥90°
7. Fold up/down angle of the back panel:	≥90°/≥40°

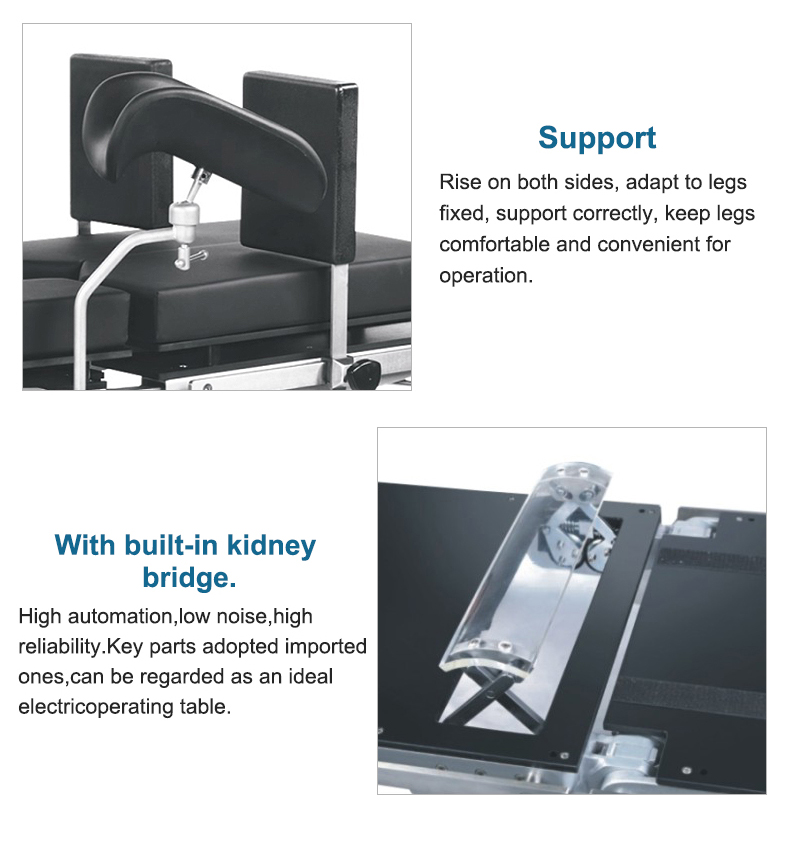

8. Waist bridge lift:	≥110mm
9. Pan：	≥350mm
10. Power voltage, power frequency, power capacity	220V, 50Hz, 1.0kW
