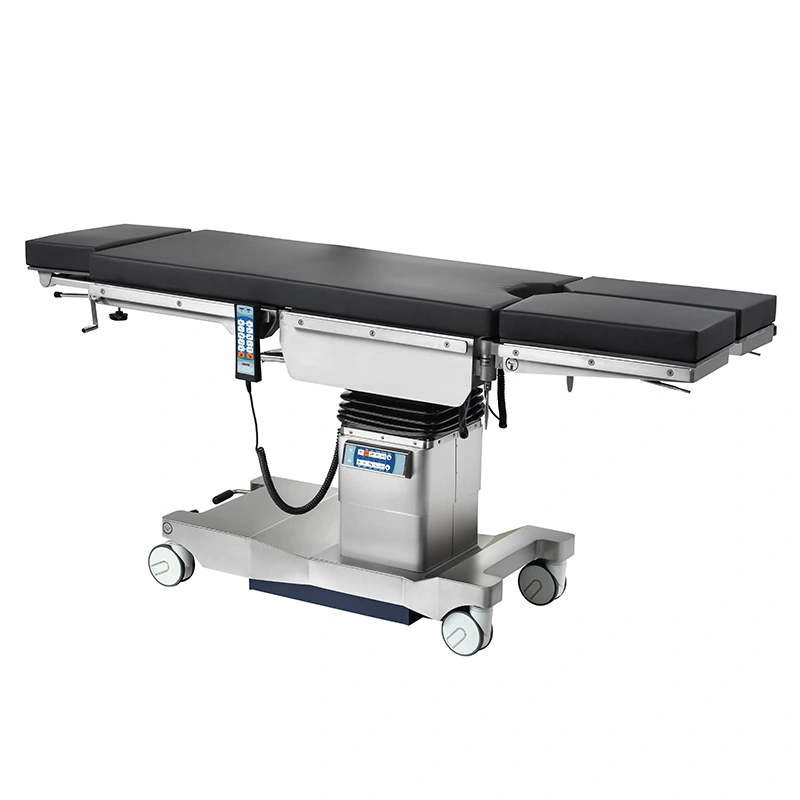

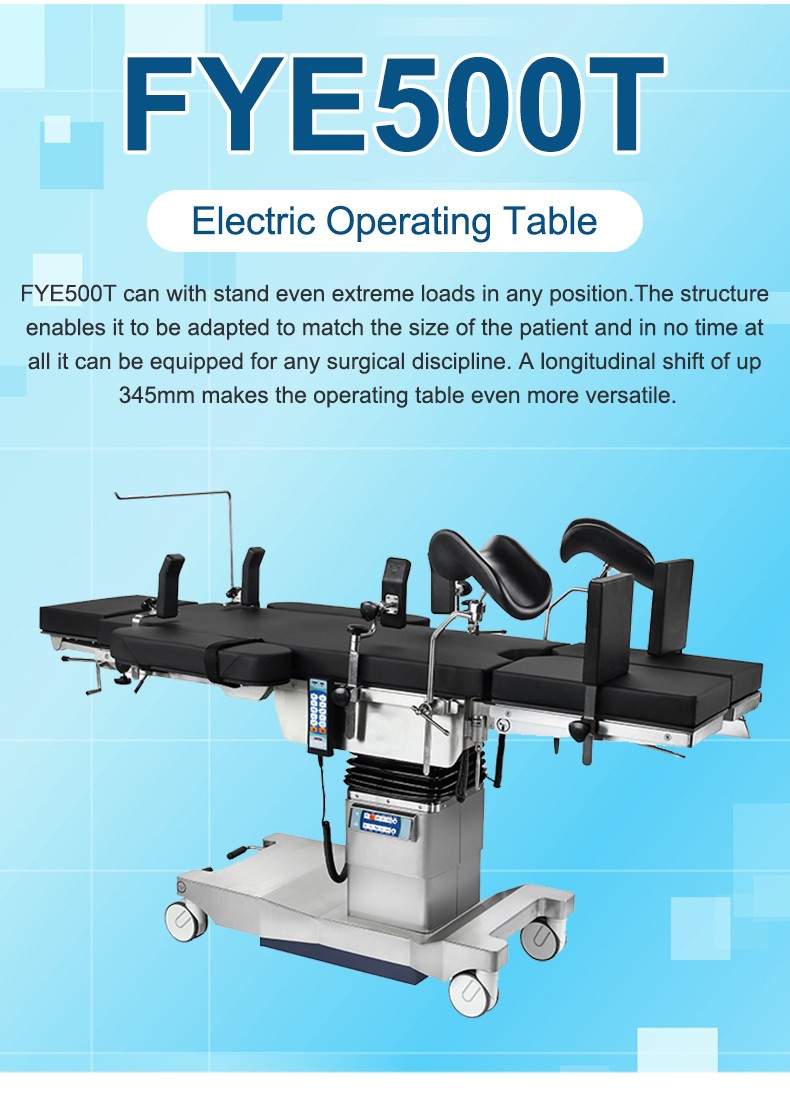

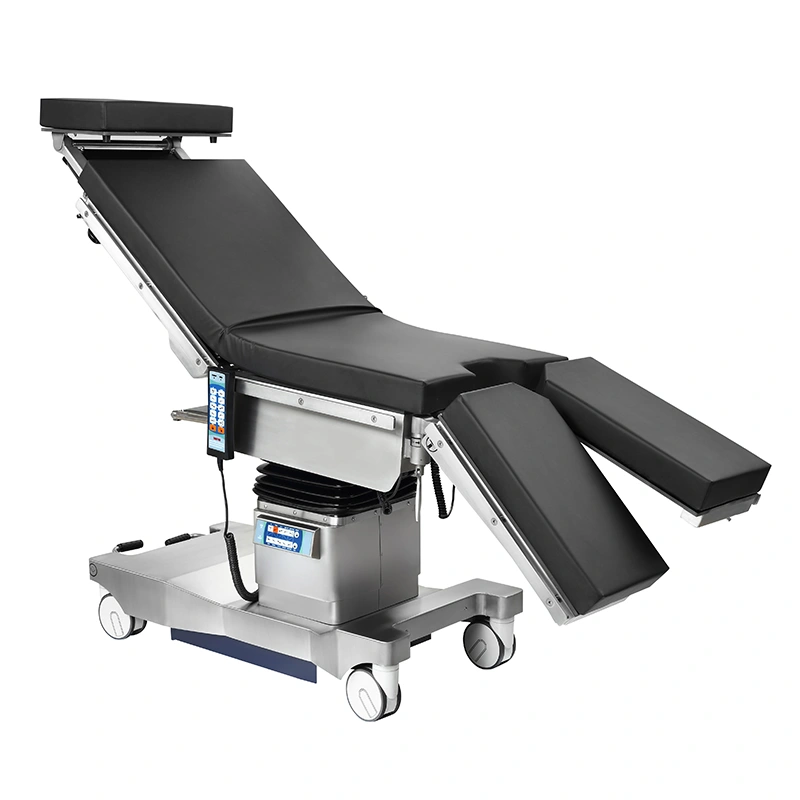

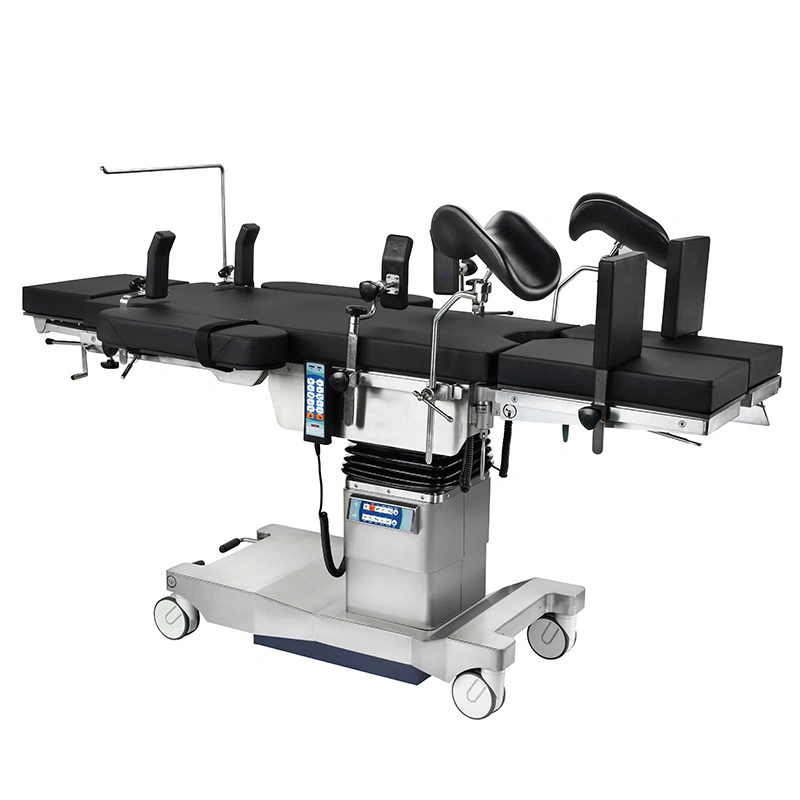

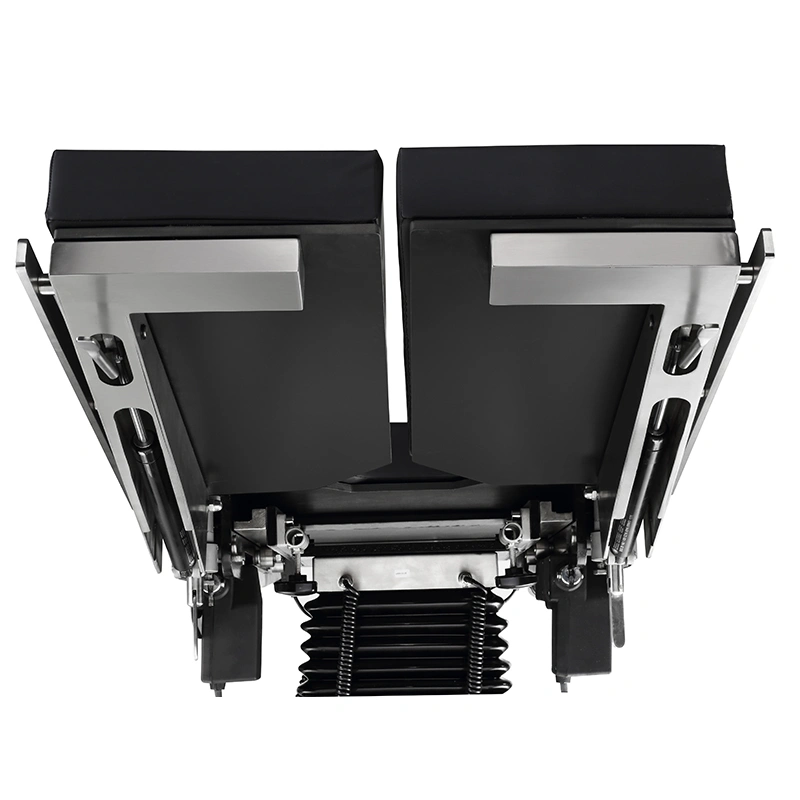

FYE500T Electric Operating Table

FYE500T can with stand even extreme loads in any position.The structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. A longitudinal shift of up

345mm makes the operating table even more versatile.

inquiry

Description

FYE500T Product Parameters

1. Table length/width:	≥2100/≥550mm
2. Table top minimum/lifting stroke:	≤710/≥300mm
3. Table tilt forward/backward angle:	≥25°/≥25°
4. Table tilt left/right angle:	≥15°/≥15°

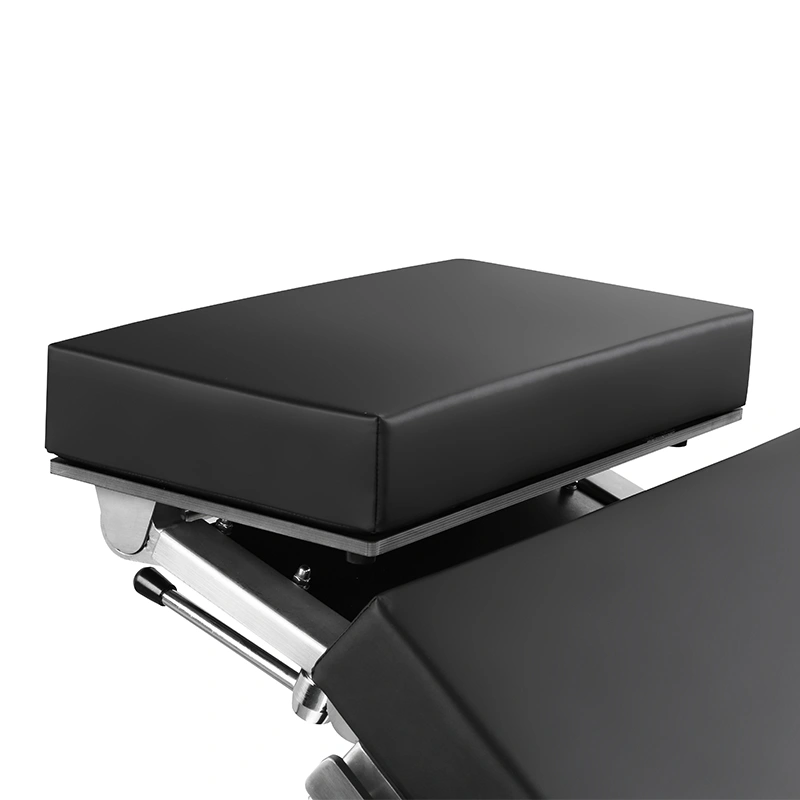

5. Head plate folding up/down angle:	≥40°/≥90°

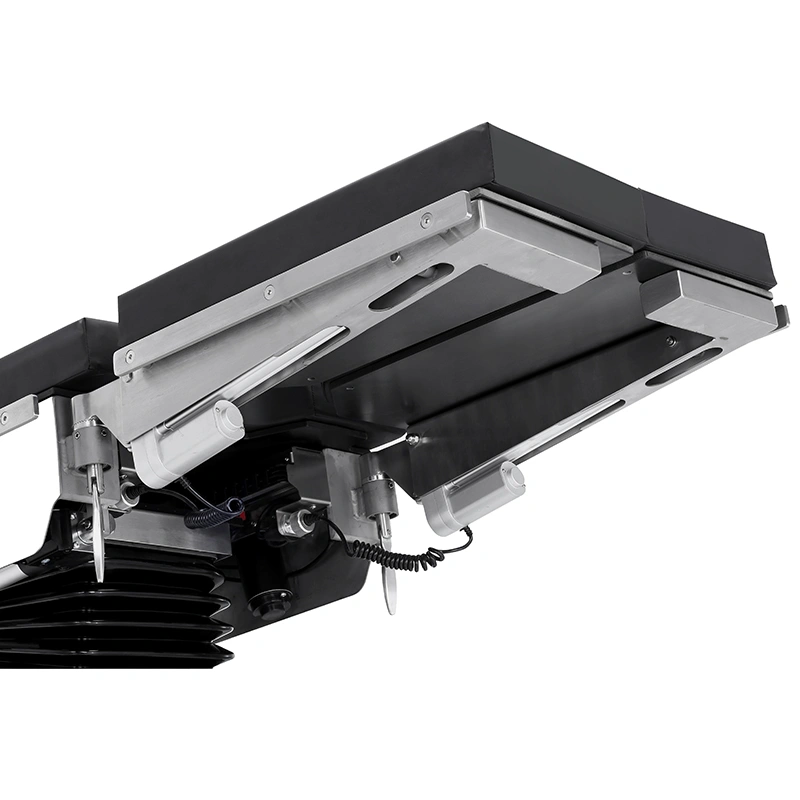

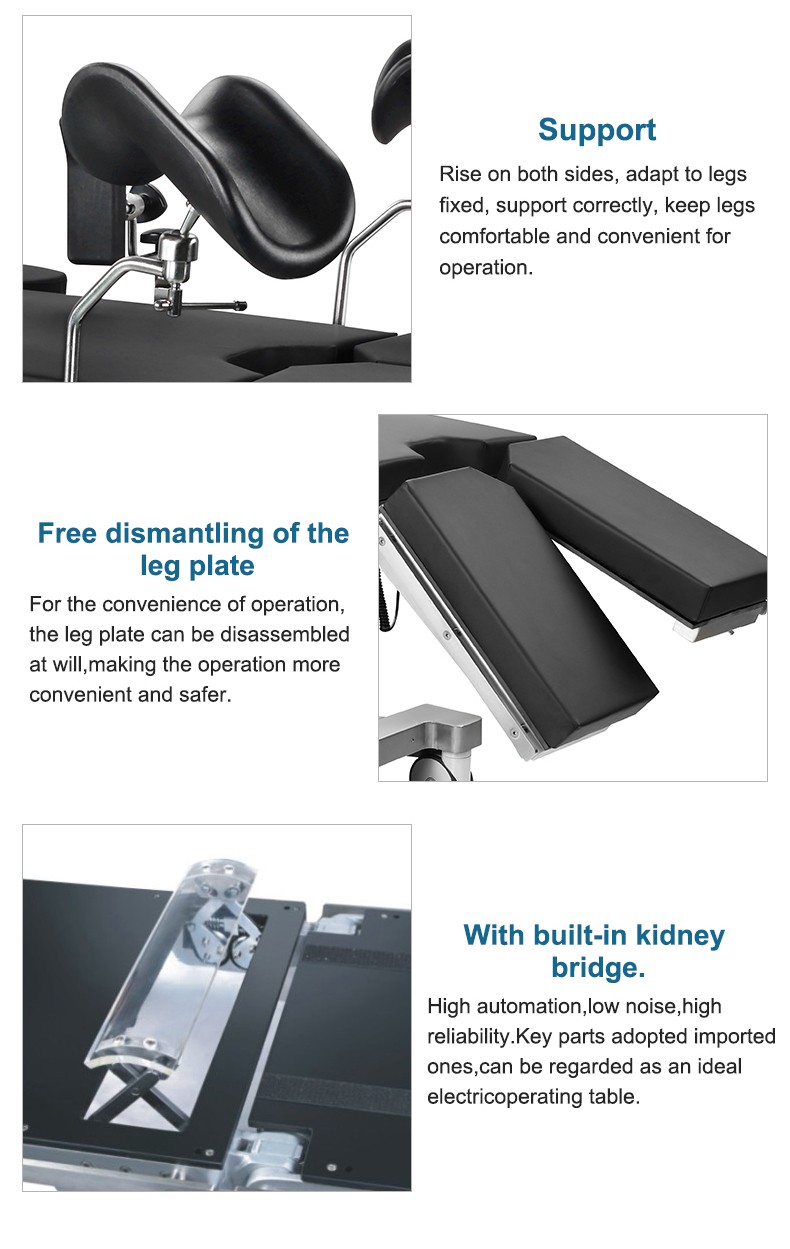

6. Leg board folding up/leg board folding down/external folding angle:	≥15°/≥90°/≥90°

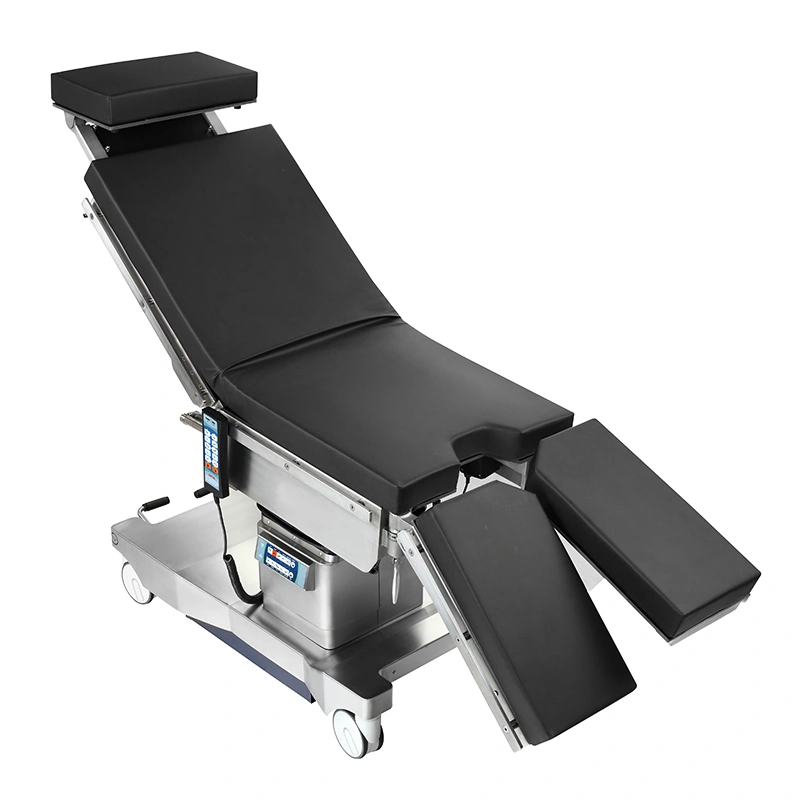

7. Fold up/down angle of the back panel:	≥80°/≥20°
8. Table translation:	≥350mm
9. Waist bridge lift:	≥110mm
10. Power voltage, power frequency, power capacity:	220V/110V,50Hz/60Hz,1.0kW
