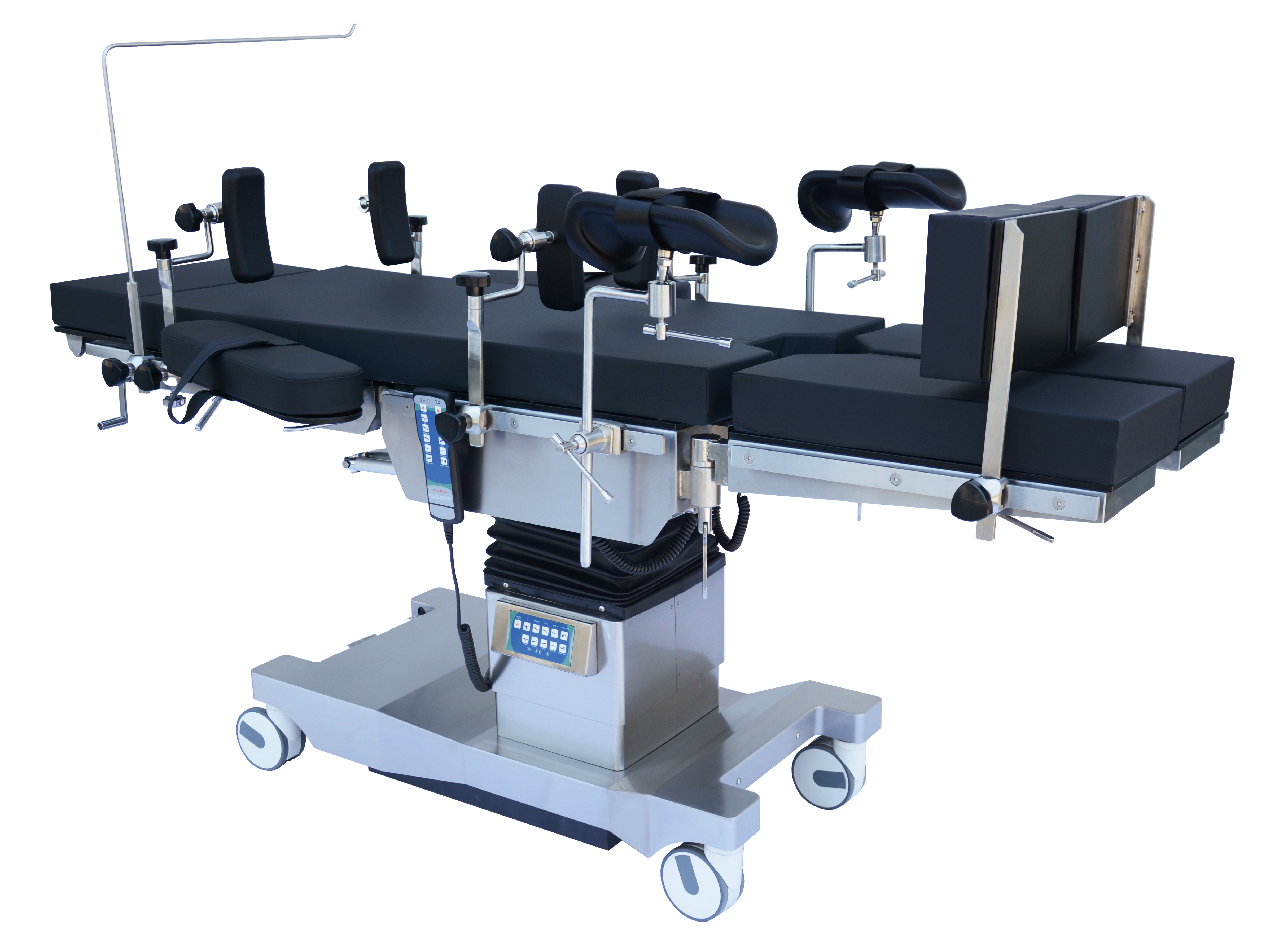

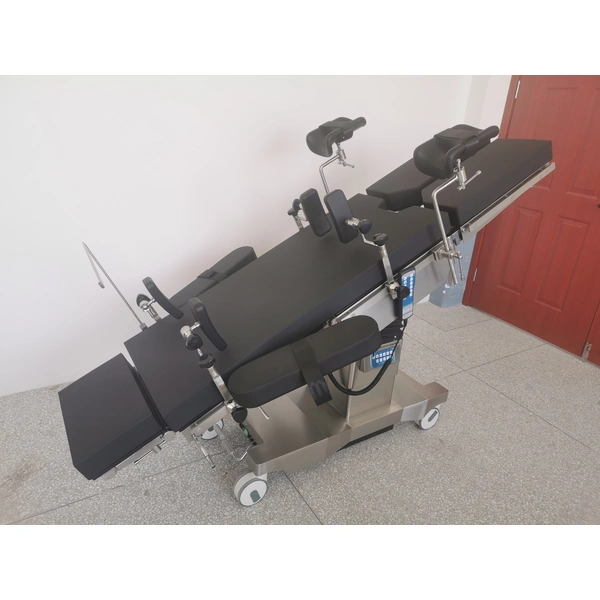

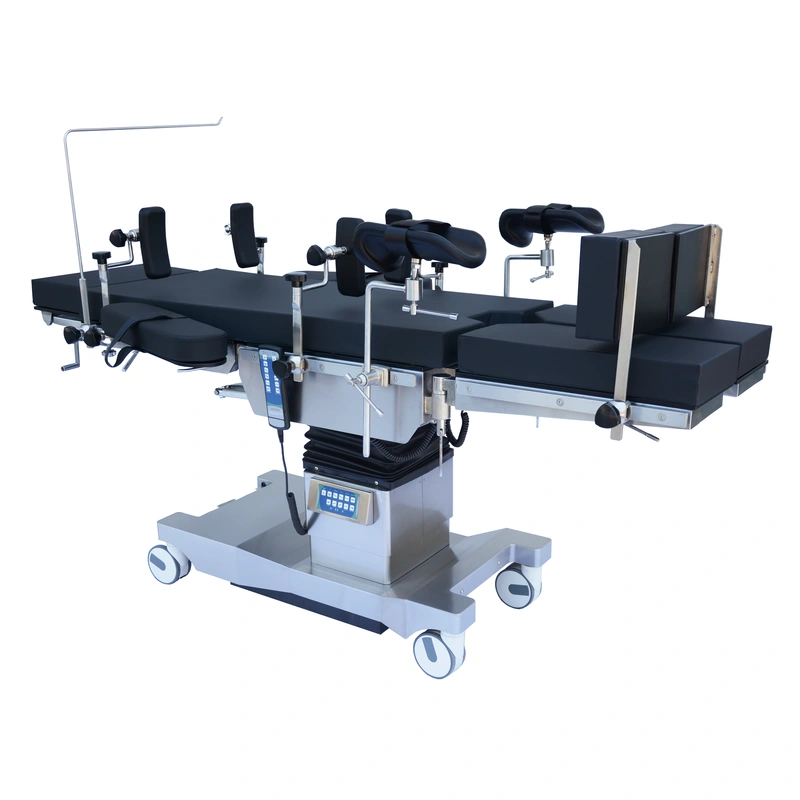

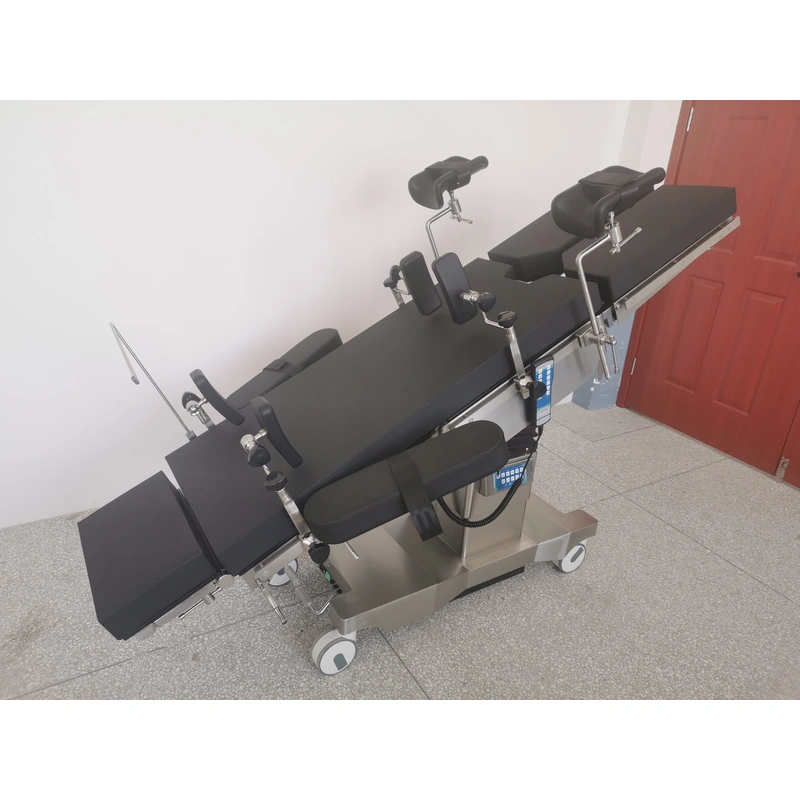

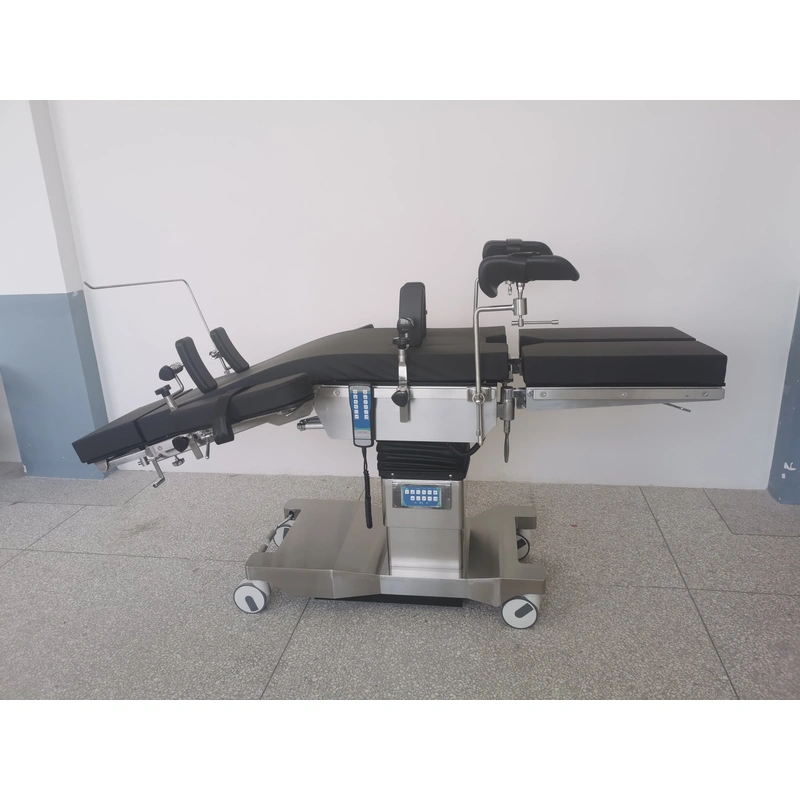

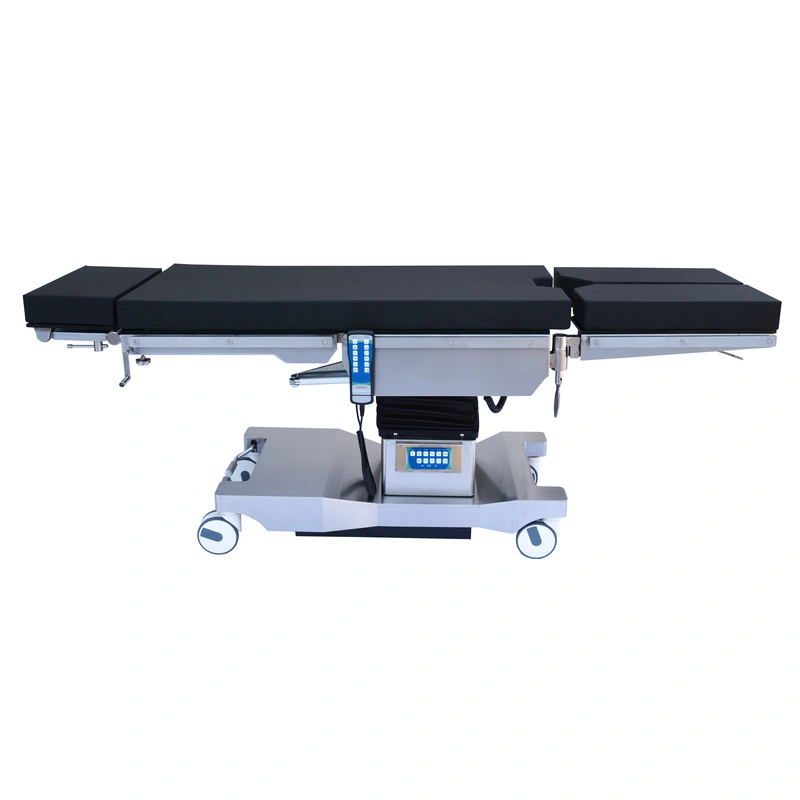

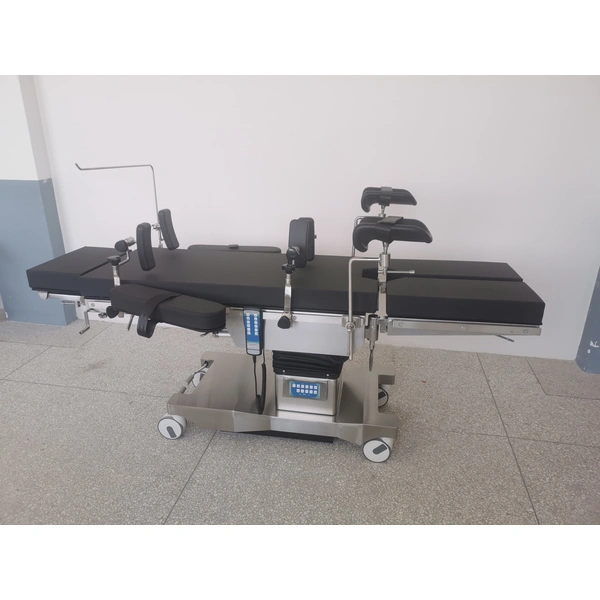

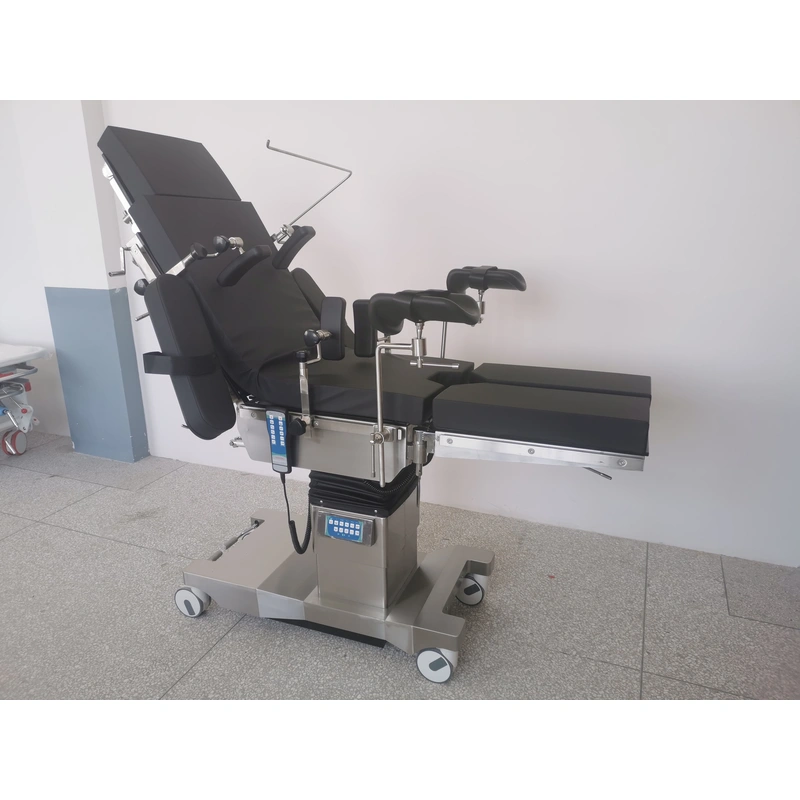

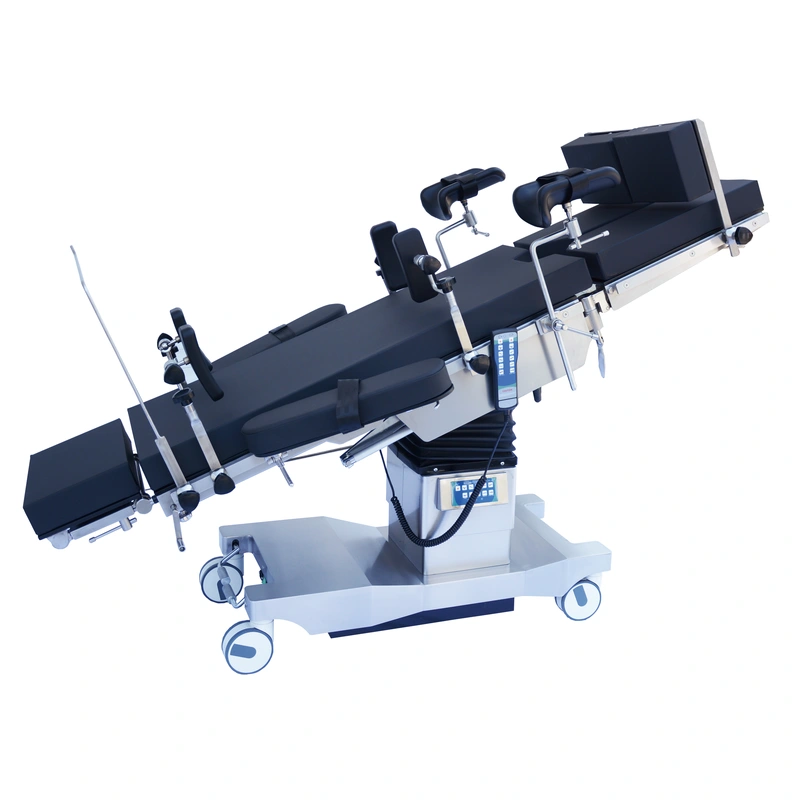

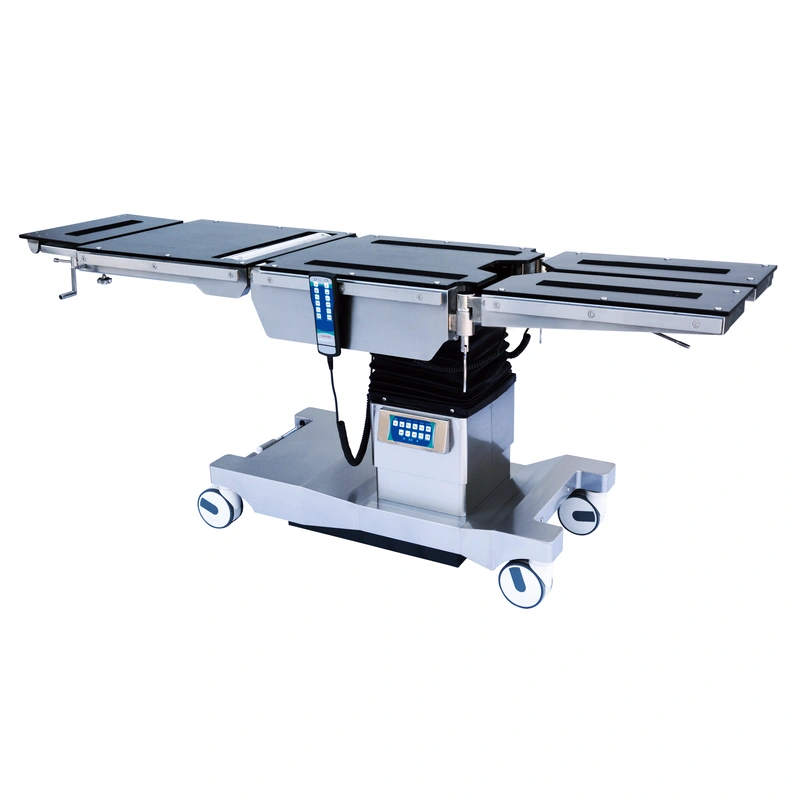

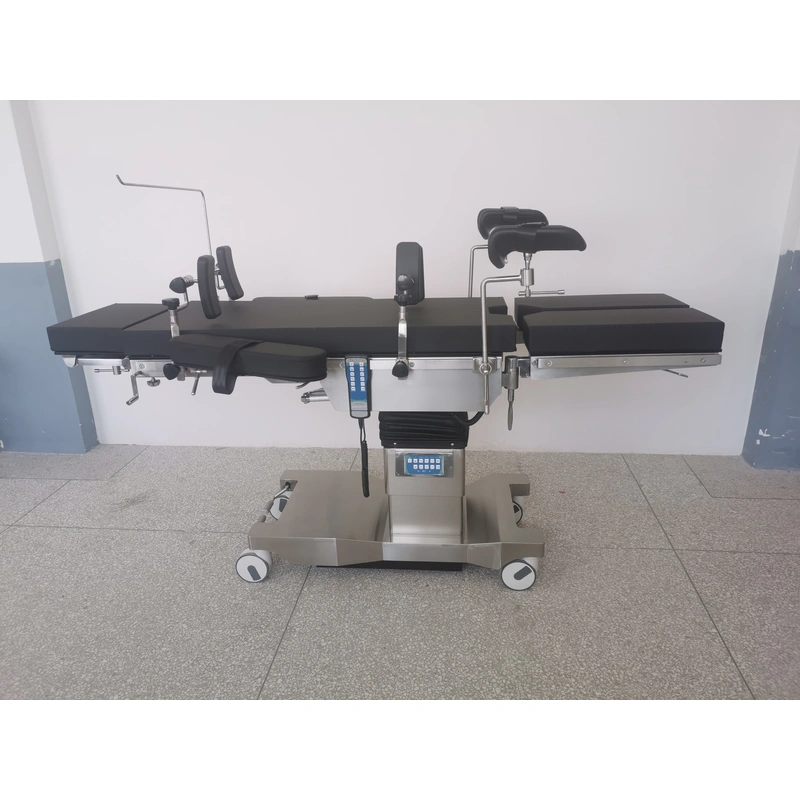

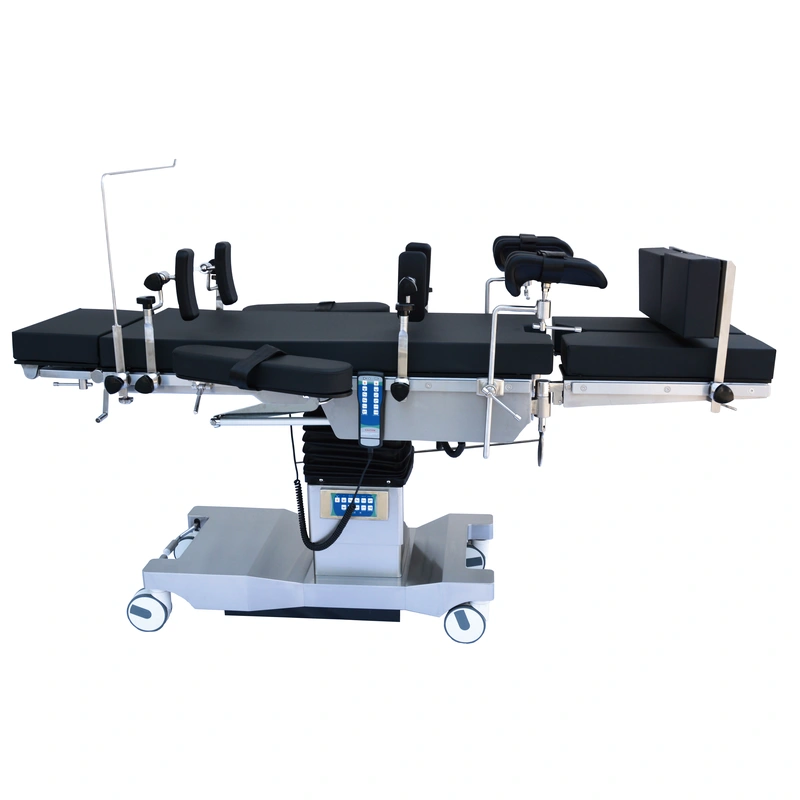

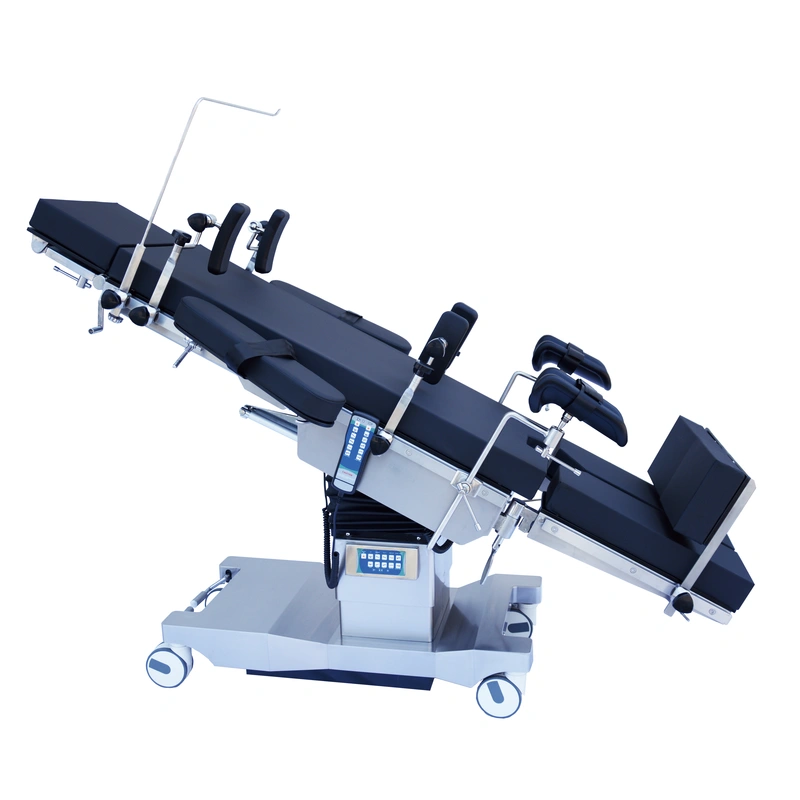

FY-D005 Electric Operating Table Intelligent Automatic Control System Extra Wide Tabletop Extreme Loading System Long Horizontal

D005 can withstand even extreme loads in any position. The structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. A longitudinal shift of up 350mm makes the operating table even more versatile.

Engineered for increasingly complex surgical scenes, YFD005 comes with intelligent automatic control system satisfying various demands of general surgeries. Extra wide tabletop, extreme loading system, long horizontal sliding that can be suitable for both X-ray and C-arm. YFD005 is an ideal electric operating table.

• Longitudinal slide up to 350mm for free access to C arm

• Extreme weight load capacity of 250kgs with highest safety and stability

• Memory pad with antistatic,waterproof design

• Standard override panel control makes the control safer

• Battery power for 50-80 operations


Description


Length

Width

Tabletop lowest height

Elevation range
≥2100mm550mm≤700mm300mm
Packaging and delivery
PackagingWooden case
Size140*74*103cm
G./N.W.290/240kg
Parameter
MovementsModel:C2003A

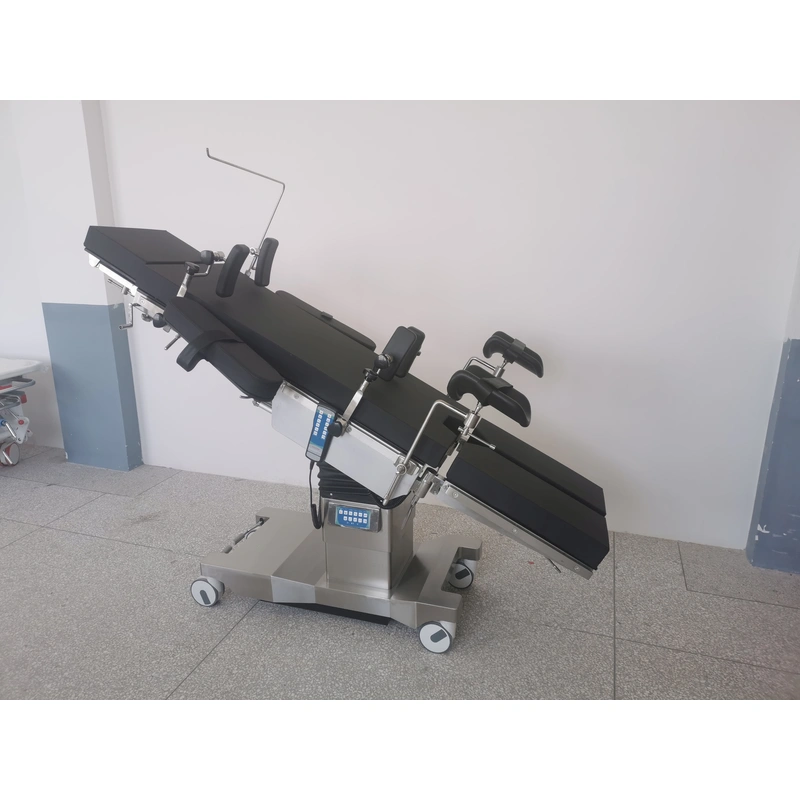

Tabletop trendelenburg
Reverse Trendelenburg≥25°
Trendelenburg≥25°
Lateral Tilt (Left And Right)≥15°

Head plate
Up≥90°
Down≥90°
Flexible≥40°

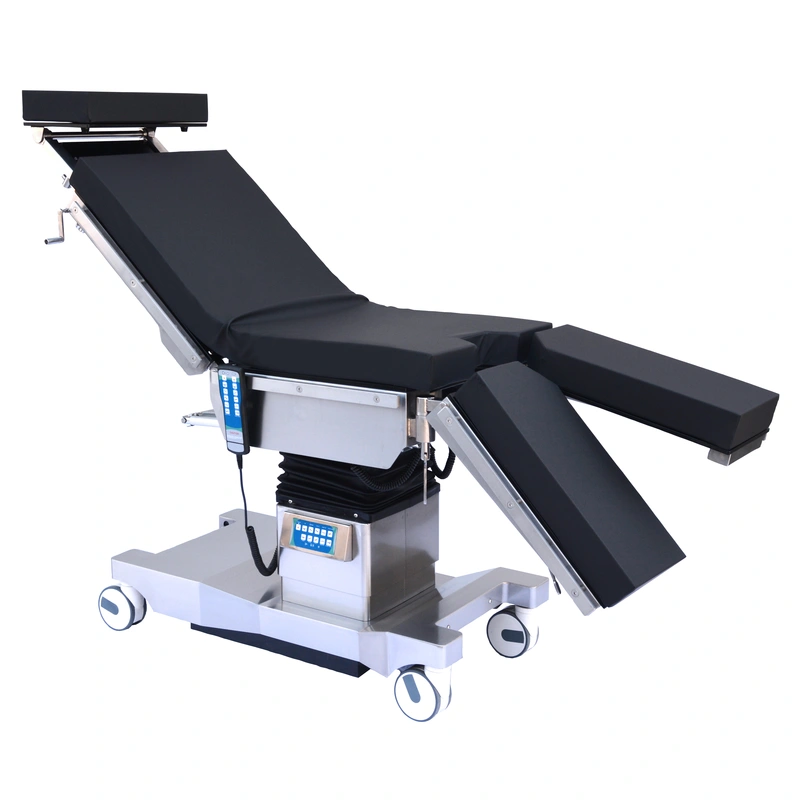

Back plate
Up≥80°
Down≥20°

Leg plate
Up≥15°
Down≥90°
Outward≥90°
Kidney Bridge Elevation≥120mm
Horizontal Sliding Range≥350mm
Disposition

Anaesthesia screen
1 piece
Shoulder support (cushion)
2 piece
Arm support(cushion)
2 piece

Body support(cushion)
2 piece
Leg support(cushion)
2 piece
Foot plate(cushion)
2 piece

Long Fixing Clamp
2 piece
Fixing Clamp
7 piece
Controller
1 piece

Hand-held operator
1 pieceMattress1 piece
Power line
1 piece
