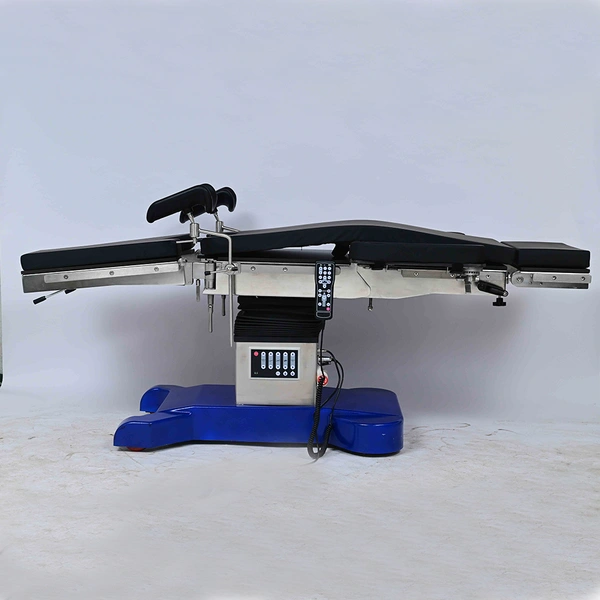

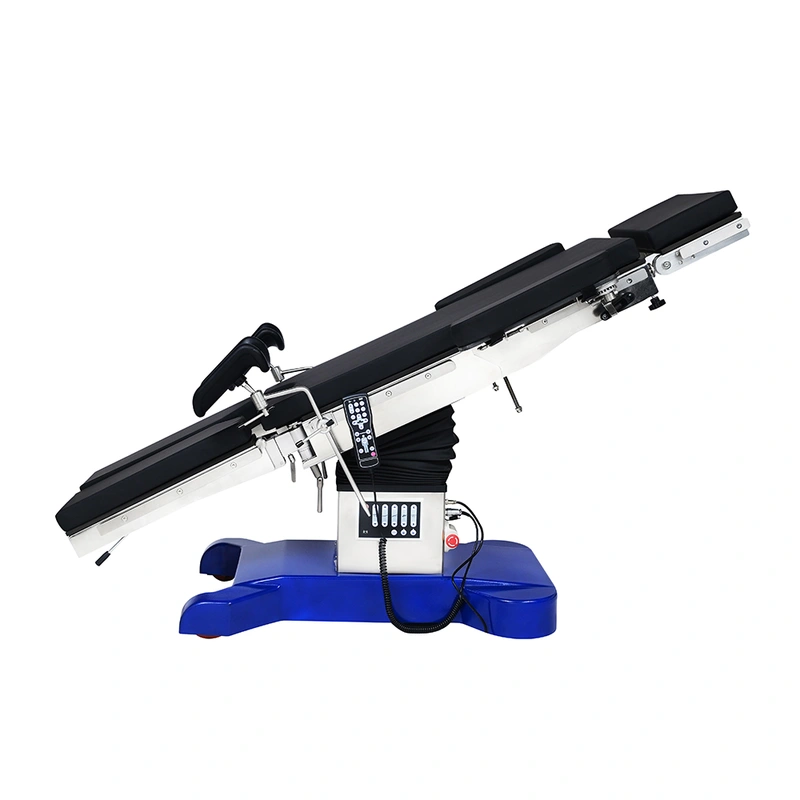

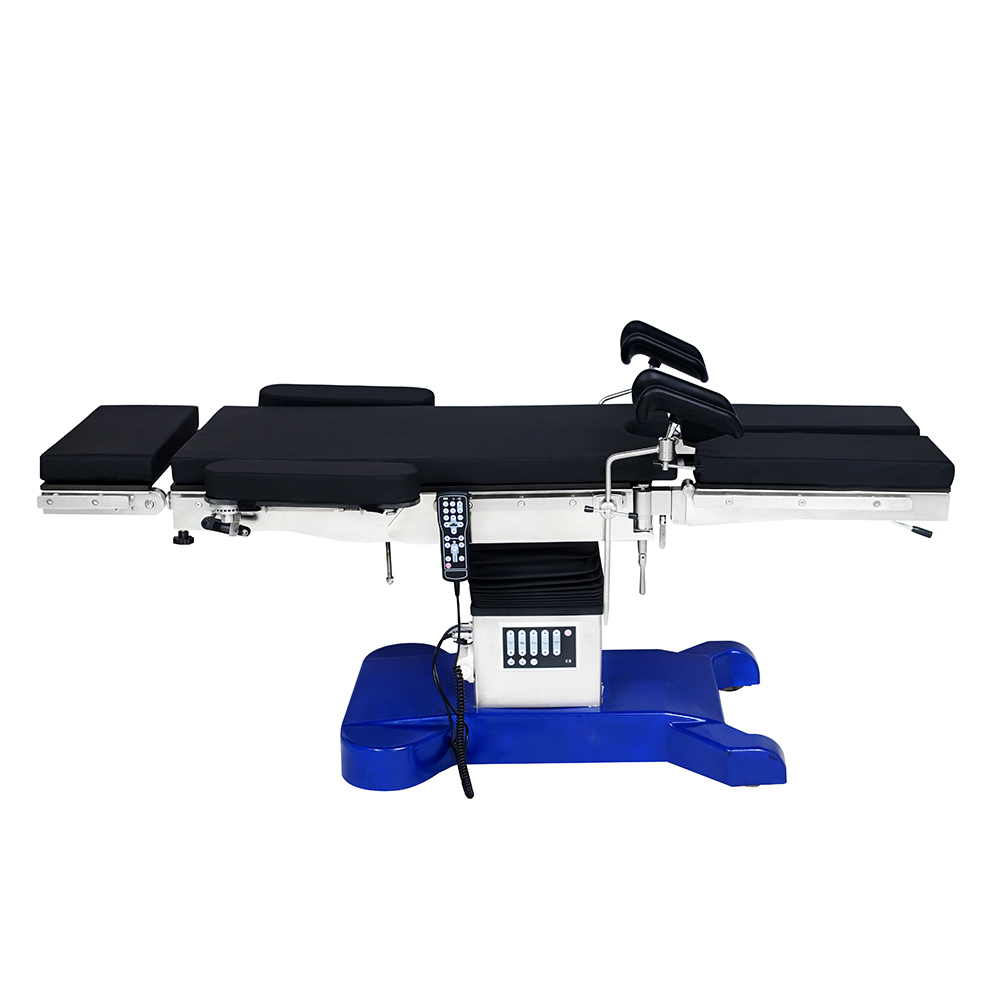

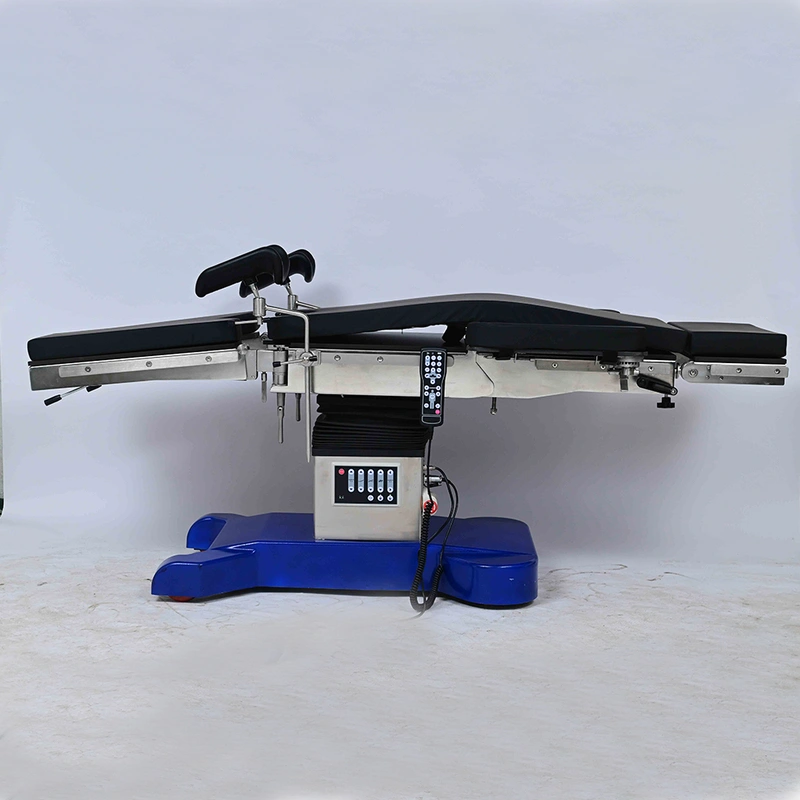

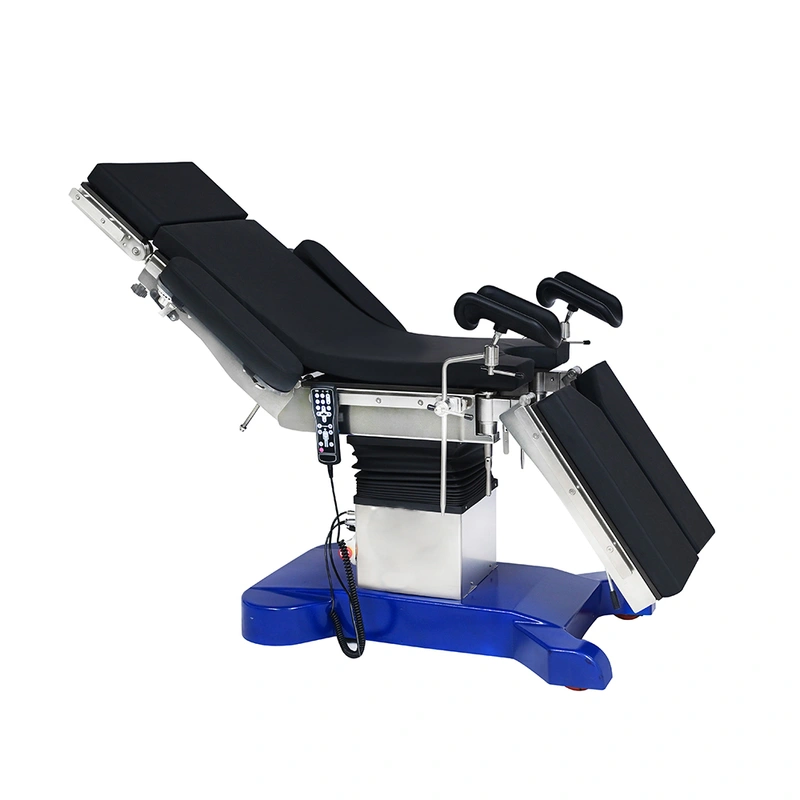

FY503E1 (5 ABS) Electric Operating Table Surgical Table

* This table is suitable for general  and orthopaedic operation.

* It has longitudinal moving 300mm function, very conveniment for X-ray examination and C-arm photograph  on diffierent parts of body.

* It adopts famous brand motrors, smooth and slient operation.

* The height adjustment, back section, trendelenburg, lateral adjustment, moving 300mm are all controlled by motors.

* The head  is manual  adjustment and leg section are air spring  adjustment.

* The basement use ABS material and has room for the doctor.

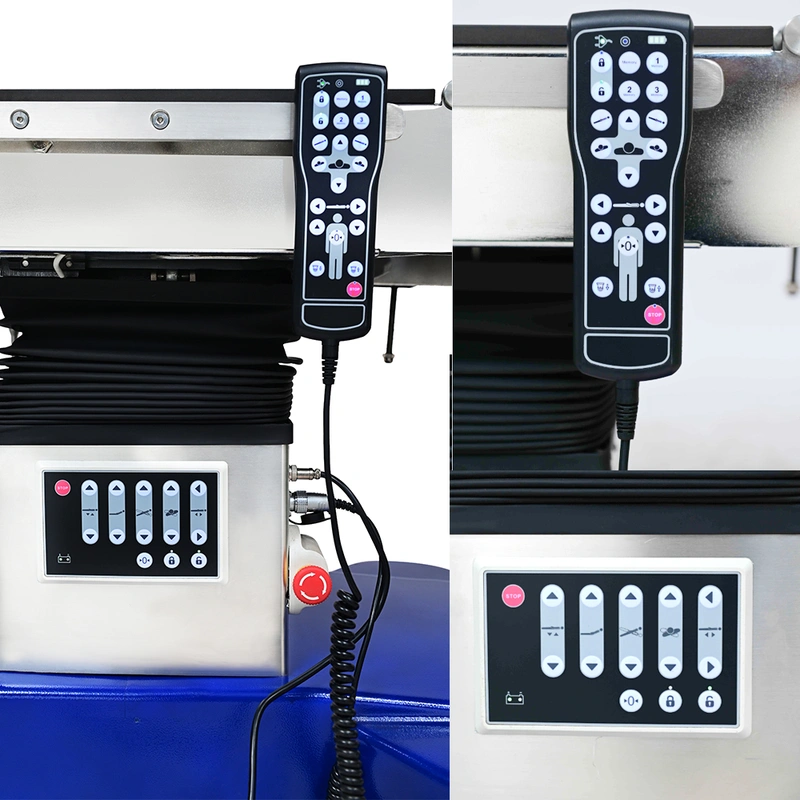

* Double controller system, one is hand remote controller, the other is on column.

* It also has one key 0 position function.

Description

Technical Data:

    Demensions:2050*500mm

    Functions:

    Height Adjustment(electric):680-980mm

    Trendelenburg(electric):±30°

    Lateral Tilt(electric):±20°

    Back Section (electric):+70°/-30°

    Head Board (manual):+45°/-90°

    Leg Board (manual):+15°/-90°

    Table Top Longitudinal Moving(electric):300mm

    Build-in Kidney Elevator(manual):0-120mm


Standard accessories:

    Shoulder supports:2pcs

    Waist supports:2pcs

    Arm supports:2pcs

    Leg supports:2pcs

    Anesthetic screen frame:1pc

    Mattress:1pc

    Hand controller: 1pc

    Power line: 1pc
