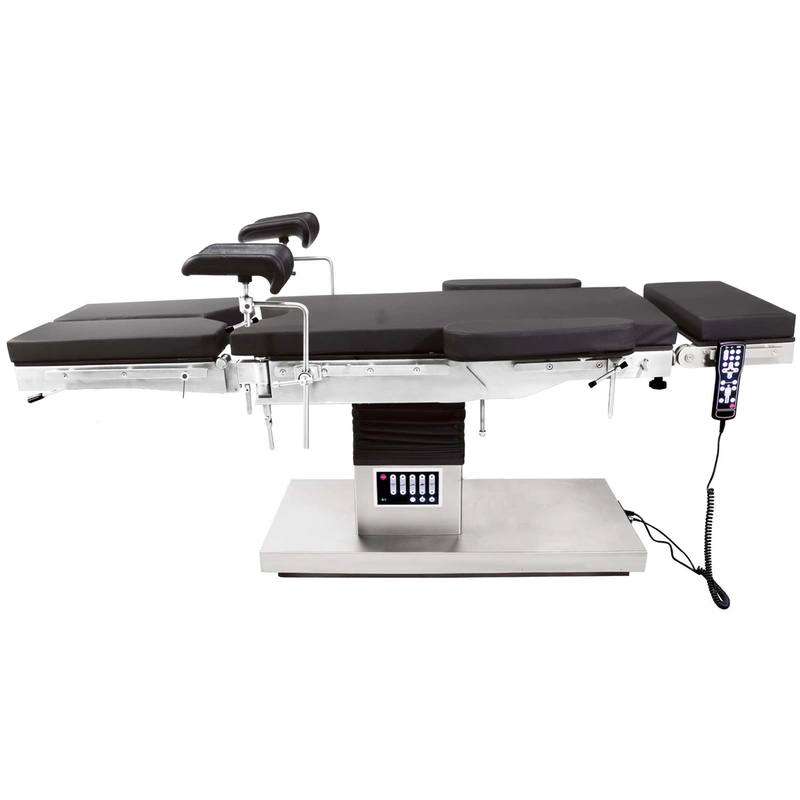

FY503E2 (5 ABS) Electric Operating Table Surgical Table

* FY503E2 is suitable for general and orthopaedic operation.

* It has longitudinal moving 300mm function, very conveniment for X-ray examination and C-arm photograph on diffierent parts of body.

* It adopts famous brand motrors, smooth and slient operation.

* The height adjustment, back section, trendelenburg, lateral adjustment, moving 300mm are all controlled by motors.

* The head is manual adjustment and leg section are air spring adjustment.

* Made of full premium 304 stainless steel.

* Double controller system, one is hand remote controller, the other is on column.

* It also has one key 0 position function.

Technical Data:

Demensions:2100*520mm

Functions:

Height Adjustment(electric)：680-980mm

Trendelenburg(electric)：±30°

Lateral Tilt(electric)：±20°

Back Section (electric)：+70°/-30°

Head Board (manual)：+45°/-90°

Leg Board (manual)：+15°/-90°

Table Top Longitudinal Moving(electric):300mm

Build-in Kidney Elevator(manual)：0-120mm

Standard accessories:

Shoulder supports：2pcs

Waist supports：2pcs

Arm supports：2pcs

Leg supports：2pcs

Anesthetic screen frame：1pc

Mattress：1pc

Hand controller: 1pc

Power line: 1pc
