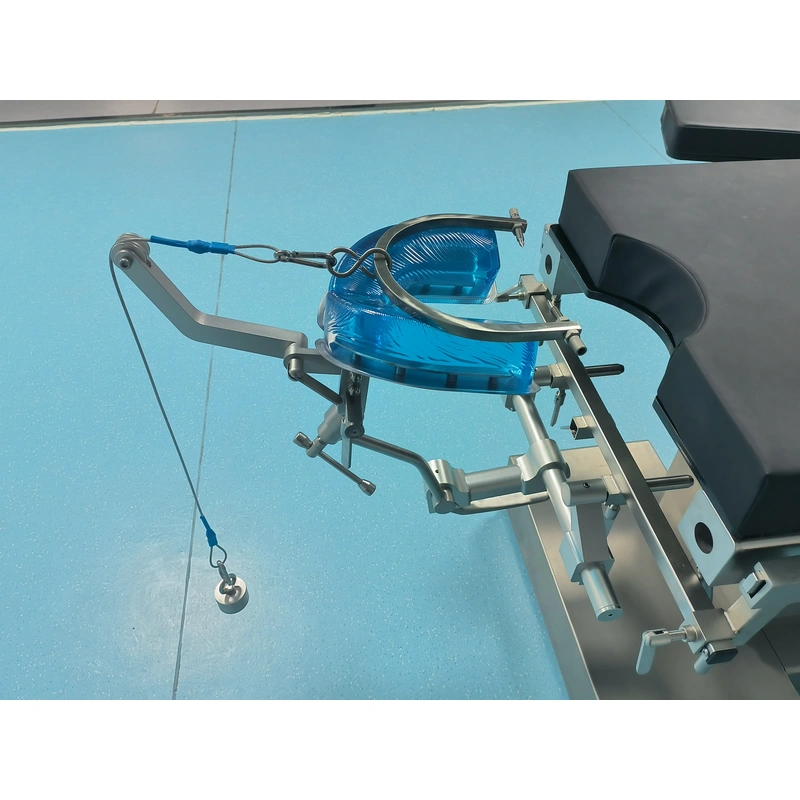

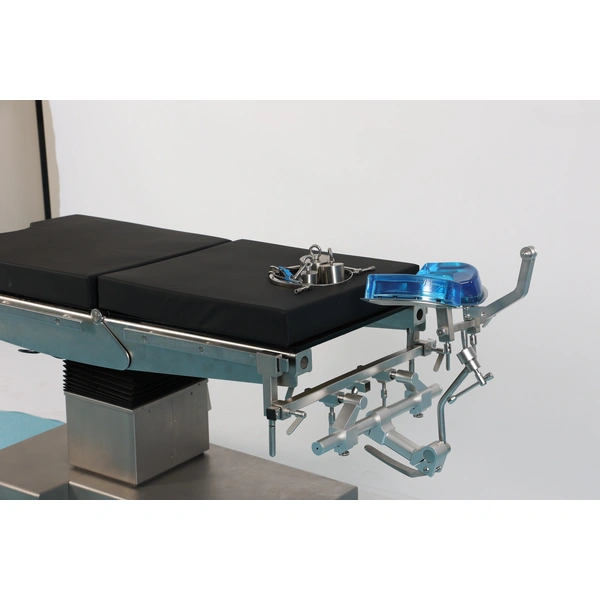

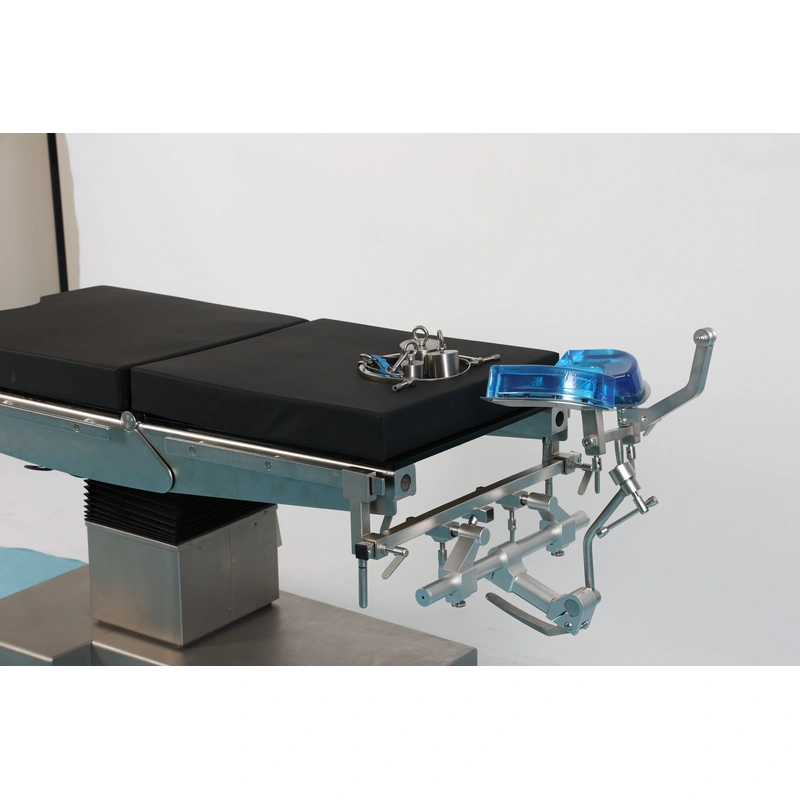

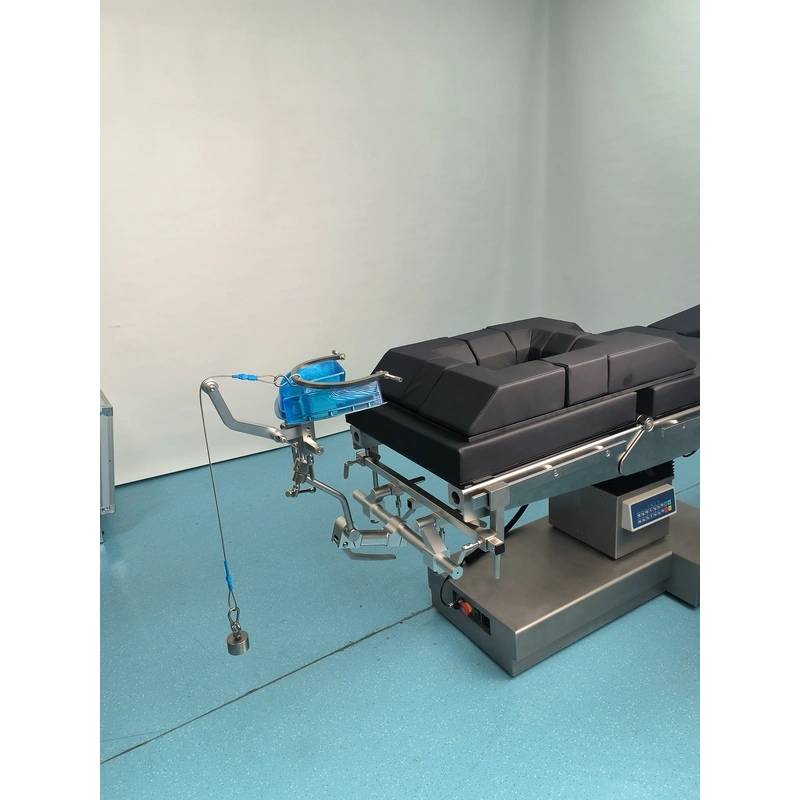

Neck traction frame

Main purpose:

It is used for head support and tractionduring posterior cervical spine surgery.

Product description:

1.There are a variety of size options,matching any brand operating bed,can alsobe customized non-standard operating bed.

2.The neck traction frame can be adjusted arbitrarily according to the needs ofthe operation,and the two-point cranial traction arch is used to fix it in order toobtain the best head position.

3.The main body is made of 304 stainless steel precision machining,durable,toprovide perfect stability for surgery.

4.The surface is treated by electrolysis and oxidation process,which is more wear-resistant and easy to clean and disinfect.

5.The head support can adjust the size distance,is made of polymer gel,softtexture,elastic close to human skin,can relieve local tissue pressure,reducemental pressure,avoid iatrogenic injury.

6.By hanging different weights,the tractive force can be changed.


Description

Specifications:

Forward and backward movement distance   300±10mm

Lifting distance    300±10mm

Head support cushion spacing   0-90mm

Longitudinal rotation   170°±5°

Horizontal rotaton   360°

Installation center distance   75-550mm

Component:

A set of neck traction frame main body

a group of traction brackets

a group of traction ropes

a tracton bow

Three kinds of weights:0.5kg、1kg、2kg

Head frame adapter:

The overall material is 304 stainless steel.It can be applied to different brands of operating table,and the insertion distance of side rail can be adjusted.The maximum width of the operating table(includingthe side rail)is 628mm.

Net weight:   3150g±300g
