Ophthalmology Electric Operating Table Surgical bed Stainless Steel with Manual Power Source Made for X-ray Surgical Operating Table

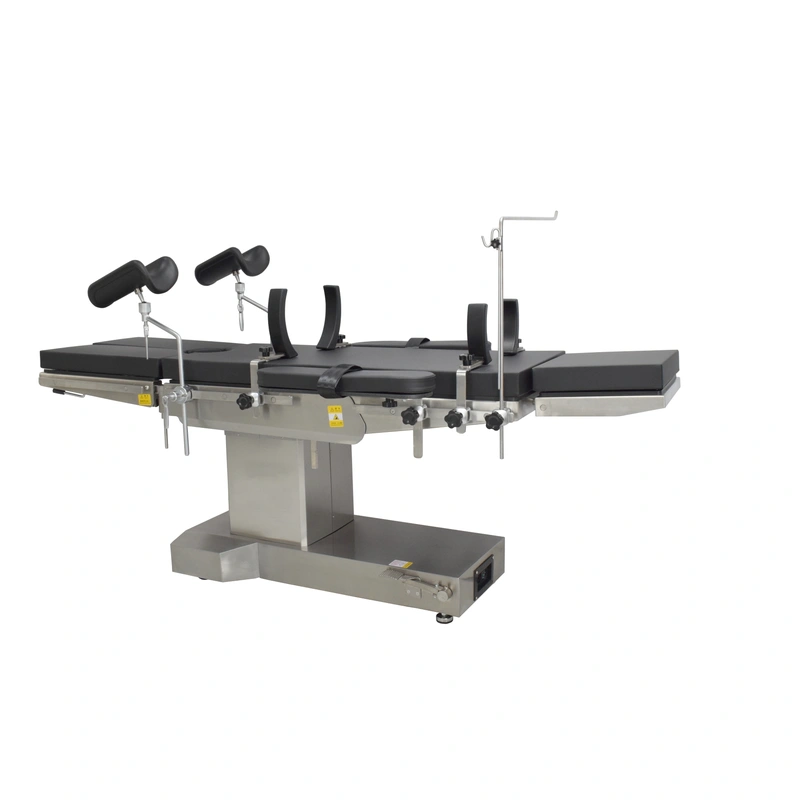

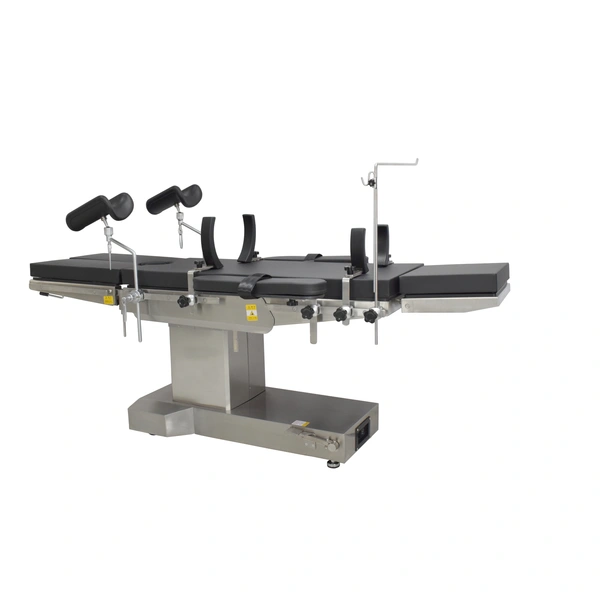

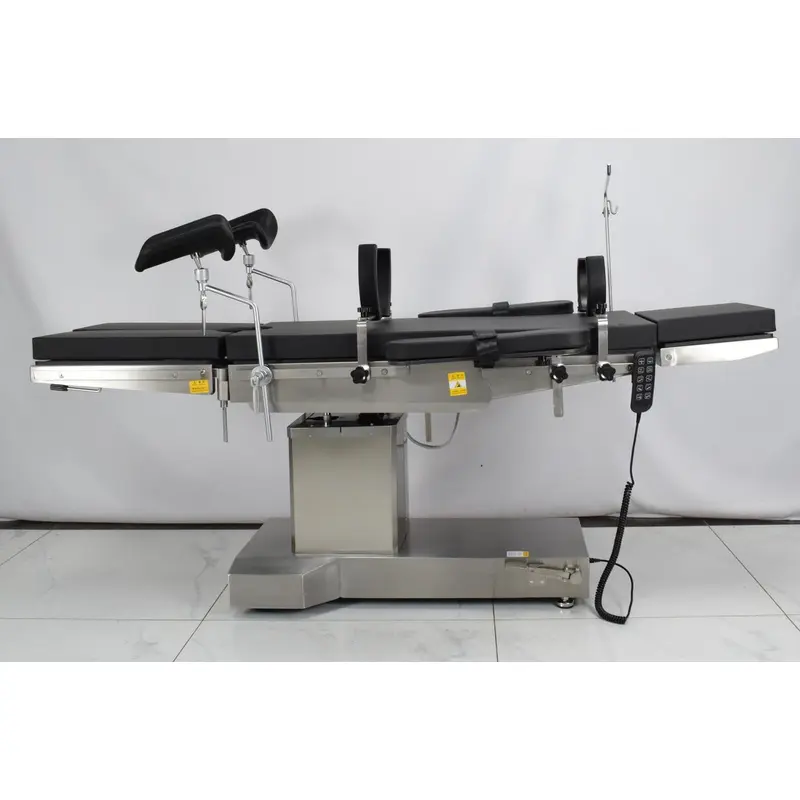

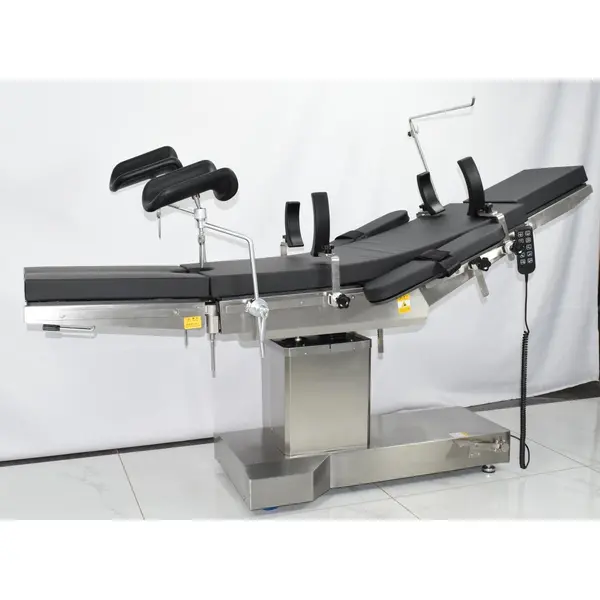

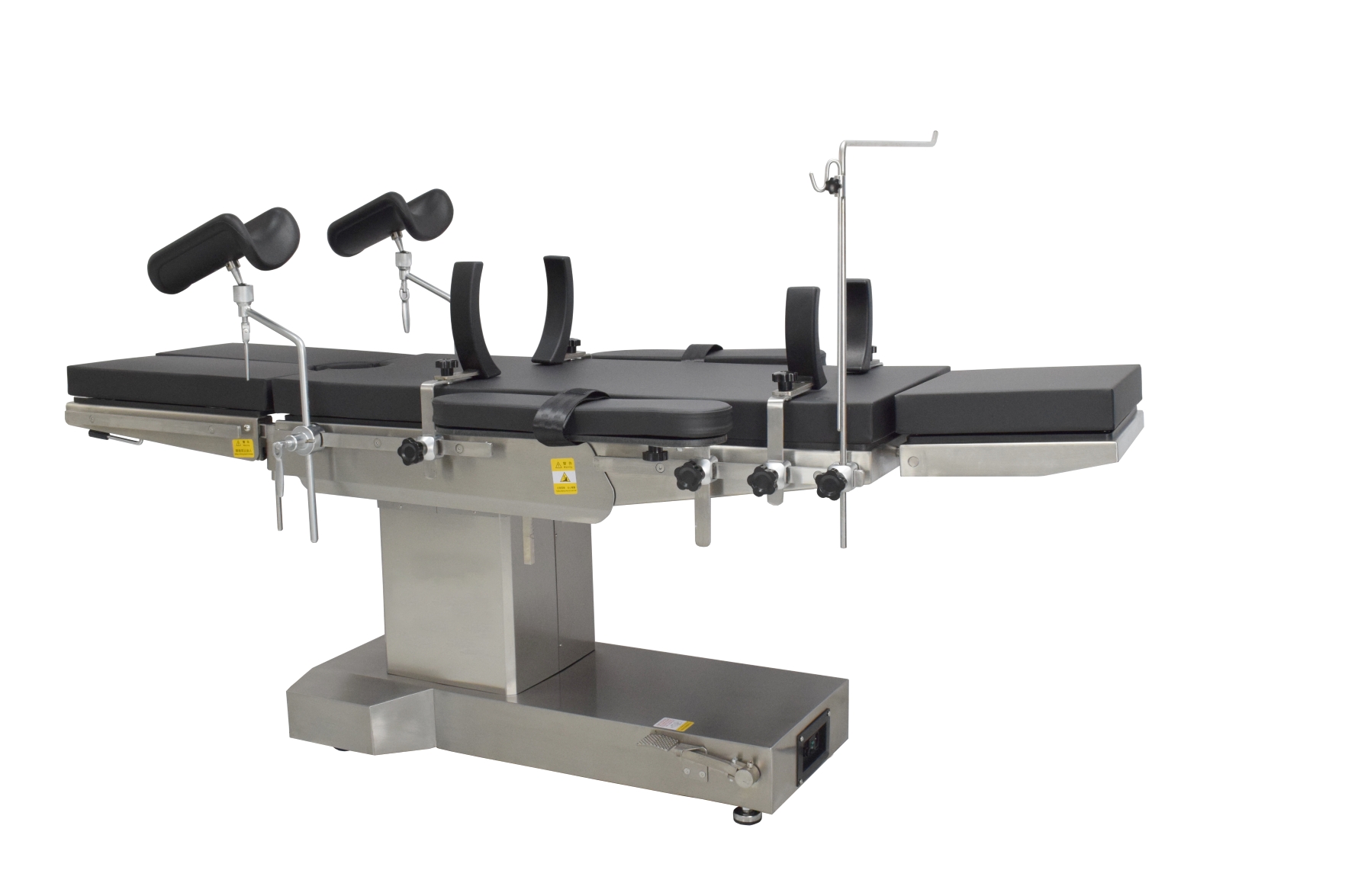

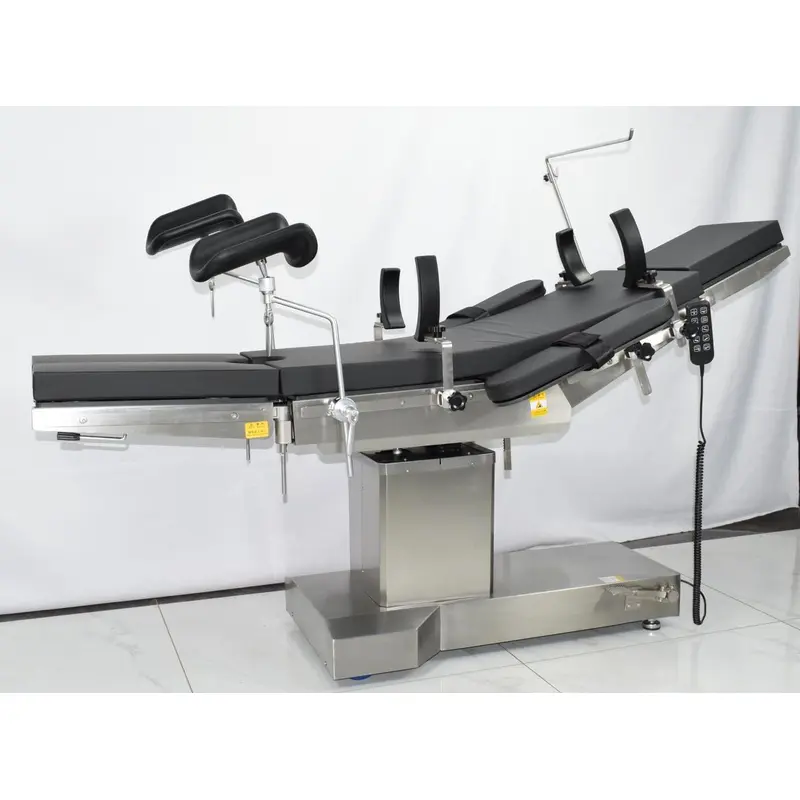

The M800 electric surgical table is used for comprehensive surgeries in thoracic, abdominal, neurosurgery, ophthalmology,
otolaryngology, obstetrics and gynecology, urology, orthopedics, and other fields. It consists of an electric motor system, a
control system, a high-strength X-ray table, a fully 304 stainless steel frame, and a base. The overall material is stainless
steel, with a T-shaped base design that increases the comfort of doctors' feet and is more suitable for the special working
environment of hospitals..
This product has unique advantages:
1. The main position adjustments such as table lifting, forward and backward tilting, left and right tilting, back panel up and
down, and translation are all achieved through button operation and electric push rod transmission.
2. The tabletop can move longitudinally and can be used in conjunction with a C-arm for radiographic examination or imaging. The
countertop is made of high-strength transparent board, and the mattress is made of soft and comfortable sponge pad (optional
memory sponge mattress).
3. The leg board is detachable and can be manually rotated for abduction and folding, making it easy to adjust and highly
convenient for urological surgeries.
4. The handheld controller adopts 24V DC voltage, which is easy to operate, safe and reliable.
Technical Parameter
Table length and width: 2010mm × 500mm ± 50
Minimum and maximum tabletop: 700mm × 1000mm
Maximum angle of table tilt: forward tilt ≥ 25 °, backward tilt ≥ 20 °
Maximum left and right tilt angle of the tabletop: Left tilt ≥ 20 ° Right tilt ≥ 20 °
Leg board adjustment range: downward folding ≥ 90 °, detachable outward abduction 180 °
Backboard adjustment range: Up fold ≥ 75 ° Down fold ≥ 10 °
Head board adjustment range: Up folding ≥ 45 °, down folding ≥ 90 °, detachable
Translation function: Translation ≥ 400mm
Waist bridge lift distance: 120mm
