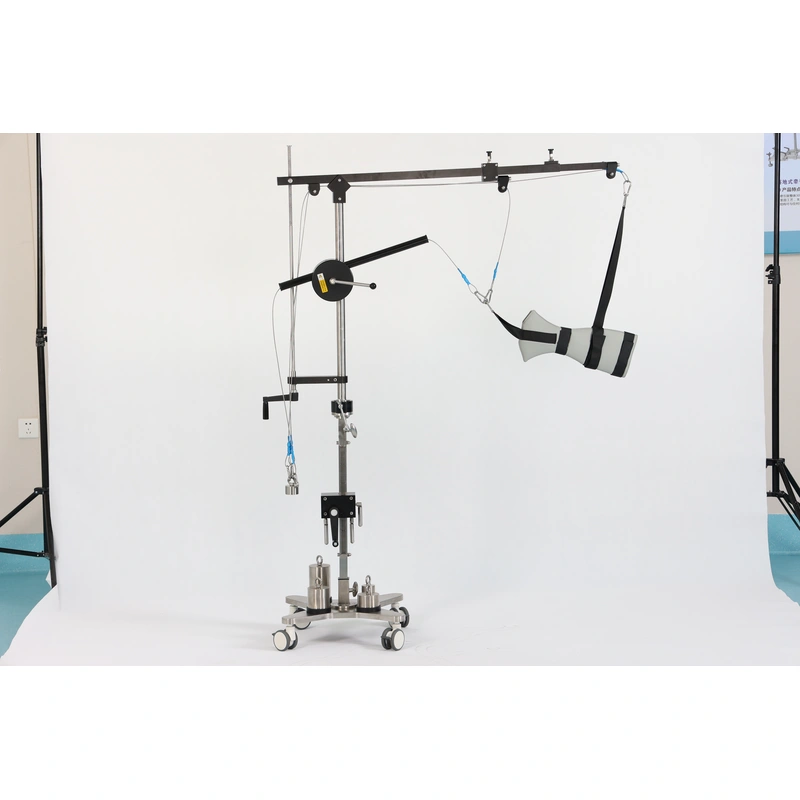

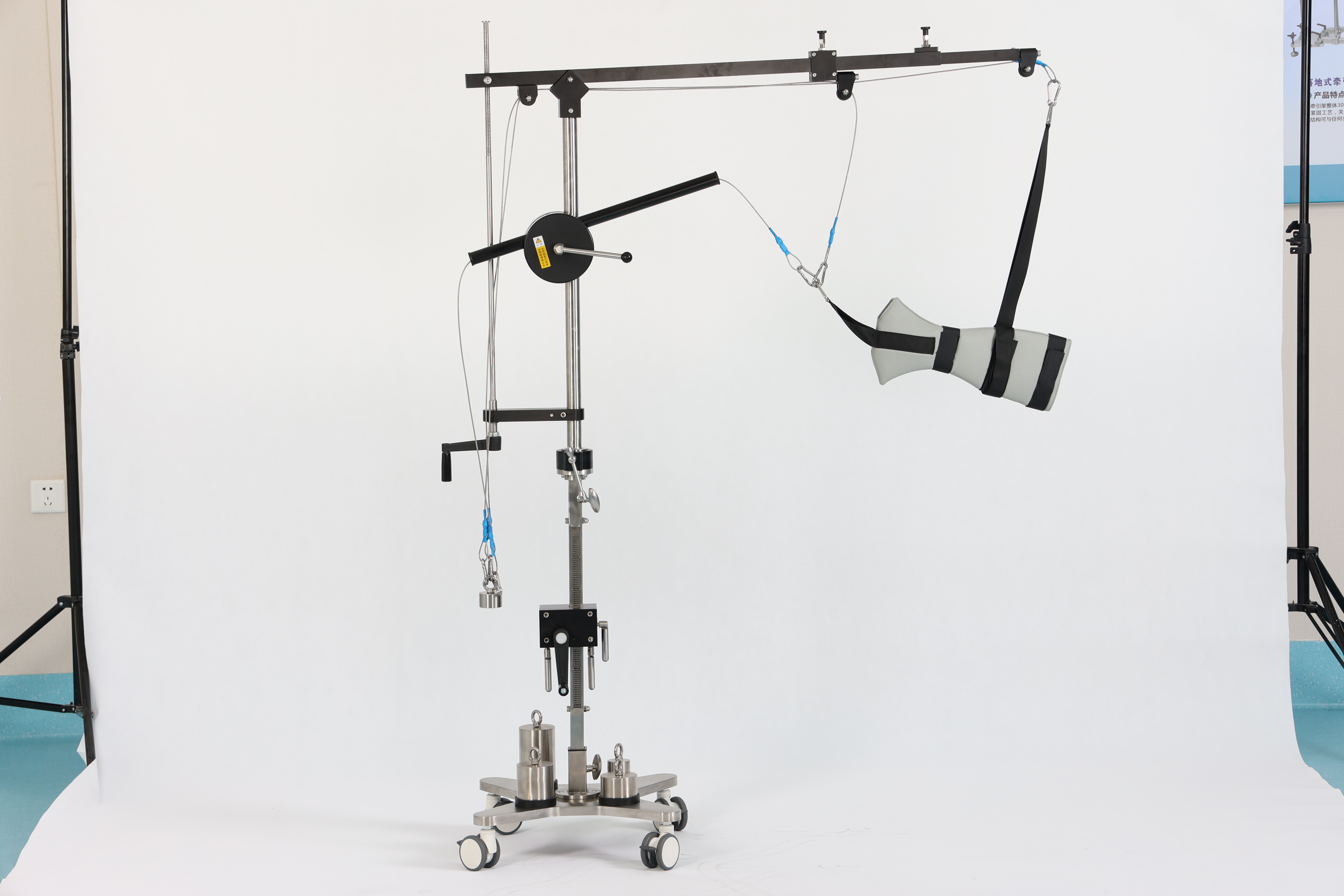

Shoulder Traction Frame

Main purpose:

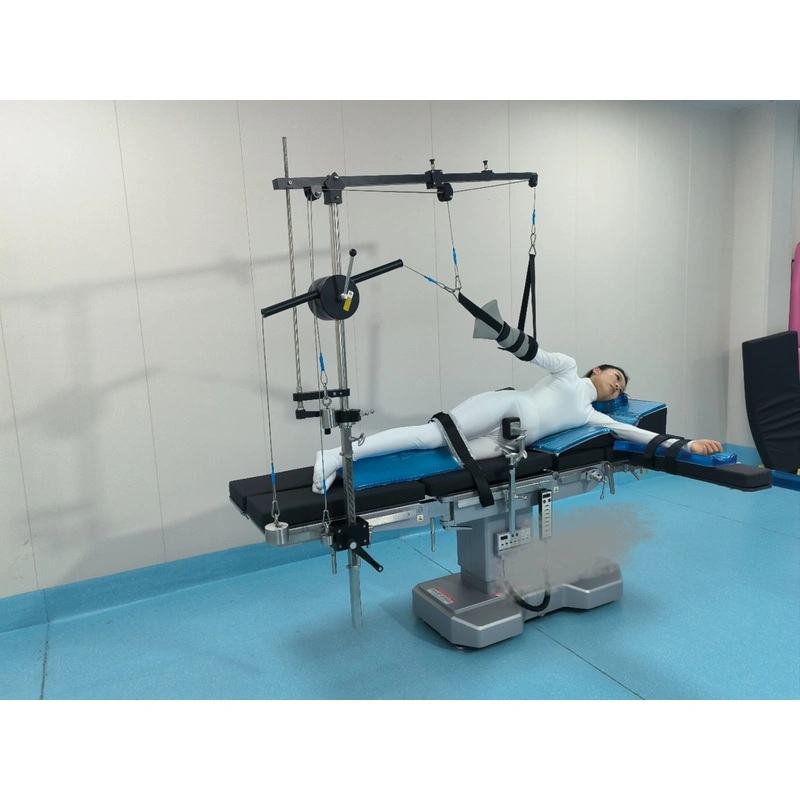

It is a product designed for shoulder traction surgery,which can completeshoulder arthroscopy surgery by tracting the arm.

Product description:

*It is made of 304 stainless steel and aluminum magnesium alloy,so thetraction frame is light in texture and high in strength.The sleeve can becleaned,disinfected and reused.

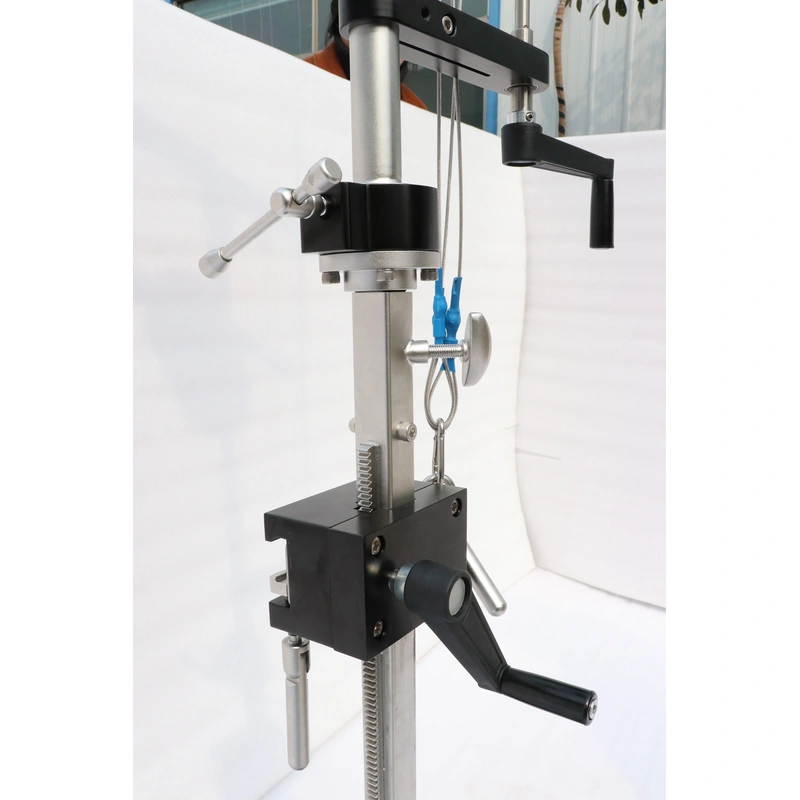

*It is safe and stable,and the additional weight is carried out with weights.The overall height of the traction frame is adjusted by gear type,and theAngle of the transverse bar is adjusted by spiral type.

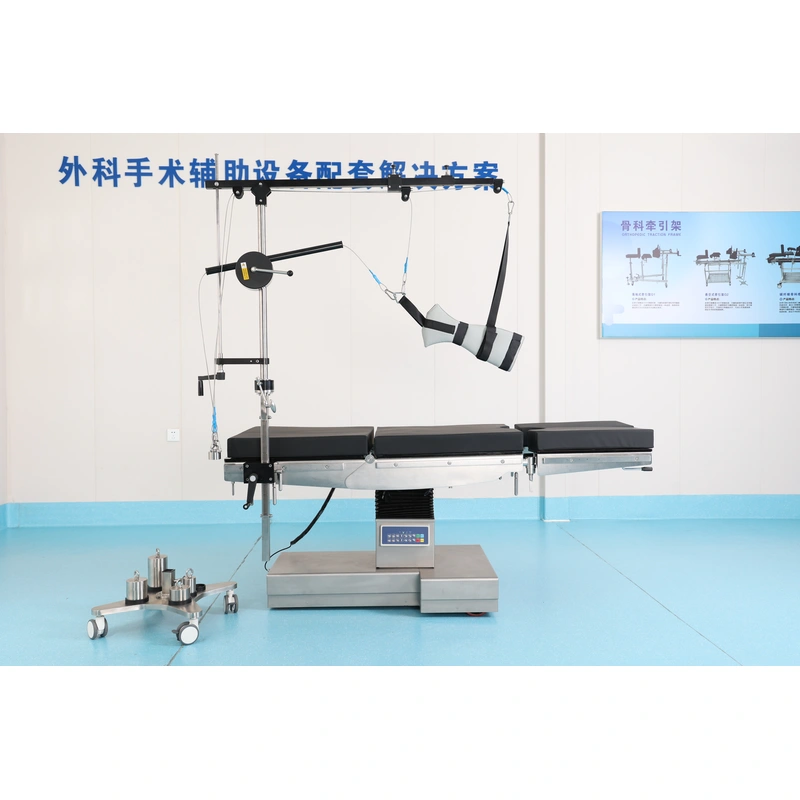

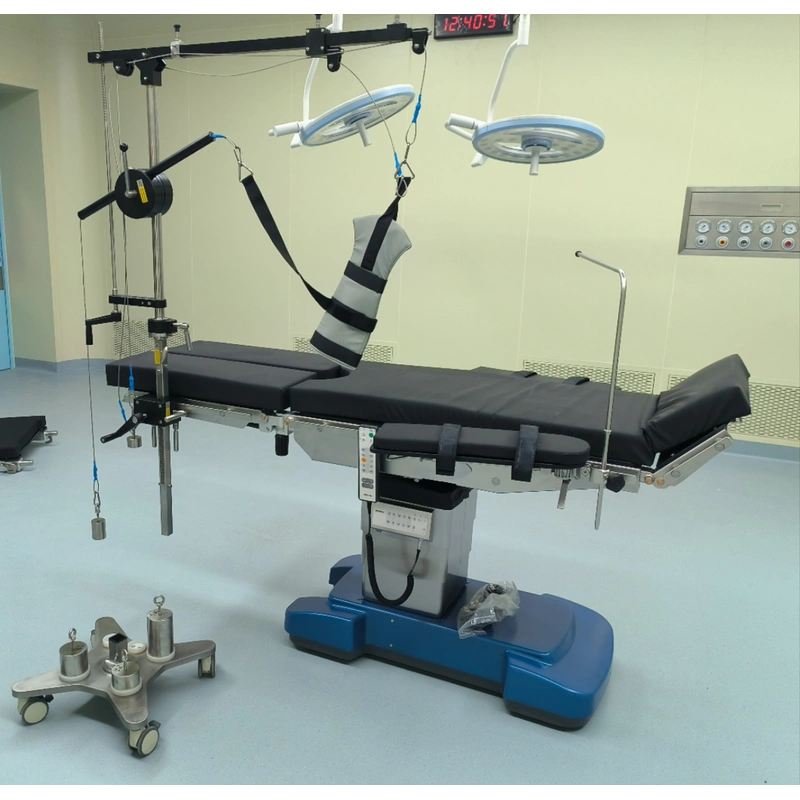

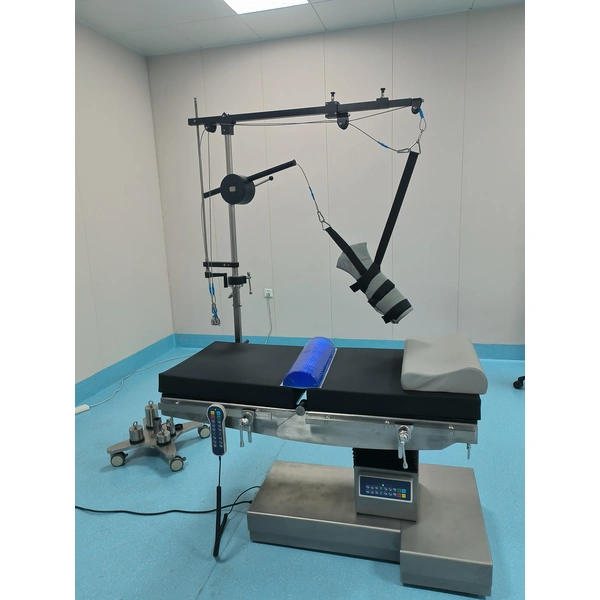

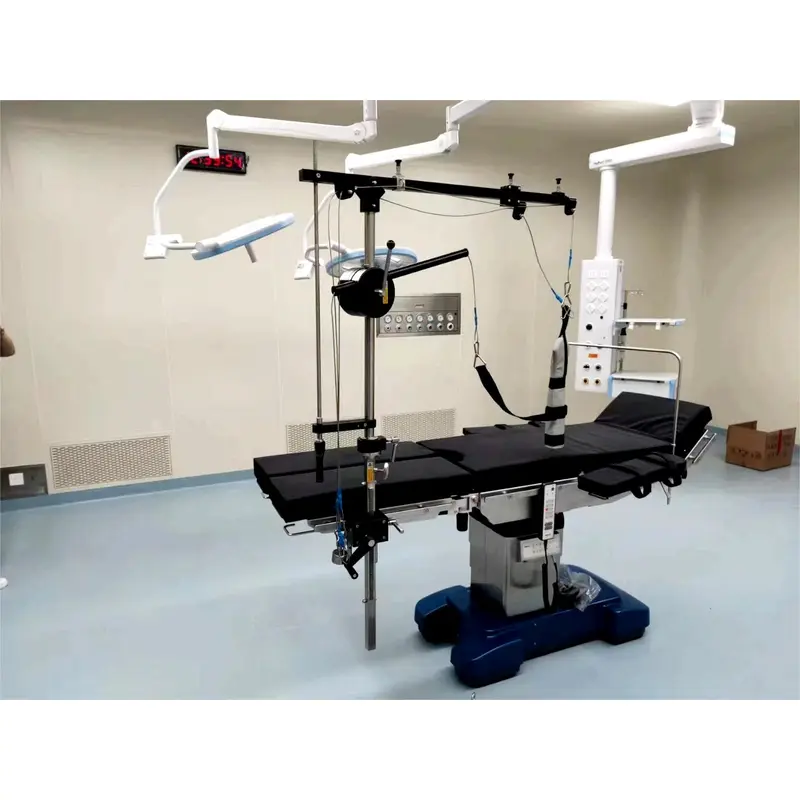

*Equipped with a moving cart,it is easy to store,move and install.*It can be adapted to any surgical bedside track.

Description

Specifications:

Traction height adjustment range   1860mm-2240mm

Length adjustment range   1100mm-1570mm

Angle adjustment range   55°~110°

Traction frame rotation Angle   360°

Equipment weight   25kg

Accessories:

Name   Quantity

Load base   1pc

Main body of traction   1pc

frame

Special traction sleeve   1pc

0.5,1,2,3,5kg   1pcs

tainless steel weights
