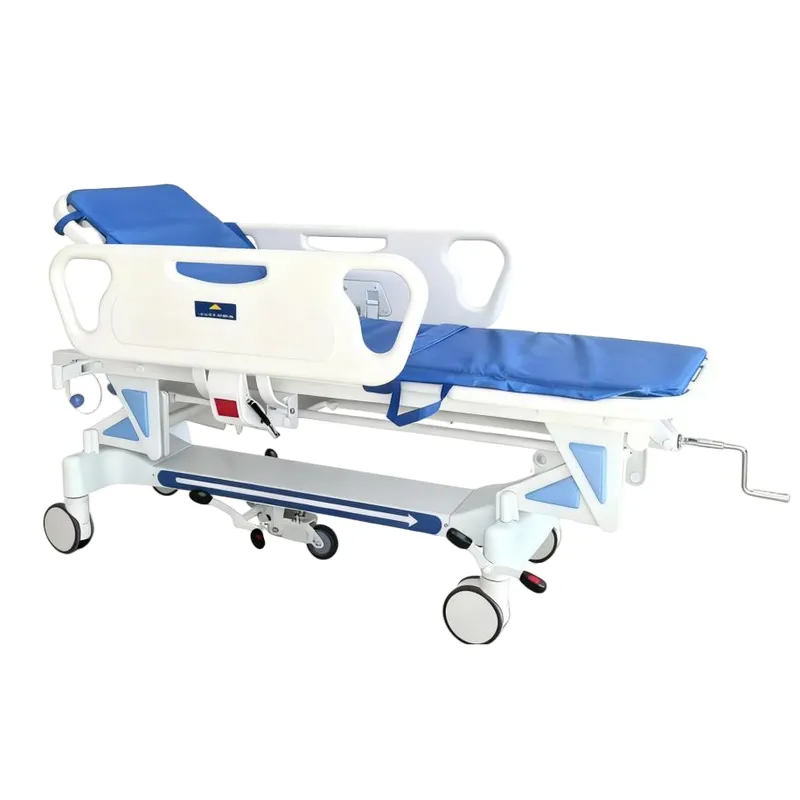

FY-MJPD-1 Patient Stretcher Transfer Trolley

Features：

Patient Stretcher: Turning the hand crank clockwise raises the stretcher body, while turning it counterclockwise lowers the stretcher body.

Clearly marked arrows guide the user during operation.

Central Control Wheel, diameter 150mm, equipped with steering wheels for easy directional control.

Specifications:

External Dimensions:	1930*640mm
Height Adjustment (bed panel to floor):	540-840mm
Bed Surface Net Dimensions:	1900*640mm
Backrest Angle:	0-75°
Damped lifting PP side rails retract beneath the bed panel when lowered, enabling seamless integration with nursing beds or surgical tables.
Net Weight:	75kg
Gross Weight:	105kg
Packaging Dimensions:	1970700630mm
Standard Accessories:	3cm mattress, I.V. pole
