Description:

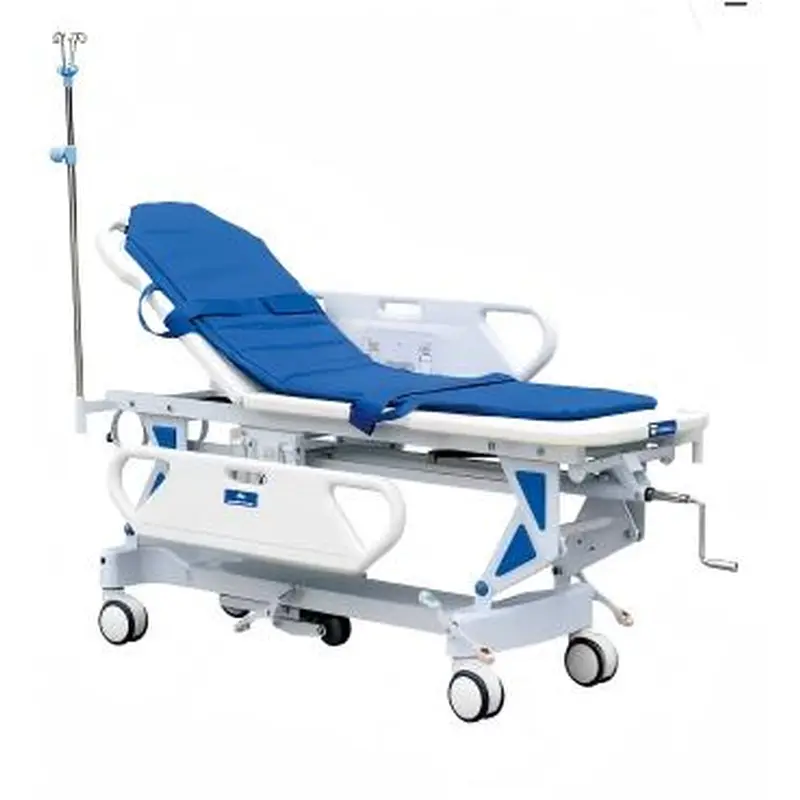

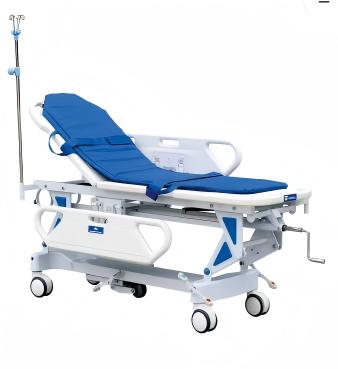

This manual crank hydraulic patient transfer stretcher is a lightweight medical trolley tailored for emergency rescue, ward patient shifting and routine examination transport. Its frame is welded from premium carbon steel with anti-rust electrostatic coating, paired with one-piece blow-molded ABS bed top that delivers flame retardant, corrosion-resistant and high-toughness performance. Split bed top with gas spring buffered backrest and crank-driven height adjustment supports multi-position posture change. It is fitted with gas spring cushioned ABS side rails, head oxygen cylinder holder, dual-section IV pole sockets, central lock casters with guiding wheel, Oxford mattress and safety restraining belts, enabling single-person easy operation and stable patient transport. Full wooden case packaging is adopted for export shipment.
Features:
Sturdy carbon steel welded frame, processed with rust removal and electrostatic resin powder coating to resist corrosion and extend service life.
Integral blow-molded ABS bed top with outstanding flame retardancy, corrosion resistance and toughness; four-corner handles facilitate staff pushing and handling.
Split bed board design, backrest adjusted via gas spring with buffer for effortless single-hand operation, adjustable from 0–70°±5°.
ABS lifting side rails with gas spring buffer when descending, reducing impact noise and prolonging rail lifespan.
Crank height adjustment system with dual-way overload protection and self-lubricating structure, height range 580–880mm.
Emergency auxiliary accessories: head-mounted bracket for 5L oxygen cylinder, diagonal stainless steel telescopic IV pole sockets at both head and foot ends.
Advanced central control braking system with four 150mm foot-lock casters plus central guiding wheel, realizing flexible one-person steering and stable braking.
2cm thick Oxford cloth waterproof mattress, equipped with two safety straps to avoid patient sliding during transport.
Lightweight structure with 250kg maximum safe load, complete solid wooden case export packaging with clear dimension and weight data.
Specification:
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 1930*640*580/880 mm |
| Total length | 1930 mm |
| Bed top width | 640 mm |
| Load & Weight | Maximum Load Capacity | 250 kg |
| Stretcher net weight | 76 KG |
| Packed gross weight | 108 KG |
| Body Frame | Material | High-quality carbon steel, welded construction |
| Surface Treatment | Rust removal + electrostatic resin powder coating |
| Bed Top | Material | ABS engineering plastic, one-piece blow molding |
| Performance | High flame retardancy, corrosion resistance, high toughness |
| Auxiliary Design | Four-corner operation handles, split-type structure |
| Posture Adjustment | Backrest adjustment angle (main) | 0–75° |
| Split bed backrest angle | 0–70°±5° |
| Backrest driving mode | Gas spring control |
| Height adjustment range | 580–880 mm |
| Height adjustment mode | Crank operation, dual-way overload protection & automatic lubrication |
| Side Rails | Material & Buffer | ABS lift-up rails with gas spring buffering during lowering |
| Emergency Accessories | Oxygen cylinder holder | Head section mount, fits 5L oxygen cylinder |
| Infusion pole | Diagonal sockets at head & foot, stainless steel telescopic IV pole |
| Caster & Brake System | Casters | Four 150 mm central locking foot brake casters |
| Steering & Brake | International advanced central control brake system, built-in central guide wheel for single-person operation |
| Patient Protection | Mattress | 2 cm thick Oxford cloth mattress |
| Safety Accessory | 2 anti-fall safety belts |
| Export Packaging | Packaging form | Full wooden case |
| Packaging dimensions | 1980750680 mm |
