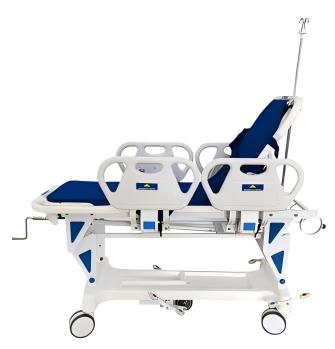

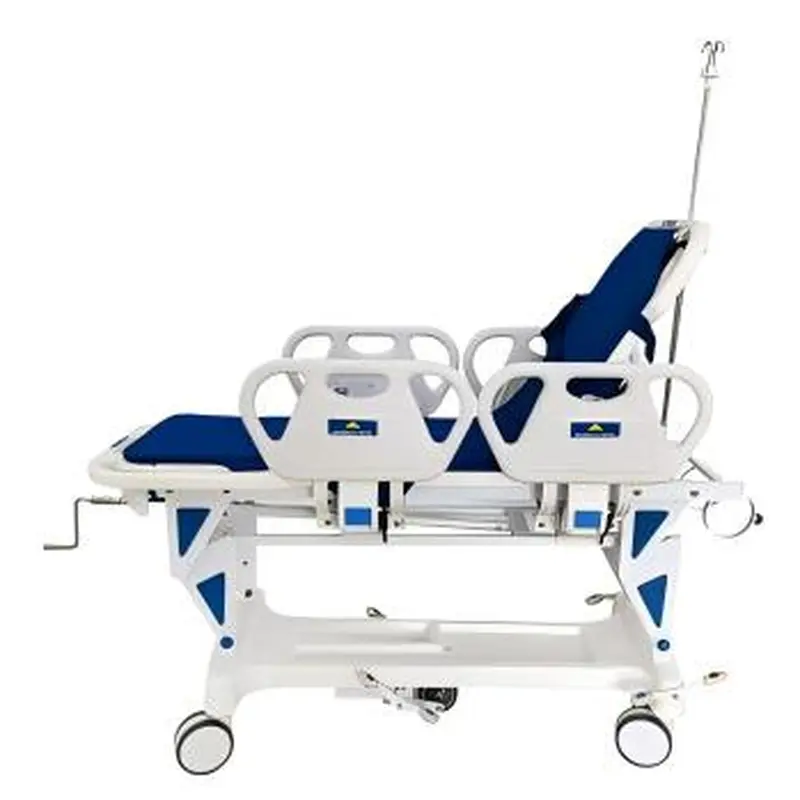

FY-OCT103 Transport Stretcher with Four Small Side Rails (Integrated Plastic Base Cover)

Description:

This crank-adjusted patient transfer stretcher is a lightweight medical trolley widely used for emergency rescue, ward patient transfer and routine clinical examinations. Its frame is welded from high-quality carbon steel with rust removal and electrostatic resin powder coating for anti-corrosion performance. The one-piece blow-molded ABS bed top delivers excellent flame retardancy, corrosion resistance and high toughness, with four-corner handles for convenient pushing by medical staff. It features a split bed platform with gas spring buffered backrest adjustment and hand-crank height lifting fitted with overload protection. Fitted with gas spring cushioned ABS side rails, head oxygen cylinder holder, dual-end infusion pole sockets, central lock casters with central guide wheel, storage ABS base cover, Oxford cloth mattress and anti-fall safety belts, it supports effortless single-person operation and safe patient transport. The unit is packed in a full wooden case for long-distance export transportation.

Features:

• Robust carbon steel welded body with rust removal and electrostatic resin powder coating, offering outstanding anti-rust and anti-corrosion performance.

• Integral blow-molded ABS bed top with high flame retardancy, corrosion resistance and toughness; four-corner handles facilitate easy handling for nursing and emergency crews.

• Split bed top structure, gas spring controlled backrest adjustable at 0–70°±5°, operable with only one hand. Overall backrest angle reaches 0–75° to optimize patient comfort.

• ABS liftable side rails composed of 4 PP small rail panels; gas spring buffer when lowering reduces impact noise and extends service life.

• Crank-driven height adjustment ranging from 580–880 mm, with dual-way overload protection and automatic lubrication for the crank mechanism.

• Multi-functional emergency accessories: head-mounted holder compatible with 5L oxygen cylinder; diagonal sockets at both head and foot ends for stainless steel telescopic IV pole installation.

• Advanced international central brake system with four 150 mm foot-operated central locking casters; built-in central guide wheel enables flexible single-person steering and stable braking.

• Integrated vacuum-formed ABS base cover, durable and aesthetic; it provides storage space for a monitor and spare oxygen cylinder, with built-in drain holes to avoid water pooling.

• 2 cm thick Oxford cloth mattress paired with two safety restraint straps to prevent patient sliding during transit.

• Lightweight design with a maximum load of 250 kg, supplied with full wooden export packaging with complete dimensional and weight data.

Specification:
