Description:

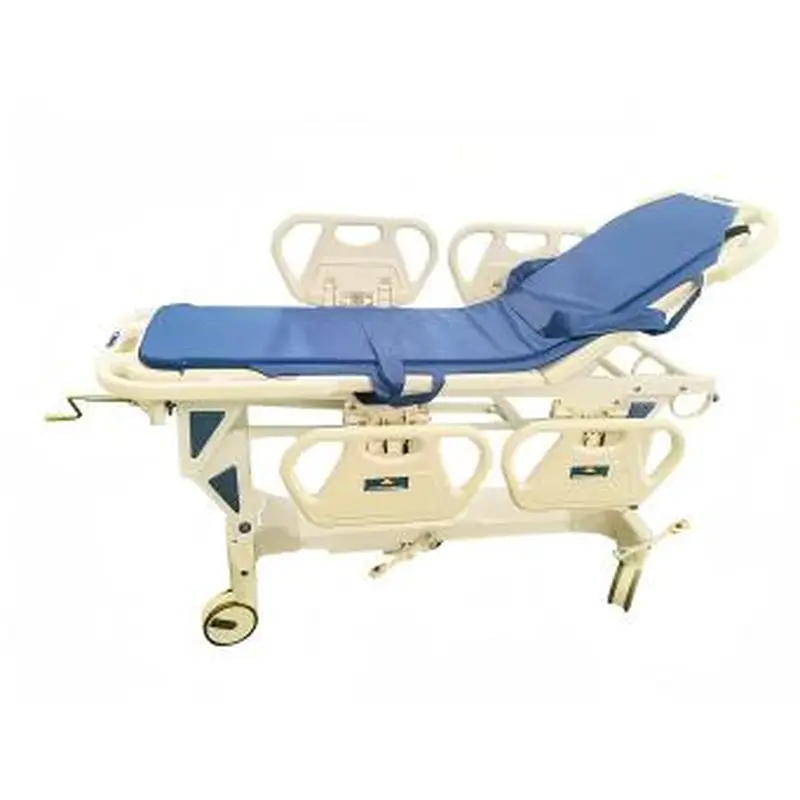

This crank-driven hydraulic patient transfer stretcher is a lightweight medical trolley dedicated to emergency rescue, ward patient transfer and routine clinical examinations. Its frame is welded from high-quality carbon steel with anti-rust electrostatic resin powder coating. The one-piece blow-molded ABS bed top boasts flame retardancy, corrosion resistance and high toughness, with four-corner handles for easy pushing. The split bed platform adopts gas spring buffered backrest adjustment, while the hand crank realizes full height lifting with overload protection. Equipped with gas spring cushioned ABS side rails, head oxygen cylinder holder, dual-end infusion pole sockets, central lock casters with guide wheel, Oxford cloth mattress and anti-fall safety belts, it enables single-person operation and stable patient transportation. The product is packed with full wooden case for safe long-distance export delivery.
Features:
High-quality carbon steel welded frame, processed with rust removal and electrostatic resin powder coating for anti-corrosion performance.
Integral blow-molded ABS bed top with excellent flame retardancy, corrosion resistance and toughness; four-corner auxiliary handles facilitate staff handling.
Split bed top design, gas spring controlled backrest with adjustable angle of 0–70°±5°, operable with one hand effortlessly.
ABS liftable side rails with 4 small PP rail panels, fitted with gas spring buffer during descending to reduce impact noise and extend service life.
Crank height adjustment system with 580–880mm lifting range, built-in dual-way overload protection and automatic lubrication structure.
Emergency supporting accessories: head bracket compatible with 5L oxygen cylinder, diagonal sockets at both head and foot for stainless steel telescopic IV pole installation.
Advanced international central control brake system, four 150mm foot-lock central locking casters plus central guide wheel, realizing flexible single-person steering and reliable braking.
2cm thick Oxford cloth mattress, matched with two safety restraint straps to avoid patient slipping during emergency transport.
Lightweight structure with 250kg maximum load capacity, full solid wooden case export packaging with complete dimension and weight specifications.
Specification:
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 1930640580/880 mm |
| Total length | 1930 mm |
| Bed top width | 640 mm |
| Load & Weight | Maximum Load Capacity | 250 kg |
| Stretcher net weight | 76 KG |
| Packed gross weight | 108 KG |
| Main Body Frame | Material | High-quality carbon steel, welded construction |
| Surface Treatment | Rust removal + electrostatic resin powder coating |
| Bed Top | Material & Craft | ABS engineering plastic, one-piece blow molding |
| Performance | High flame retardancy, corrosion resistance, high toughness |
| Auxiliary Design | Four-corner operation handles, split-type structure |
| Side Rails | Material & Structure | ABS lift-up rails with 4 small PP rail panels |
| Buffer Design | Gas spring buffering when lowering |
| Posture Adjustment | Overall backrest angle range | 0–75° |
| Split bed backrest adjustment | Gas spring control, 0–70°±5° |
| Height adjustment range | 580–880 mm |
| Height adjustment mode | Crank operation with dual-way overload protection & automatic lubrication |
| Emergency Accessories | Oxygen cylinder holder | Head section mount, fits 5L oxygen cylinder |
| Infusion pole | Diagonal sockets at head & foot, stainless steel telescopic type |
| Caster & Brake System | Casters | Four 150 mm central locking foot brake casters |
| Brake System | International advanced central control brake system |
| Auxiliary Wheel | Central guide wheel for single-person easy operation |
| Patient Protection | Mattress | 2 cm thick Oxford cloth mattress |
| Safety Accessories | 2 anti-fall safety straps |
| Export Packaging | Packaging Form | Full wooden case |
| Packaging dimensions | 1980750680 mm |
