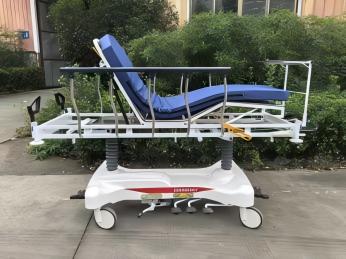

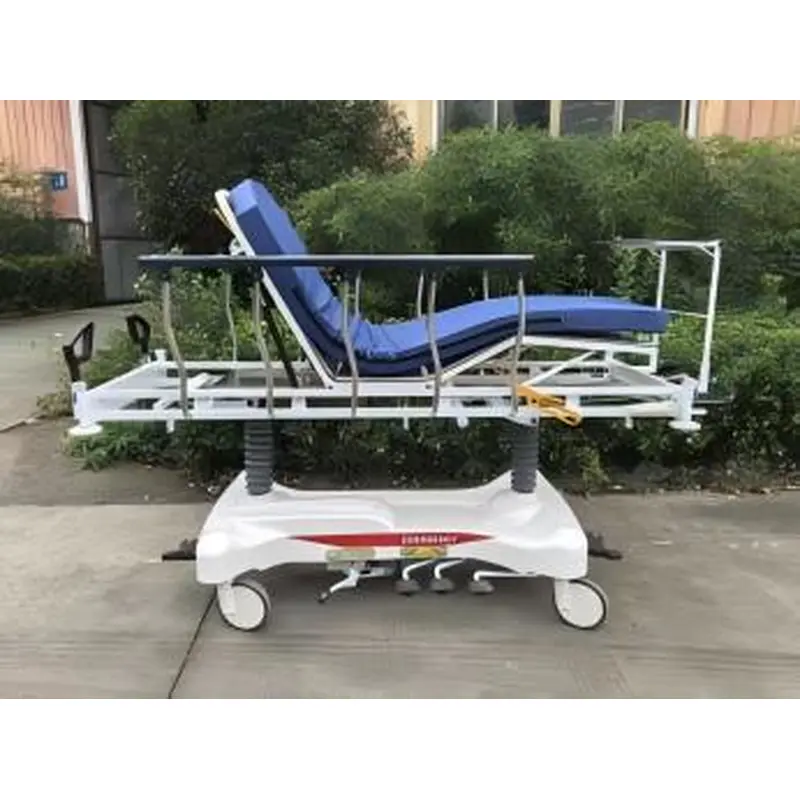

FY-PC101 II Hydraulic Transport Trolley Stretcher

Description：

This hydraulic patient transfer stretcher is a multi-functional hospital trolley designed for emergency rescue, ward transfer and radiological examination. It integrates gas spring backrest adjustment and hydraulic height lifting, with multi-angle posture adjustment including backrest, knee rest and overall Trendelenburg tilt. The X-ray permeable bed platform, stainless steel foldable side rails and independent 5th wheel steering system meet diversified clinical demands. Equipped with oxygen cylinder tray, IV pole holder and waterproof washable mattress, the stretcher delivers stable operation, reliable braking and smooth directional control to guarantee safe patient transport inside medical facilities. It is packed in solid wooden case for long-distance export transportation.

Feature：

• Dual adjustment system: Silent gas springs for backrest lifting, hydraulic cylinders for height adjustment with outstanding stability.

• Compact laminate bed platform: High strength, anti-deformation, X-ray translucent with built-in film cassette holder for radiography use.

• Heavy-duty stainless steel folding side rails, fitted with zinc die-cast locking fittings for solid structure and secure locking.

• Four Ø200mm large casters with full central locking; one-step pedal locks all wheels at the same time for convenient operation.

• Independent bilateral 5th wheel steering: Free steering mode and straight-line transport mode, 105mm pedal ground clearance for good passability, offset transport inertia to keep stable moving direction.

• Built-in under-bed oxygen cylinder tray (max load 10kg) and reserved IV pole holder for emergency auxiliary equipment storage.

• Medical mattress with waterproof surface, zippered outer cover for easy disassembly and cleaning.

• Robust high-quality steel frame to support maximum 300KG safe working load.

• Standard wooden case export packaging with complete weight and dimension specifications.

Specification：
