Description：

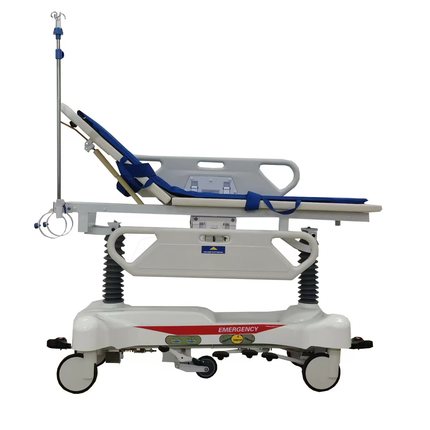

This hydraulic patient transfer stretcher is a multi-purpose medical trolley designed for hospital emergency rescue, ward transfer and full-body radiological examinations. It adopts silent gas springs for backrest angle adjustment and hydraulic cylinders for stable height lifting, supporting multi-angle posture adjustments including backrest, knee rest and overall Trendelenburg/reverse Trendelenburg tilt. The high-strength X-ray permeable compact laminate bed platform, robust stainless steel foldable side rails and independent bilateral 5th wheel steering system satisfy all routine clinical transfer demands. Fitted with collision-proof corners, heavy-duty oxygen cylinder tray, IV pole holder and detachable washable waterproof mattress, the stretcher delivers stable braking, flexible steering and reliable load-bearing capacity to ensure safe patient transport. It is packed in solid wooden case for overseas shipping.
Features：
Dual adjustment mechanism: Silent gas springs drive backrest lifting; hydraulic cylinders control bed height for steady lifting performance.
Compact laminate bed board: High strength, anti-deformation, fully X-ray translucent to support full-body radiography without moving patients.
Heavy-duty stainless steel foldable side rails, matched with zinc die-cast locking fittings for firm structure and tight locking.
Four Ø200mm large transport casters with full central one-step locking system; 70*80mm anti-collision wheels on four corners to avoid impact damage.
Reinforced integrated round tube central brake linkage to boost overall structural strength.
Bilateral independent 5th wheel steering system with 105mm pedal ground clearance for excellent passability, switching freely between free steering and straight-line transport modes to offset moving inertia and maintain stable travel direction.
Built-in under-bed oxygen cylinder tray with upgraded 20kg load capacity, plus reserved IV pole holder for emergency medical accessories.
Medical mattress with waterproof surface, zippered outer cover for easy disassembly, cleaning and replacement.
High-quality steel frame with a maximum safe working load of 320KG, capable of bearing heavy patients.
Standard export wooden case packaging with complete dimension and weight data for logistics arrangement.
Specification：
| Category | Item | Specification |
|---|
| Overall & Bed Size | Overall dimensions | 2120870620/930mm |
| Bed platform length | 1926mm |
| Bed platform width | 620mm |
| Bed platform thickness | 6mm |
| Mattress dimensions | 184060080mm |
| Adjustment Range | Height adjustment range | 620–930mm |
| Backrest adjustment angle | 0–85° |
| Knee rest adjustment angle | 0–40° |
| Overall tilt adjustment range | 0°–18° |
| Load Capacity | Safe Working Load | 320KG |
| Adjustment System | Backrest Adjustment System | Silent gas spring control |
| Height Adjustment System | Hydraulic cylinder drive |
| Bed & Frame | Bed Platform | High-strength compact laminate, X-ray translucent for full-body radiography |
| Frame Material | High-quality steel |
| Folding Side Rails | Material | Stainless steel with zinc die-cast locking fittings |
| Rail length | 1240mm |
| Rail width | 810mm |
| Height above bed surface (raised) | 430mm |
| Caster & Steering System | Casters | Four Ø200mm casters, four-corner 70*80mm anti-collision wheels, one-step full-wheel central locking |
| Central Brake Linkage | Integrated reinforced round tube structure |
| 5th Wheel Steering | Dual-side control pedals, 105mm pedal ground clearance; free steering / straight-line dual transport modes |
| Standard Accessories | Oxygen Cylinder Tray | Under-bed integrated tray, max load 20Kg |
| I.V. Pole Holder | Pre-installed |
| Mattress | Waterproof surface, zippered removable & washable outer cover |
| Wooden Export Packaging | Packaging dimensions | 2220990790mm |
| Empty wooden case weight | 55KG |
| Stretcher net weight | 132KG |
| Total packed weight | 187KG |
