Description：

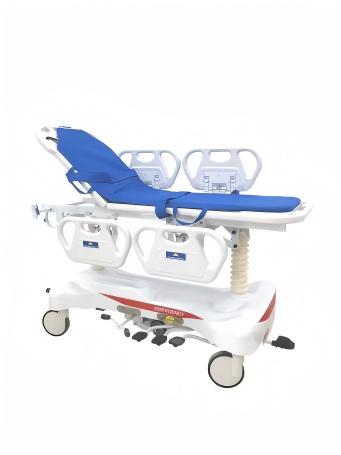

This hydraulic patient transfer stretcher is compact-sized medical transport trolley designed for hospital ward, emergency room and radiology department patient transfer. It adopts silent gas springs for backrest angle adjustment and hydraulic cylinders to realize steady height lifting, supporting backrest recline and overall Trendelenburg/reverse Trendelenburg tilt adjustment. The one-piece molded imported PE bed top and split independent side rails bring smooth appearance and convenient operation. Built with high-quality carbon steel frame and equipped with central locking casters, bilateral 5th wheel steering system, under-bed oxygen cylinder tray and waterproof washable mattress, this stretcher features stable braking, flexible steering and reliable load bearing, meeting daily clinical patient transfer demands. It is packed in wooden case for safe long-distance delivery.
Features:
Dual adjustment system: Silent gas springs control backrest angle; hydraulic cylinders drive bed height adjustment for stable lifting performance.
One-piece molded imported PE bed platform and side rails, sturdy structure with neat appearance. Each side fitted with two separate side rails with individual lifting control for flexible safety protection.
High-quality carbon steel welded main frame, treated with rust removal and electrostatic resin powder coating for anti-corrosion and long service life.
Four Ø200mm large casters with four-corner central locking system; one single pedal can lock all four wheels at the same time for simple operation.
Reinforced integrated round tube central brake linkage to improve overall structural strength.
Bilateral independent 5th wheel steering system: switch between free steering mode and straight-line transport mode to offset moving inertia, keep steady travel direction and boost transfer safety.
Under-bed integrated oxygen cylinder tray with 10KG load capacity, convenient for emergency oxygen supply placement.
Medical mattress with waterproof surface, zippered outer cover for easy disassembly, cleaning and maintenance.
Compact overall dimension, with maximum safe working load up to 300KG, complete wooden case export packaging with clear weight and size data.
Specification:
| Category | Item | Specification |
|---|
| Overall & Bed Size | Overall dimensions | 1930640610/930 mm |
| Bed platform length | 1900 mm |
| Bed platform width | 640 mm |
| Adjustment Range | Height adjustment range | 610–930 mm |
| Backrest adjustment angle | 0–75° |
| Tilt adjustment range | 0°–18° |
| Load Parameter | Safe Working Load | 300 KG |
| Adjustment System | Backrest Adjustment System | Controlled by silent gas springs |
| Height Adjustment System | Driven by hydraulic cylinders for stable performance |
| Bed Top & Side Rails | Material | Imported PE material, one-piece molding |
| Side Rail Structure | Two separate rails per side with independent lifting control |
| Main Frame | Material | High-quality carbon steel, welded construction |
| Surface Treatment | Rust removal + electrostatic resin powder coating |
| Caster & Steering System | Casters | Four Ø200 mm casters, four-corner central one-step locking system |
| Central Brake Linkage | Integrated round tube reinforced structure |
| 5th Wheel Steering | Dual-side control pedals; free movement / straight-line dual modes to counteract transport inertia |
| Standard Accessories | Oxygen Cylinder Tray | Under-bed integrated tray, max load 10 KG |
| Mattress | Waterproof surface, zippered removable & washable outer cover |
| Wooden Export Packaging | Packaging dimensions | 2010830720 mm |
| Net weight of stretcher | 95 KG |
| Gross packed weight | 145 KG |
