Features:
☆ Horizontal square inner chamber + jacket structure, safety, heat preservation, and drying function;
☆ Disc type embedded gear + Electric lock door structure,safety and reliable;
☆ The door seal is pneumatic, single or double door (double door interlock)
☆ Equipped with standard equipment verification interface
☆ Pipeline system for the optimal design, SUS304 pipeline, clamp structure, quick assembly
☆ Control system: HMI man-machine interface,touch screen+PLC
☆ F0 value and temperature time double guarantee sterilization effect, with perfect sterilization records;
☆ With program selection, parameter setting, equipment operation, report processing and traceability Functions;
☆ Three levels of authority management
☆ Multiple safety protection(over-temperature, over-pressure protect)
☆ Sterilization process: fabric, equipment, liquid, BD, pressure testing, custom defined multiple procedures
Main Technical Parameter:
| Parameter | Value | Parameter | Value |
|---|
| Design pressure | -0.1~0.3MPa | Design temperature | 144℃ |
| Working pressure | 0.245MPa | Working temperature | 105~138℃ |
| Vacuum degree | -0.086MPa | Temperature uniformity | ＜+2.0℃ |
| Water supply pressure | 0.1~0.2MPa | Compressed air pressure | 0.4~0.7MPa |
| External steam pressure | 0.3~0.7MPa | Power voltage | Three-phase five-wire, AC 380V 50Hz |
Model&Parameter:
| Model | Overall Dimensions (L×W×H) mm | Chamber Size (L×W×H) mm | Steam Consumption (kg) | Water Consumption (kg) | Power (kw) | Net Weight Single/Double Door (kg) |
|---|
| WF-150DM, WF-150SM | 950×1120×1760 | 700×450×480 | ≤14 | ≤190 | ≤2+18 | 700/750 |
| WF-200DM, WF-200SM | 1175×1120×1760 | 925×450×480 | ≤16 | ≤190 | ≤2+18 | 830/880 |
| WF-250DM, WF-250SM | 1030×1300×1900 | 780×600×600 | ≤18 | ≤200 | ≤2+24 | 890/980 |
| WF-360DM, WF-360SM | 1250×1300×1900 | 1000×600×600 | ≤25 | ≤200 | ≤2+24 | 990/1050 |

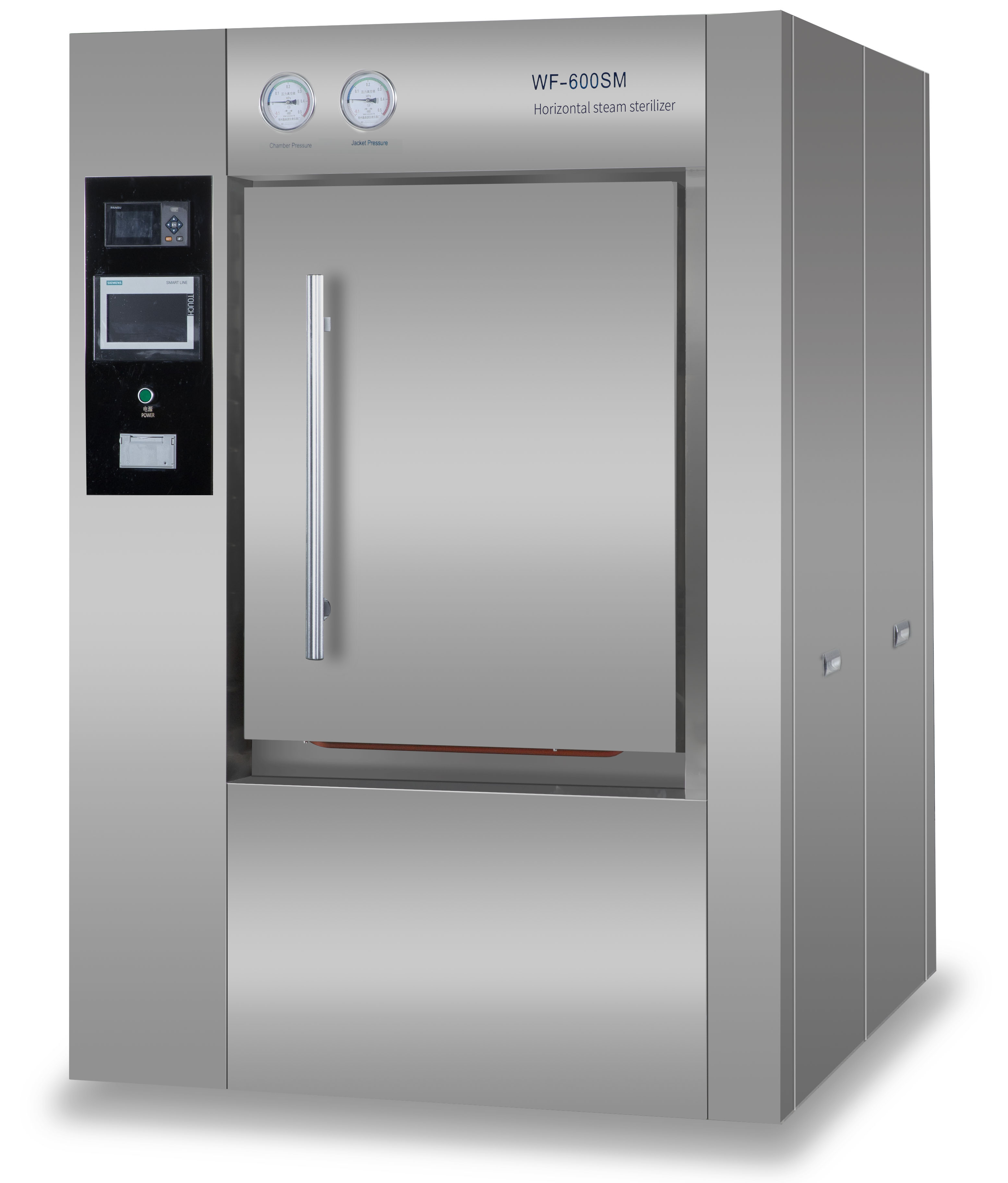

| WF-600DM, WF-600SM | 1440×1310×1900 | 1190×610×910 | ≤30 | ≤210 | ≤3+36 | 1340/1440 |
| WF-800DM, WF-800SM | 1700×1310×1900 | 1450×610×910 | ≤35 | ≤220 | ≤3.5+45 | 1530/1630 |
| WF-1000DM, WF-1000SM | 1500×1440×1950 | 1250×680×1180 | ≤42 | ≤200 | ≤3.5 | 1680/1800 |
| WF-1200DM, WF-1200SM | 1700×1440×1950 | 1450×680×1180 | ≤50 | ≤200 | ≤4.5 | 1800/1950 |
| WF-1500DM, WF-1500SM | 2100×1440×1950 | 1850×680×1180 | ≤60 | ≤200 | ≤4.5 | 2050/2200 |
